Getting Started
12

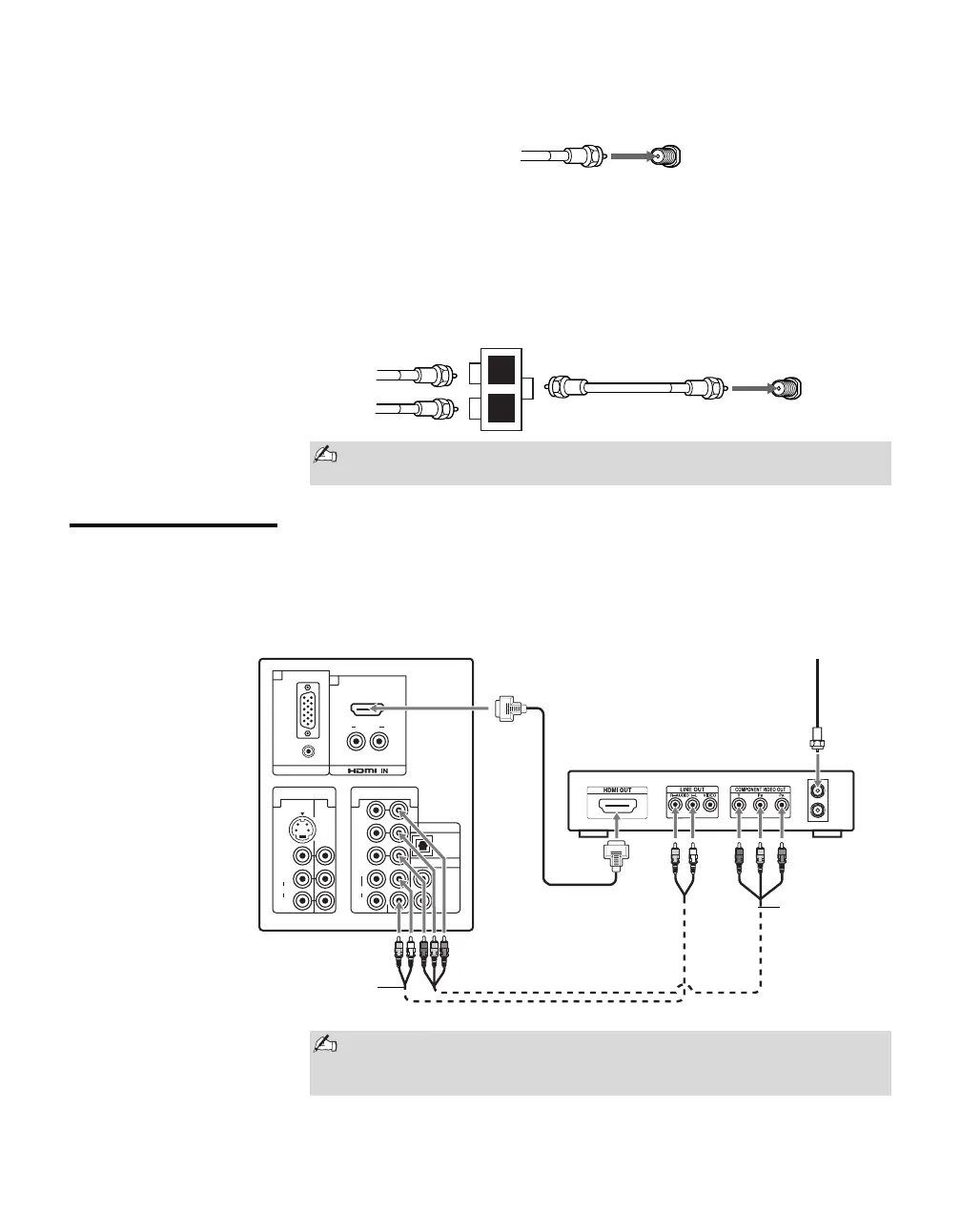

Cable or VHF/UHF (or VHF only)
Cable and VHF/UHF (or VHF only)
If you want to watch both cable and antenna (over-the-air) programming,
you will need to use an optional A-B RF Switch (not supplied) to switch
between the cable and over-the air antenna programming, as shown.
HD Cable Box/
HD Satellite Box
You can also enjoy high definition programming by subscribing to high definition
cable service or high definition satellite service. Make sure you connect these
components to your TV via the HDMI or component video (with audio) input on
the back of your TV.
Be sure to set Cable setting option to Cable On or Cable Off in Setup
settings for the type of input signal you choose (see page 34).
75-ohm coaxial
cable (supplied)
Rear of TV
VHF/UHF input
A
B
A
A/B RF
Switch
Rear of TV
VHF/UHF input
Cable
Antenna
R AUDIO L
VIDEO
AUDIO
RGB
AUDIO
(MONO)
L
R
S VIDEO
AUDIO
L
Y
P
B
R
R
VIDEO IN
PC IN
HD/DVD IN
(1080i/720p/480p/480i)
7
6
134 5
OPTICAL OUT
AUDIO OUT
(VAR/FIX)
OUT
IN
Or connection
with component
cable
Rear of TV
HDMI Connection
Cable/
Satellite
High Definition Cable Box/
High Definition Satellite Box
Audio
cable
Component video (Y, PB, PR) or HDMI connection is necessary to view
480i, 480p, 720p and 1080i formats. Note that this TV displays all
format types of picture in its native resolution of 1,366 dots × 768 lines.
To Next Page
