Chapter 1: Setting Up
4

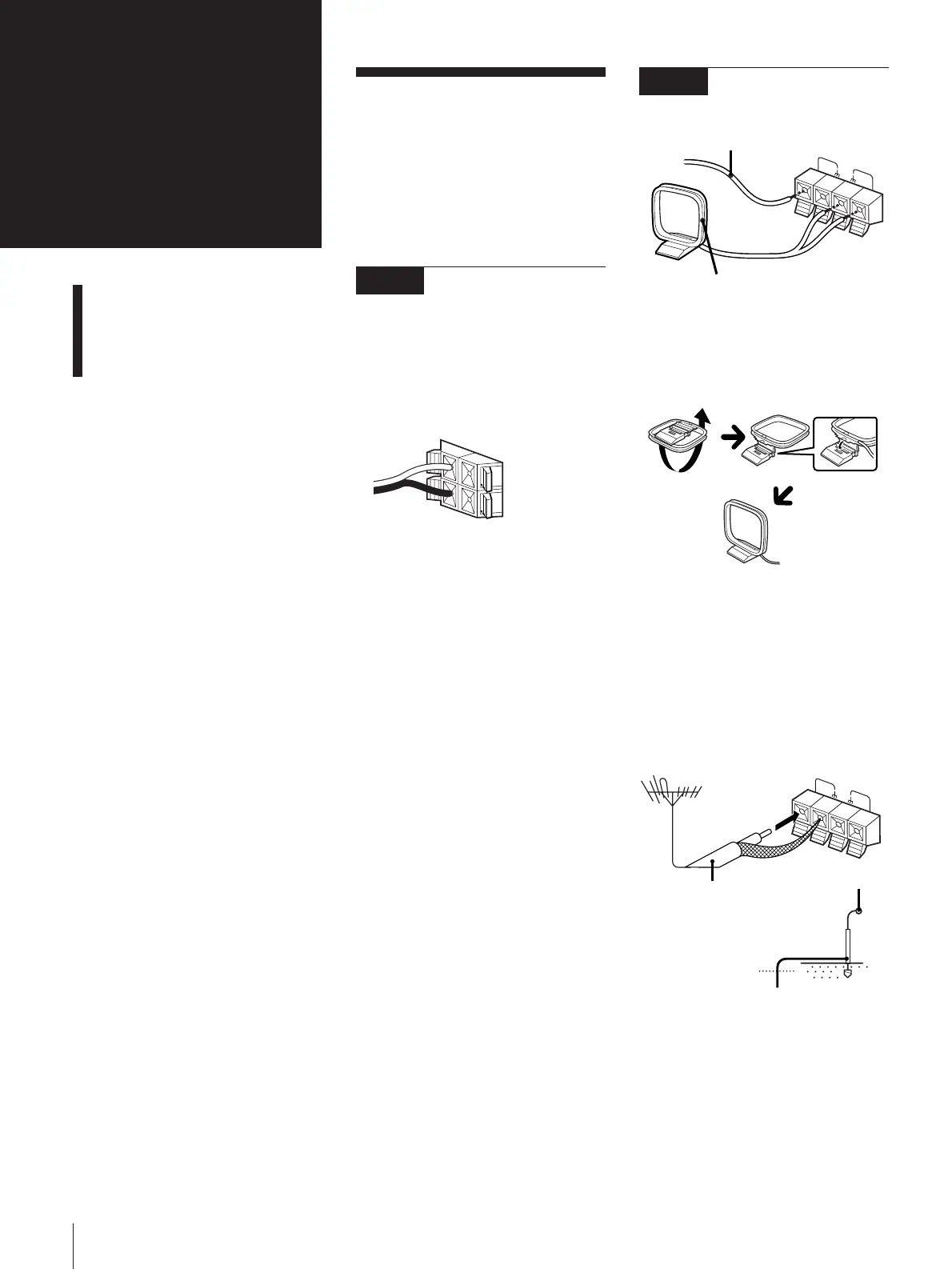

Connecting the
Antennas
AM loop antenna connection
Connect the supplied loop antenna to the
AM and the y terminals.
To improve the FM reception
Connect an external FM antenna to the FM
75Ω and y terminals, using a 75-ohm
coaxial cable.
Important
Ground the external antenna from y
terminal against lightning with the screw
clamp. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
Connecting the
Stereo
Use the illustrations below to connect your
stereo.
If you want to connect any optional
components to the stereo, see “Connecting
Optional Equipment” in Chapter 6.
Connecting the
Speakers
To connect the speakers
Connect the right speaker to the SPEAKER
R connectors and the left speaker to the
SPEAKER L connectors with the red cords
to ‘ and the black cords to ’.
‘
R
L
’
‘
’
STEP 2
STEP 1
FM 75Ω
AM
FM lead antenna* (supplied)
* Note: Extend it horizontally
AM loop antenna (supplied)
Screw clamp
Ground wire
(not supplied)
75-ohm coaxial cable
(not supplied)
