Insulated wire (not supplied)

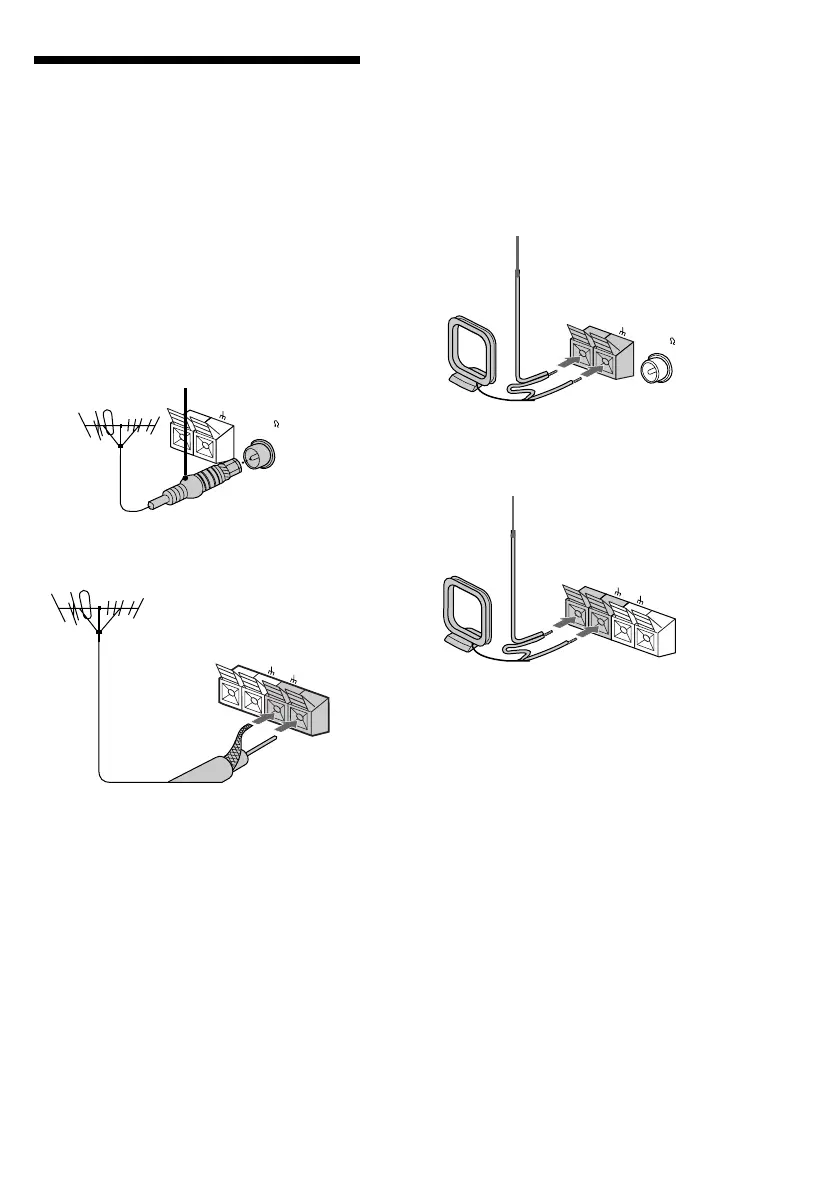

Connecting external
antennas
Connect the external antenna to improve the
reception. Refer to the instructions of each
component.
FM antenna
Connect the optional FM external antenna.
You can also use the TV antenna instead.
Jack type A
Jack type B
AM antenna
Connect a 6- to 15- meter (20- to 50- feet)
insulated wire to the AM antenna terminal.
Leave the supplied AM loop antenna
connected.
Jack type A
Jack type B
AM
FM75
COAXIAL
FM 75Ω
AM
AM
FM75
COAXIAL
AM
Insulated wire (not supplied)
75-ohm coaxial cable
(not supplied)
IEC standard socket
connector (not supplied)
Note
Set up the AM loop antenna as far as possible from
the main unit.
