Sony MKS-8080 Maintenance Manual

1-2 (E)
MKS-8080/8082

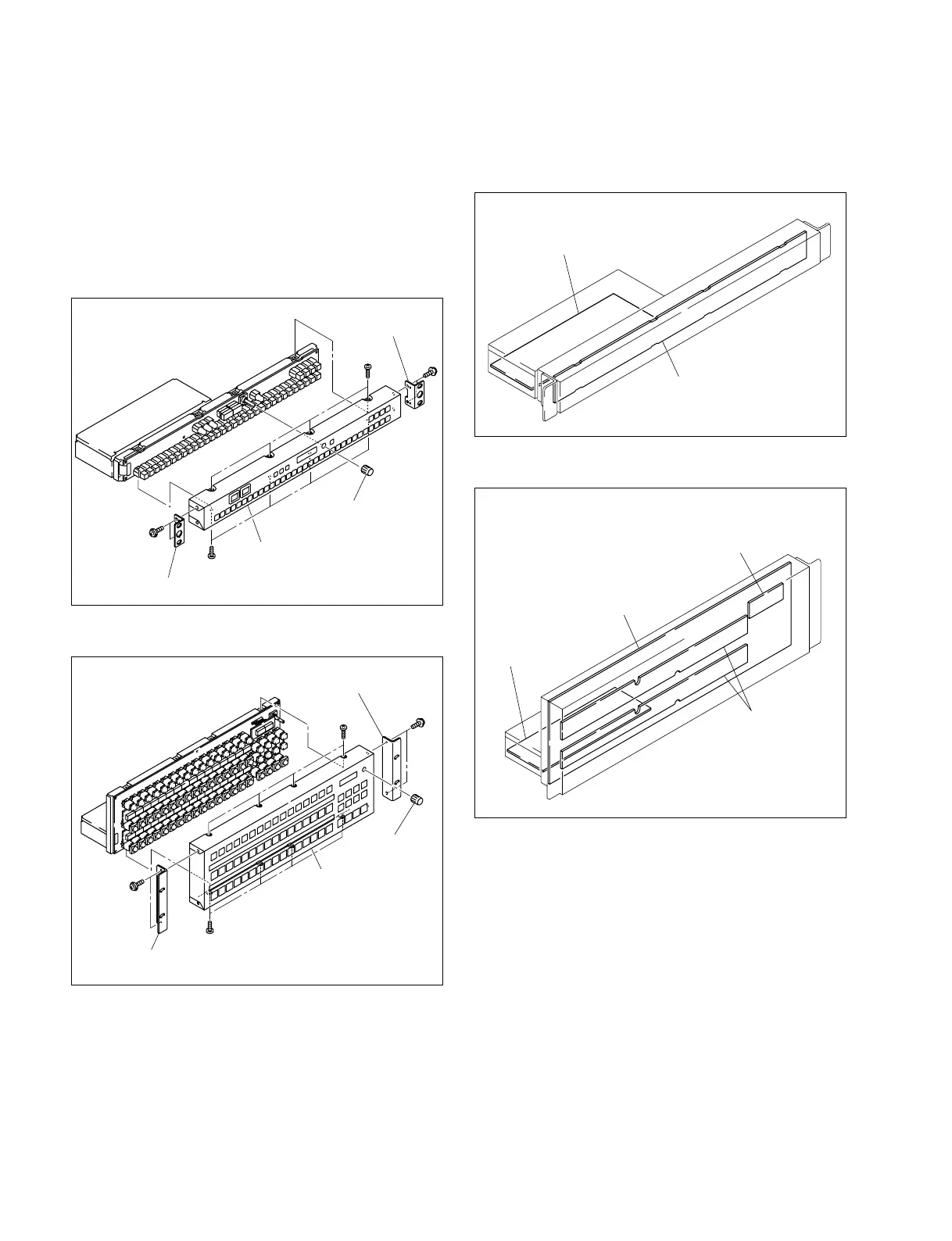

1-1-3. Removal of Front Panel
1. Remove the eight screws (B3 x 6).
2. Remove the four screws (PSW3 x 6), then remove the
rack angles.
3. Remove the volume knob, then remove the front panel.
MKS-8080
MKS-8082
Front panel
Volume knob
Rack angle
PSW
3x6
PSW
3x6
B 3x6
B 3x6
Rack angle
CPU-323/
CPU-449M board
SW-1084 board
DP-357 board
DP-356 boards
1-2. Main Parts Location
MKS-8080
MKS-8082
B 3x6
PSW
3x6
B 3x6
PSW
3x6
Front panel
Volume knob
Rack angle
Rack angle
CPU-323 board
SW-1091 board
**
**
* S/N 10001 to 14219: CPU-323 board
S/N 14220 and Higher: CPU-449M board
**
**
* S/N 10001 to 11206: CPU-323 board
S/N 11207 and Higher: CPU-449M board
