2-2
MKS-8080/8082
CPU Box
D
A
C
B
E
6
8
7
4
1
3
11
PSW 3x6
B
3x6
PSW 3x6
PSW 3x6
PSW 3x6
PSW 3x6
B 3x8
BVTP 3x10
TO/FROM FRONT PANEL
2
9
5
10

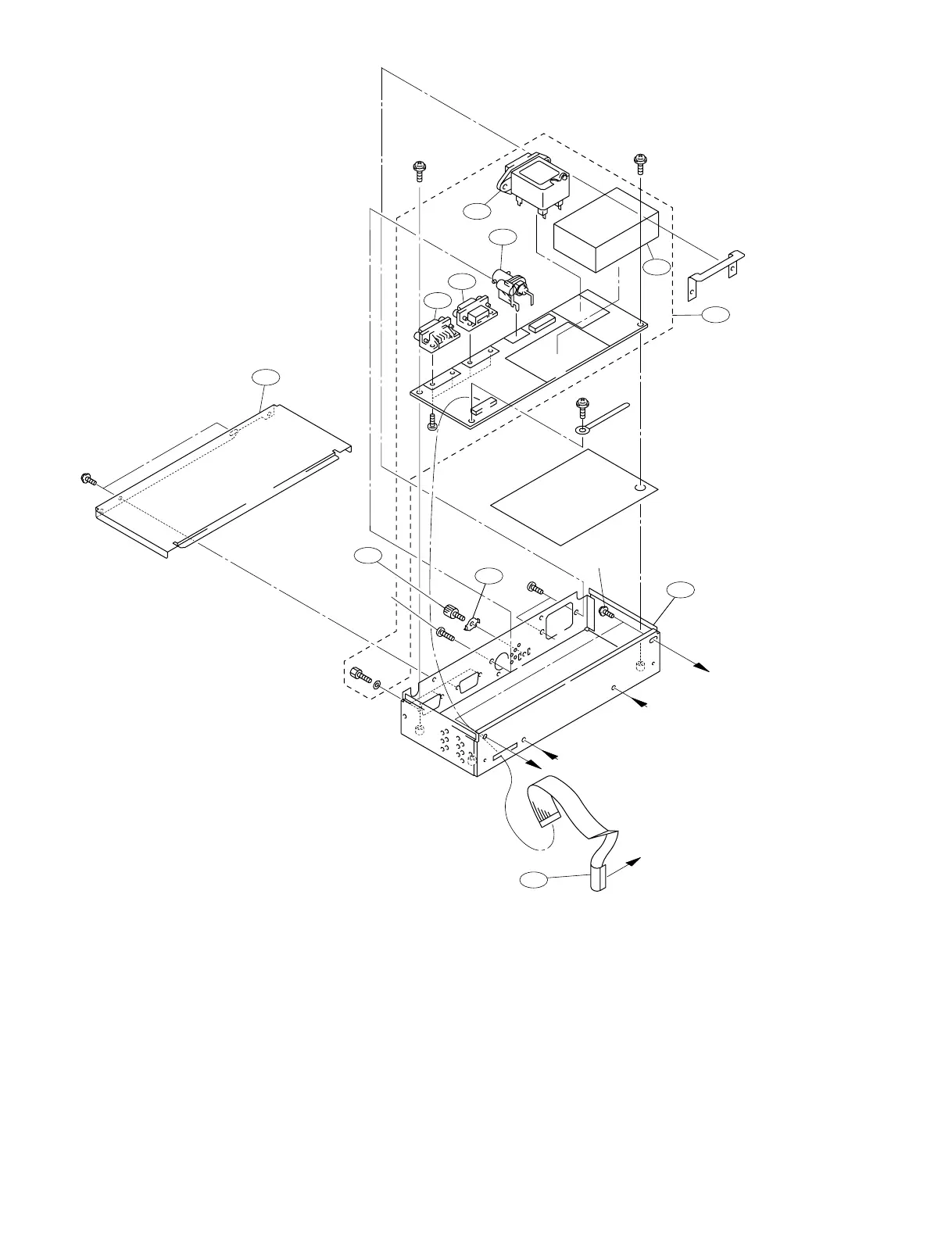

2-2. Exploded Views
No. Part No. SP Description
1 A-1842-452-A s MOUNTED CIRCUIT BOARD, CPU-449M
2 X-2068-004-0 s TERMINAL ASSY
3
!
1-468-486-11 s REGULATOR, SWITCHING (KWS15-5)
(CPU-323 Board No,suffix:-12,-13)
!
1-468-953-13 s REGULATOR, SWITCHING (YAS1005E)
(CPU-323 Board No,suffix:-14,-15)
(CPU-449M Board No,suffix:-11)
4 1-695-038-11 s CONNECTOR ASSY,BNC 1P
5 1-757-119-11 o CABLE, FLEXIBLE FLAT (36 CORE)
6 1-766-174-11 o CONNECTOR, SQUARE TYPE (D-SUB)
7 1-779-059-11 o PIN, CONNECTOR (PC BOARD) 9P
8
!
1-794-141-11 s INLET (WITH NOISE FILTER)
9 2-068-008-00 s WASHER
10 3-204-398-02 o CHASSIS (2ND)
11 3-204-404-04 o PLATE (2ND), TOP
7-682-548-04 s SCREW +B3X8
7-682-947-01 s SCREW +PSW 3X6
7-685-647-79 s SCREW +BVTP3X10
