Connecting to a TV (viewing only)
Connecting to a TV (viewing only)

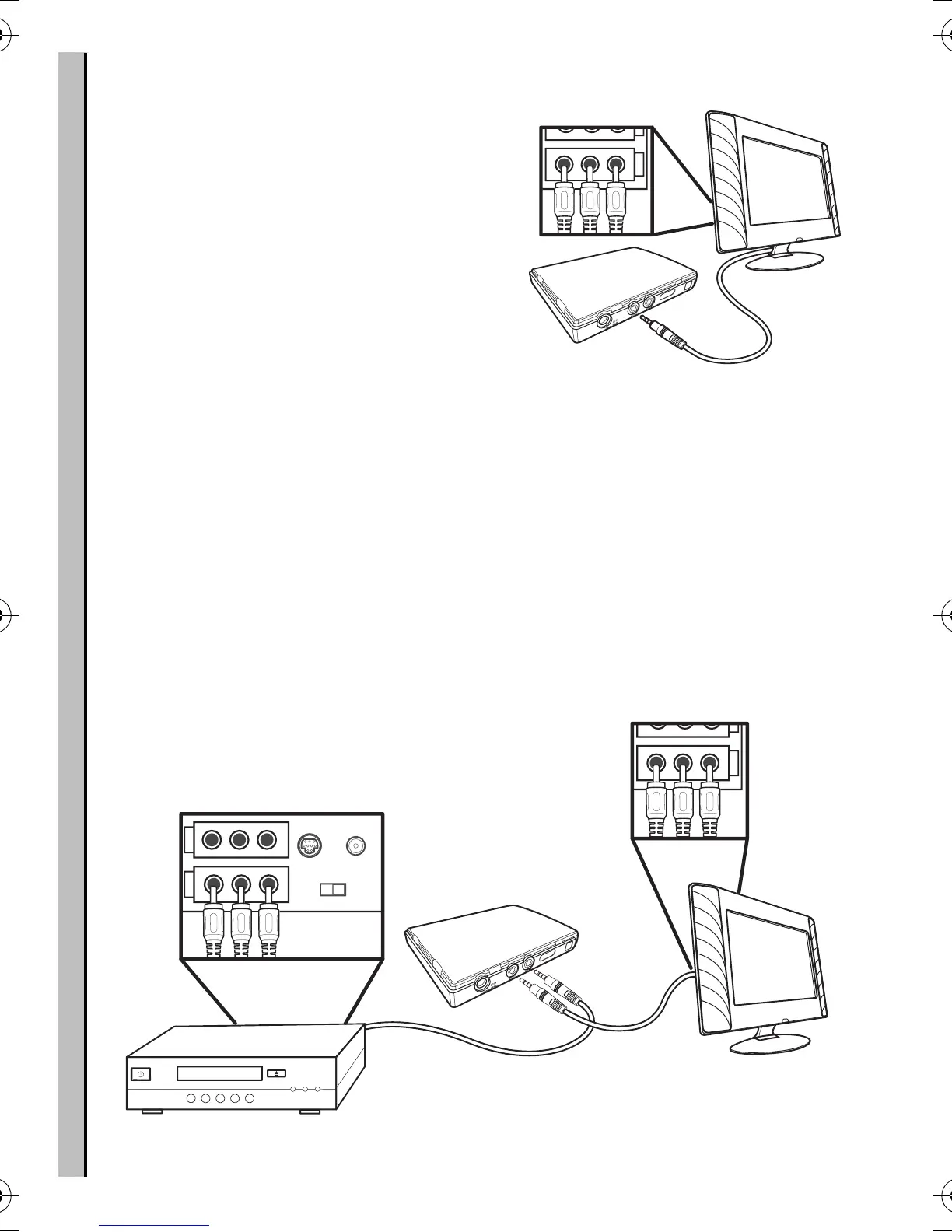

Connect the A/V connectors (red,
white, and yellow) of the A/V cable,
to the corresponding input connec-
tors on the TV. Connect the other
end to the AV Out socket at the
back of the recorder.
Connecting to a TV, DVD player, VCR or cam-
corder (recording)
Connect the A/V connectors (red, white, and yellow) of the A/V
cable to the corresponding output connectors on the TV set, DVD
player, VCR, or camcorder. Connect the other end to the AV In
socket at the back of the recorder. Connect the second A/V cable
to the AV Out socket as described in the previous section.
I
N
I
N
O
U
T
ANTENNA IN
S-VIDEO
CHANNEL
34
I
N
Notes:
