BDP-BX38/280/S380/S383

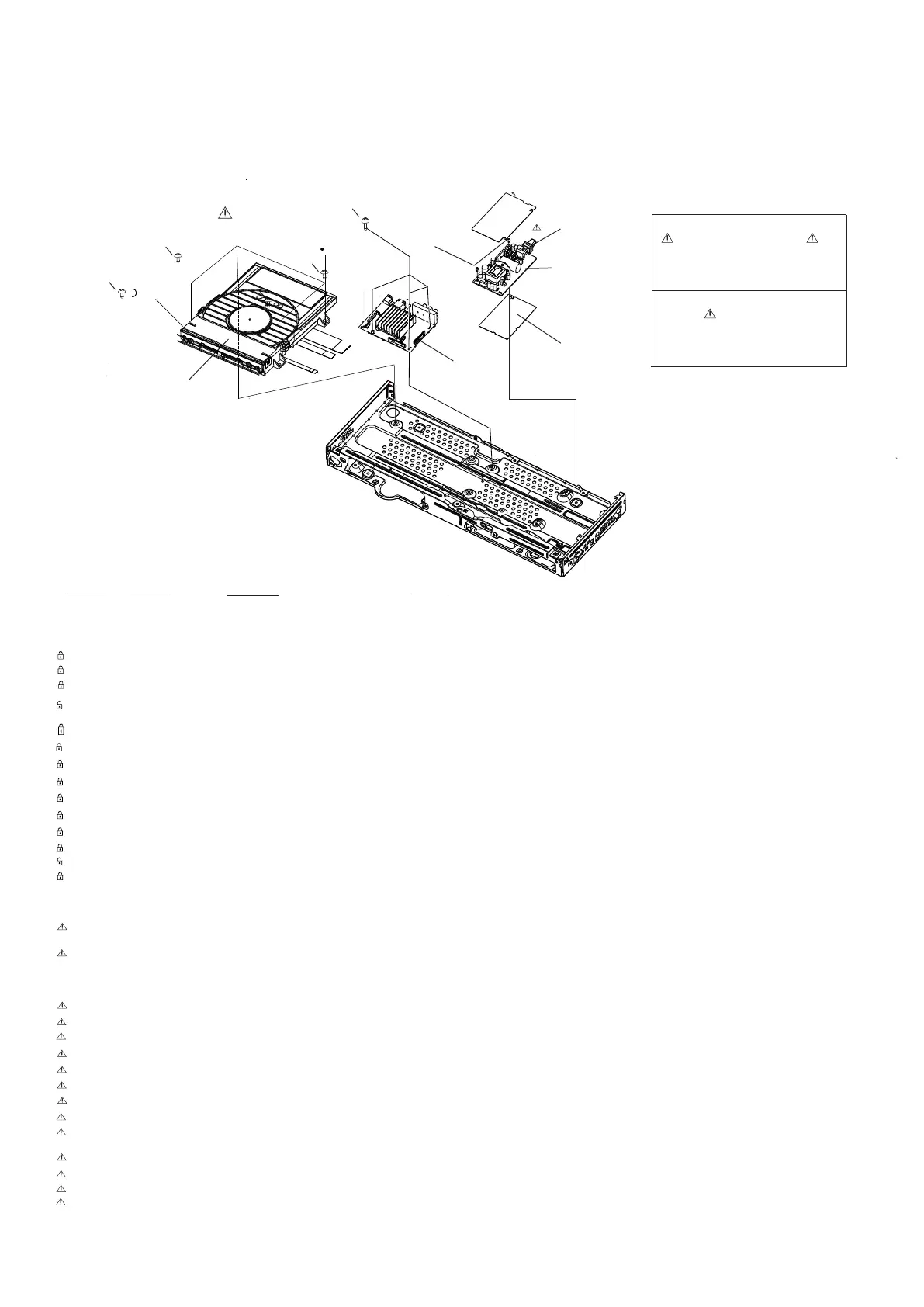

10-1-2. MAIN CHASSIS SECTION
Ref. No. Part No.
Description
Remark
The components identified by mark
or dotted line with mark are
critical for safety.
Replace only with part number
specified.
103
104
101
101
101
101
101
102
104
105
10-2
not supplied
5 BD drive
not supplied
101 3-077-331-21 +BV3 (3-CR)
103 A-1750-926-A LOADING FOR SERVICE
102 A-1797-172-A SERVICE ASSY, MB
(BDP-S380:BR)
102 A-1797-245-A SERVICE ASSY, MB
102 A-1833-490-A SERVICE ASSY, MB
(BDP-S280:US)
104 1-474-267-11 SWITCHING REGULATOR
(BDP-S280: EXCEPT (US,CND)/S380:EXCEPT (US,CND)/S383)
104 1-474-265-11 SWITCHING REGULATOR
(BDP-S280: US,CND/S380:US,CND/BX38)
105 1-835-690-22 POWER-SUPPLY CORD
(BDP-S380:AUS)
105 1-828-450-11 POWER-SUPPLY CORD
(BDP-S383:E,AE1)
105 1-835-688-21 POWER-SUPPLY CORD
(BDP-S383:UK)
105 1-836-410-11 POWER SUPPLY CORD
(BDP-S380:IN)
105 1-835-093-11 POWER-SUPPLY CORD
(BDP-S380:SP,ME,PX,E,AR)
105 1-835-680-21 POWER-SUPPLY CORD
(BDP-S380:TH)
105 1-837-385-11 POWER-SUPPLY
CORD
(BDP-S380:CH
)
105 1-835-688-21 POWER-SUPPLY CORD
(BDP-S380:KS,UK/S280:UK)
105 1-835-684-31 POWER-SUPPLY CORD
(BDP-BX38/S380:US,CND/S280:US,CND/S383:UK)
105 1-835-683-21 POWER-SUPPLY CORD
(BDP-S380:PX,E,AR)
105 1-828-845-21 POWER-SUPPLY CORD
(BDP-S380:TW)
105 1-835-093-11 POWER-SUPPLY CORD
(BDP-S380: AEP,RUS)
105 1-837-073-11 POWER-SUPPLY CORD
(BDP-S280: BR
)
102 A-1816-098-A SERVICE ASSY, MB
102 A-1797-288-A SERVICE ASSY, MB
(BDP-S280:CND)
(BDP-S380:EA,KS)
102 A-1833-492-A SERVICE ASSY, MB
(BX38:US/S380:US,PX)
Les composants identifiés par une
marque
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
(BDP-S280:AEP)
102 A-1833-491-A SERVICE ASSY, MB
(BDP-S380:AEP,UK/S383:AEP,UK)
(BDP-S380:IN,RUS)
102 A-1833-493-A SERVICE ASSY, MB
(BDP-S380:AUS)
102 A-1833-494-A SERVICE ASSY, MB
(BDP-S380:AR,E,MX/S383:E,MX)
102 A-1833-495-A SERVICE ASSY, MB
(BDP-S380:TW)
102 A-1833-496-A SERVICE ASSY, MB
(BDP-S380:SP,TH)
102 A-1833-497-A SERVICE ASSY, MB
(BDP-S380:CN)
102 A-1833-498-A SERVICE ASSY, MB
102 A-1797-254-A SERVICE ASSY, MB
(BDP-BX38:CND/S380:CND)
