DRIVE REPAIRING
1-4-1.
Preparation
1-4-2.
Checking Flow ~ Drive (BU) section ~
ESD Measures
It is necessary to check the working space ESD condition
before starting the Drive Part (BU) repairs
The ESD-resistance of BD Laser is weaker than DVD/CD Laser
To prevent ESD destruction, please make sure the working
space and human ESD.
Drive flowchart
BDP-S185 can play the BD-disc
BLX-104
BDP-S185 can play the DVD/CD-disc
Check Drive Power Supply
Q301 Pin 6: 12V
Q302 Pin 6: 5V
Check PS301, PS302
Replace PS when open
Check / replace the FFC cable, then check
BDP-S185 operates normally
OP FFC cable (1-839-257-11)
Check the Optical Block Unit (BU) by
service mode. (Flowchart zz)
BU IOP is OK?
Replace the Optical Block Unit (BU)
Optical Block Unit (BU) replace
(Flowchart yy)
OK
DVD: HLX-513
CD: HLX-A1
NO
YES
NO
YES
YES
NO
NO
NO
SPD FFC cable (1-839-258-11)

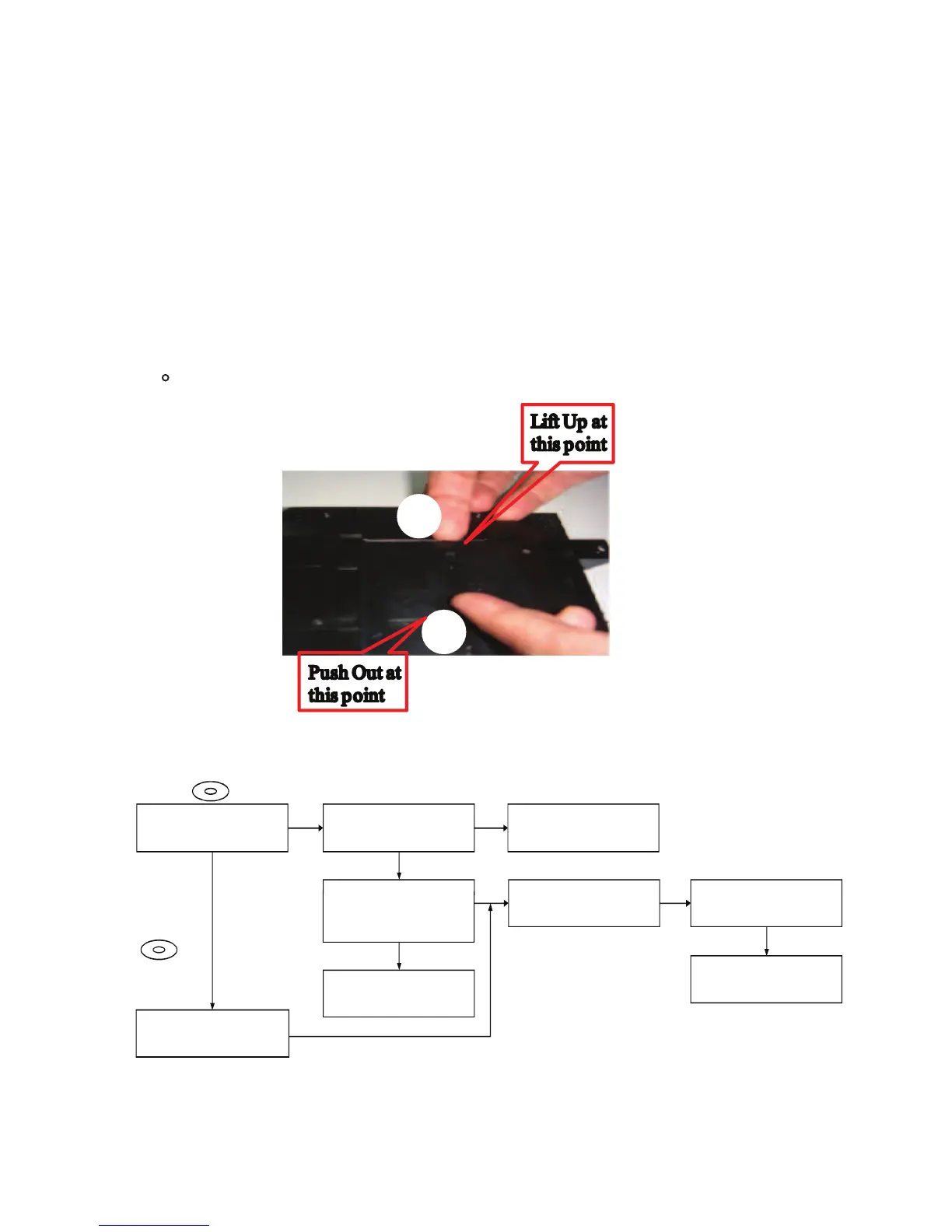

How to open FFC Holder. Refer below picture.
1
2
1
2
1
2
BDP-BX18/S185/S186
