BDP-BX18/S185/S186
10-1
SECTION 10
REPAIR PARTS LIST
The components identified by mark or dotted
line with mark
are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifiés par la marque
con-
tiennent des informations confidentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et
/ ou réparé.

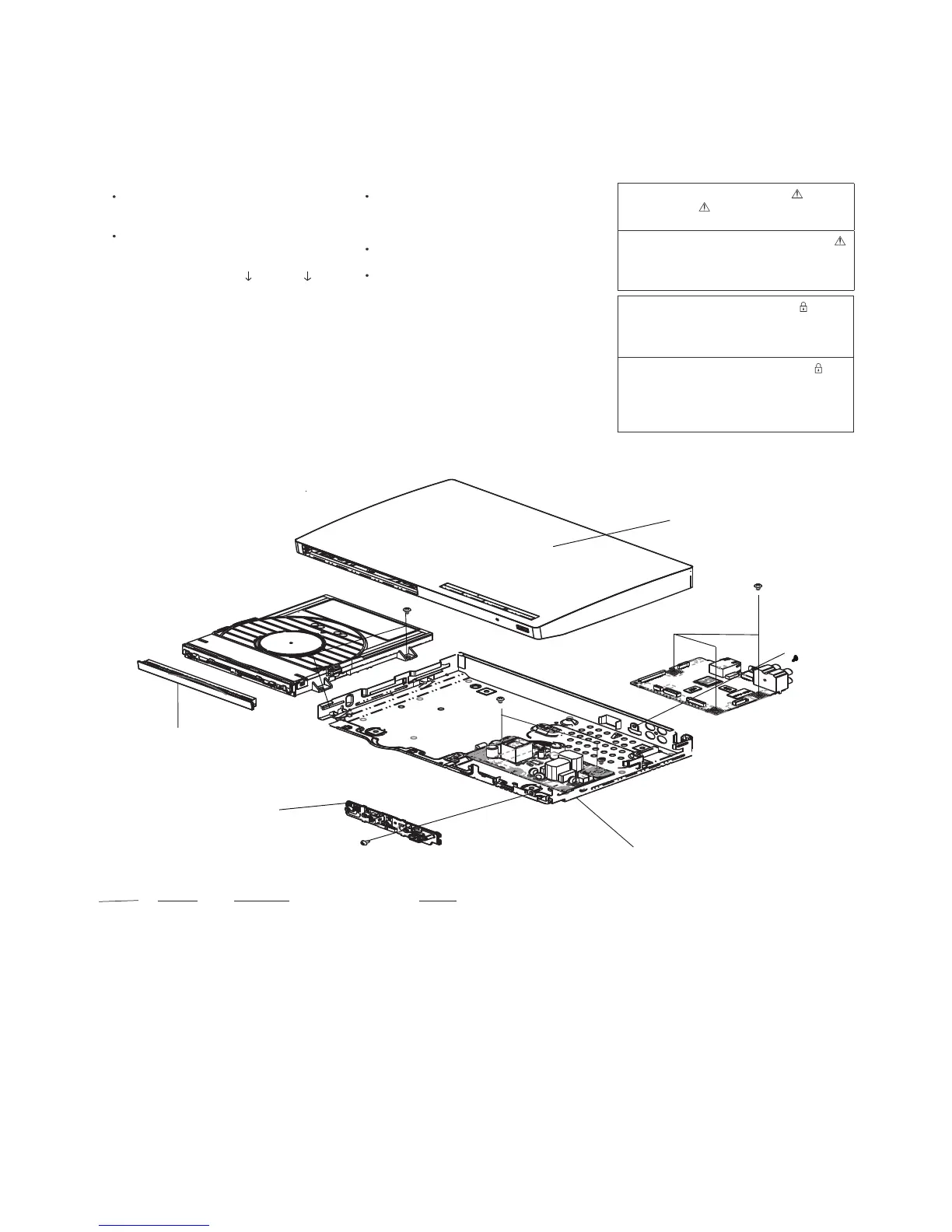

10-1. EXPLODED VIEWS
NOITCES ESAC .1-1-01
NOTE:
-XX and -X mean standardized parts, so they
may have some difference from the original
one.
Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
The mechanical parts with no reference number
in the exploded views are not supplied.
Accessories and packing materials are given in
the last of the electrical parts list.
Ref. No. Part No. Description Remark
Abbreviation
AEP : AEP Model
AR : Argentina Model
AUS : Australia New Zealand Model
BR : Brazilian Model
CND : Canadian Model
E : Latin America Model
EA : Middle East Model
IN : India Model
AEP : AEP
Model
RUS : Russian Model
CND : Canadian Model
CN : China Model
US : USA Model
UK : UK Model
AU
S
: Australia/NZ Model
1
1
1
2
2
3
5
5
ns
ns: not supplied
4
X-2582-717-1 PANEL ASSY, TOP (BDP-S185:US,CND)
X-2582-020-1 PANEL ASSY, TOP (BDP-S185:AEP,CN,RUS,UK-)
X-2582-812-1 PANEL ASSY, TOP (BDP-S186)
X-2582-811-1 COVER TRAY ASSY (BDP-S186)
X-2582-128-1 COVER TRAY ASSY (BDP-S185/BX18)
3-077-331-21 +BV3 (3-CR)
3-077-331-41 +BV3 (3-CR)
A-1844-234-A SERVICE ASSY, FR (BDP-S185/BX18)
A-1848-283-A SERVICE ASSY, FR (BDP-S186)
3
3
3
1
X-2582-612-1 PANEL ASSY, TOP (BDP-BX18)
4
3
5
2
1
