1-17
1-4-5. BU Adjustment Flow [yy] ~
1-4-6. KEM-470AAA/C2RP Packing Spec.
KEM-430AAA/C2RP Packing Spec.

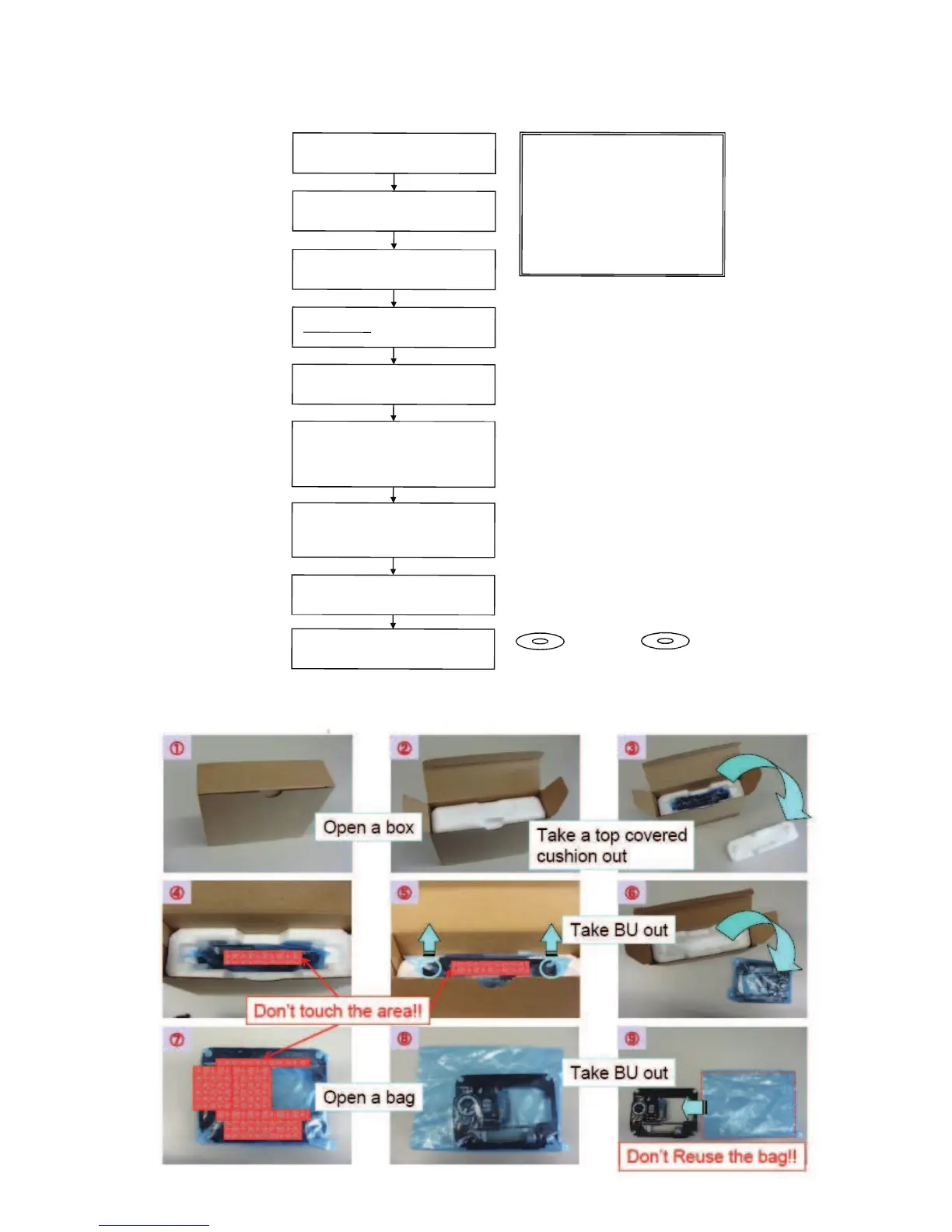

Optical Block Unit (BU) OP Data Write Flow (yy) ~ [After BU/MB Replacement]
Remove the defective BU from Loading
Assy and also remove BU insulator (4pcs)
Unpack new BU and take OP Data Barcode
photo by camera
Assemble BU with Insulators to Loading
Assy (tighten screw with 2kgf)
Decode the OP Data Barcode photo
u
s
i
ng
BDPRdec.exe
and save the test data to
USB memory
(File Name: BuData.txt)
Enter Service Mode and insert USB memory
to USB connector
Select [8] Drive -->
Select [1] Drive OP data Write
Press ENTER
After Finishing ReWrite OP data
--> Turn AC Power OFF
And confirm dIOP by select [7] OP Check
Menu to verify IOP in specification
IOP in specification --> Turn AC Power OFF
Turn Power ON and check playback
performance using BD, DVD and CD
BLX-104
DVD: HLX-513
CD: HLX-A1
The following cases need
OP Data Write:
(1) Replace BU (MB is original)
(2) Replace MB (BU is original)
(3) Replace both BU and
MB
JIG requ
irement
Digital camera (with macro mode
)
Barcode decoder (BDPRdec.exe)
installed in jig
PC's (jig purpose)
USB memory
ESD free work ben
ch
BDP-BX18/S185/S186
To Next Page
