SA-WCT770
11

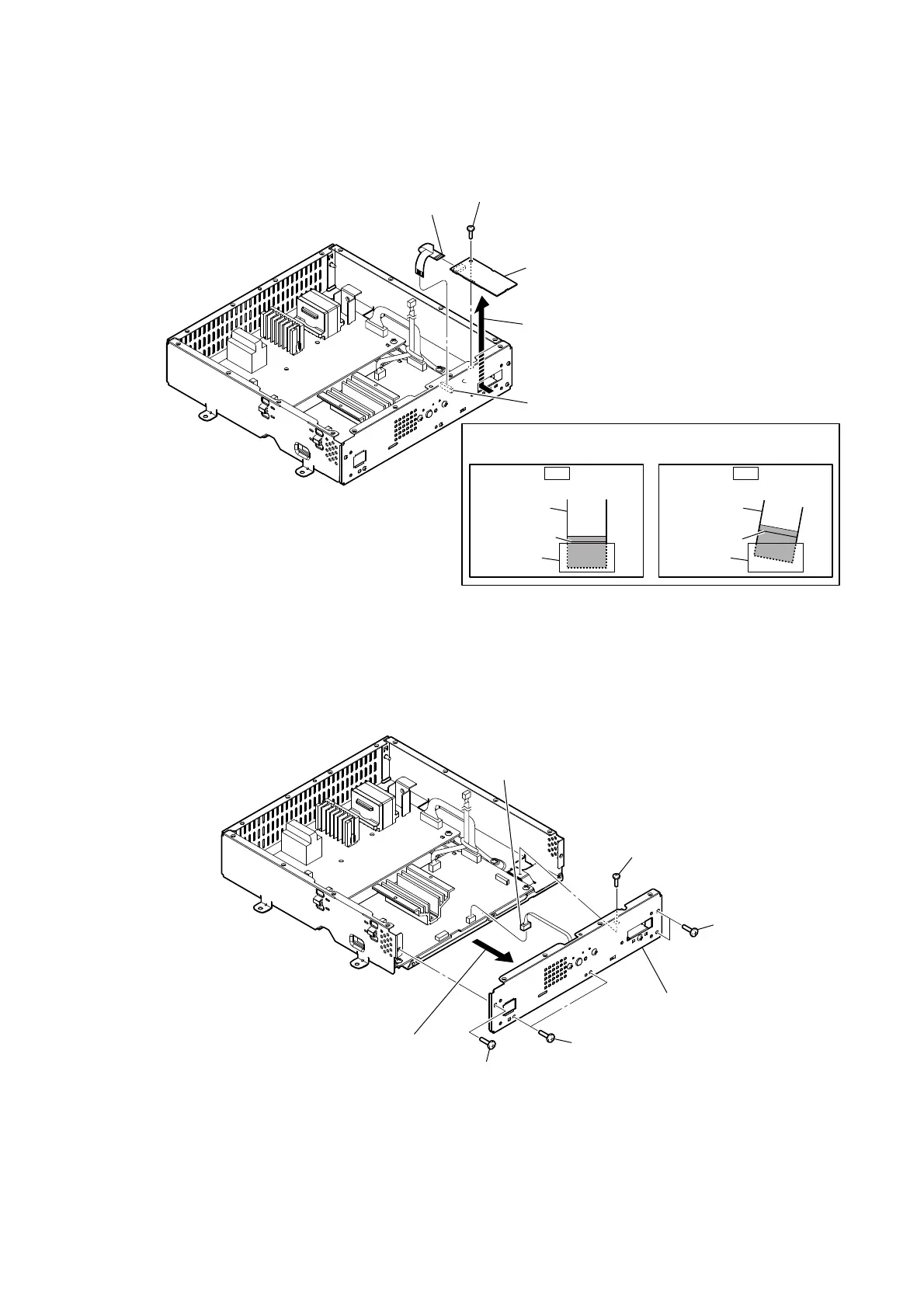

2-10. REAR PLATE BLOCK
2-9. RF MODULATOR (SWA12-4V RX) (RF1)
4 flexible flat cable (24 core)
Note 1:
When installing the
flexible flat cable (24 core)
,
insert in the correct orientation after confirming
the terminal face.
2 screw (BV3)
1 connector (CN107)
5 RF modulator (SWA12-4V RX) (RF1)
3 Remove the RF modulator block
in the direction of the arrow.
Note 2:
When installing the flexible flat cable,
ensure the colored line.
No slanting after insertion.
– Sub AMP block rear view –
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat
cable
flexible flat
cable
connectorconnector
OK NG
– Sub AMP block rear view –
1 two screws
(BV3)
1 screw
(BV3)
1 two screws
(BV3)
1 screw
(BV3)
3 connector
(CN113)
4 rear plate block
2 Remove the rear plate block
in the direction of the arrow.
To Next Page
