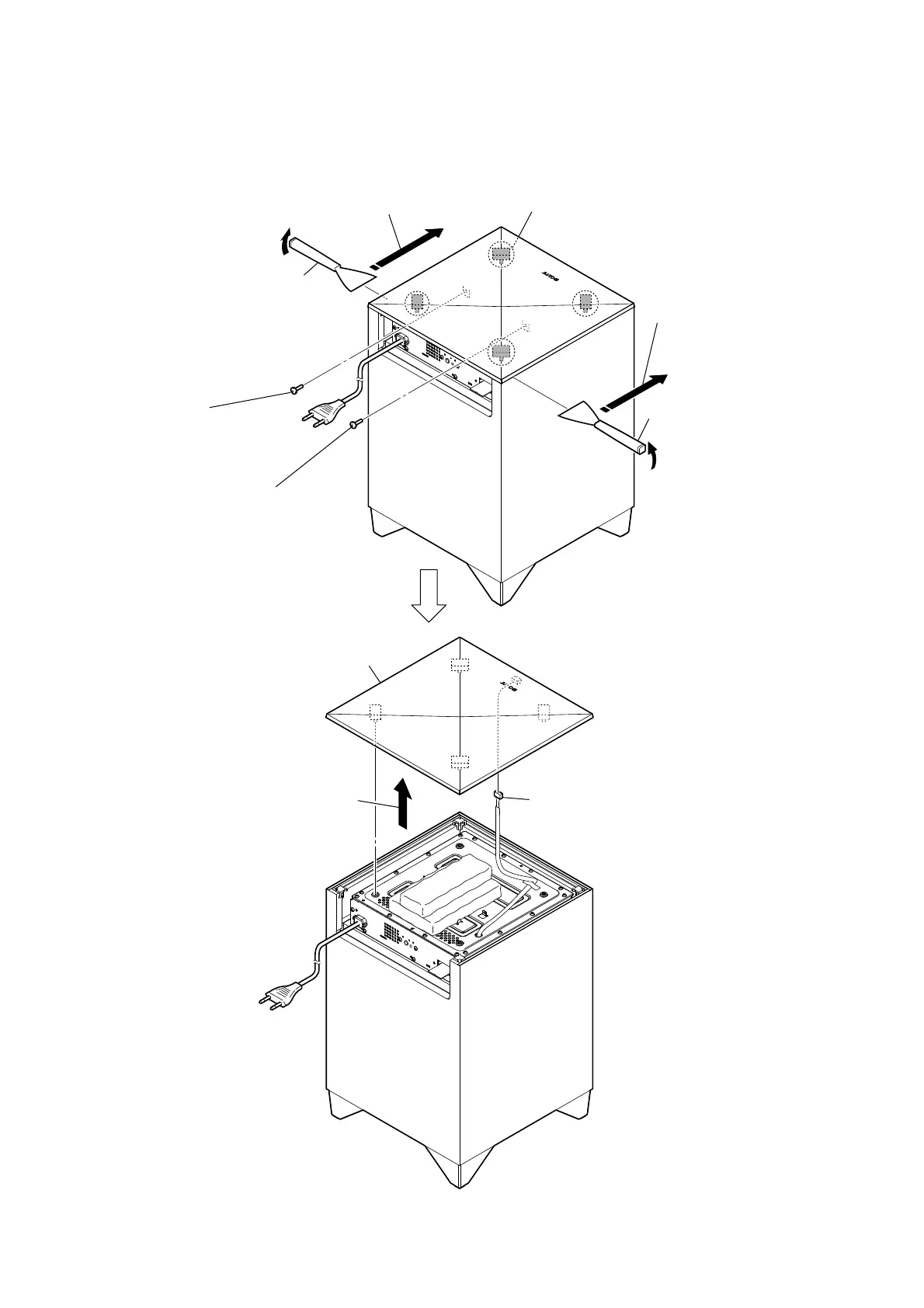

2-3. TOP PANEL BLOCK
total four bosses
5 connector
(CN901)
6 top panel block
– Rear view –
3 All bosses are removed while moving
jig in the direction of the arrow, and
top panel block is removed.
3 All bosses are removed while moving
jig in the direction of the arrow, and
top panel block is removed.
2 Insert the jig into a space and raise
top panel block.
Note 2: When using a jig, please work so
as not to injure top panel block.
2 Insert the jig into a space and raise
top panel block.
Note 2: When using a jig, please work so
as not to injure top panel block.
1 screw
(BVTP3 u 8)
Note 1: Please use the extra
long screwdriver.
1 screw
(BVTP3 u 8)
Note 1: Please use the extra
long screwdriver.
4 Remove the top panel block
in the direction of the arrow.
