8
SA-WMS145/WMSP50
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

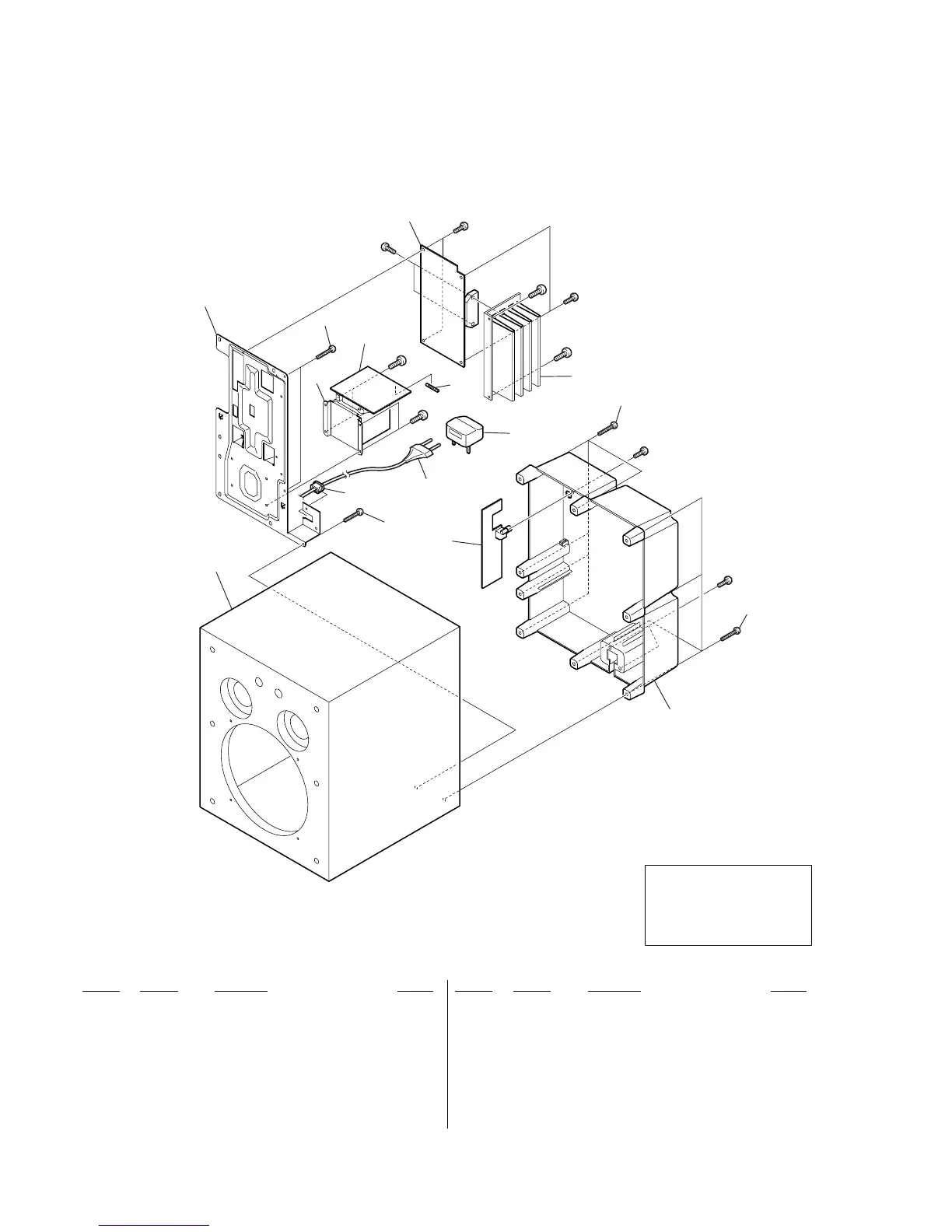

2-2. REAR SECTION
51 A-4737-805-C CABINET ASSY, SPEAKER (SILVER)...(SILVER)
51 A-4740-194-A CABINET ASSY, SPEAKER (WOOD)...(WOOD)
51 A-4740-284-A CABINET ASSY, SPEAKER (BLACK)...(BLACK)
52 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP
* 53 3-703-244-00 BUSHING (2104), CORD
0 54 1-769-744-11 CORD, POWER
55 1-688-814-11 POWER TRANS BOARD
56 A-4734-911-A MAIN BOARD, COMPLETE
57 1-688-813-11 INPUT BOARD
0 58 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)
0 F901 1-532-463-51 FUSE (T1AL/250V)
0 T1 1-439-624-11 TRANSFORMER, POWER
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
#3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
The components identified by
mark 0 or dotted line with mark.
0 are critical for safety.
Replace only with part number
specified.
not supplied
not supplied
not supplied
F901
T1
#2
#2
#2
#1
#1
#1
#1
#3
#2
51
52
52
52
52
53
54
57
55
56
58
To Next Page
