SA-VE522/VE525/WM525/SS-MS525/V521

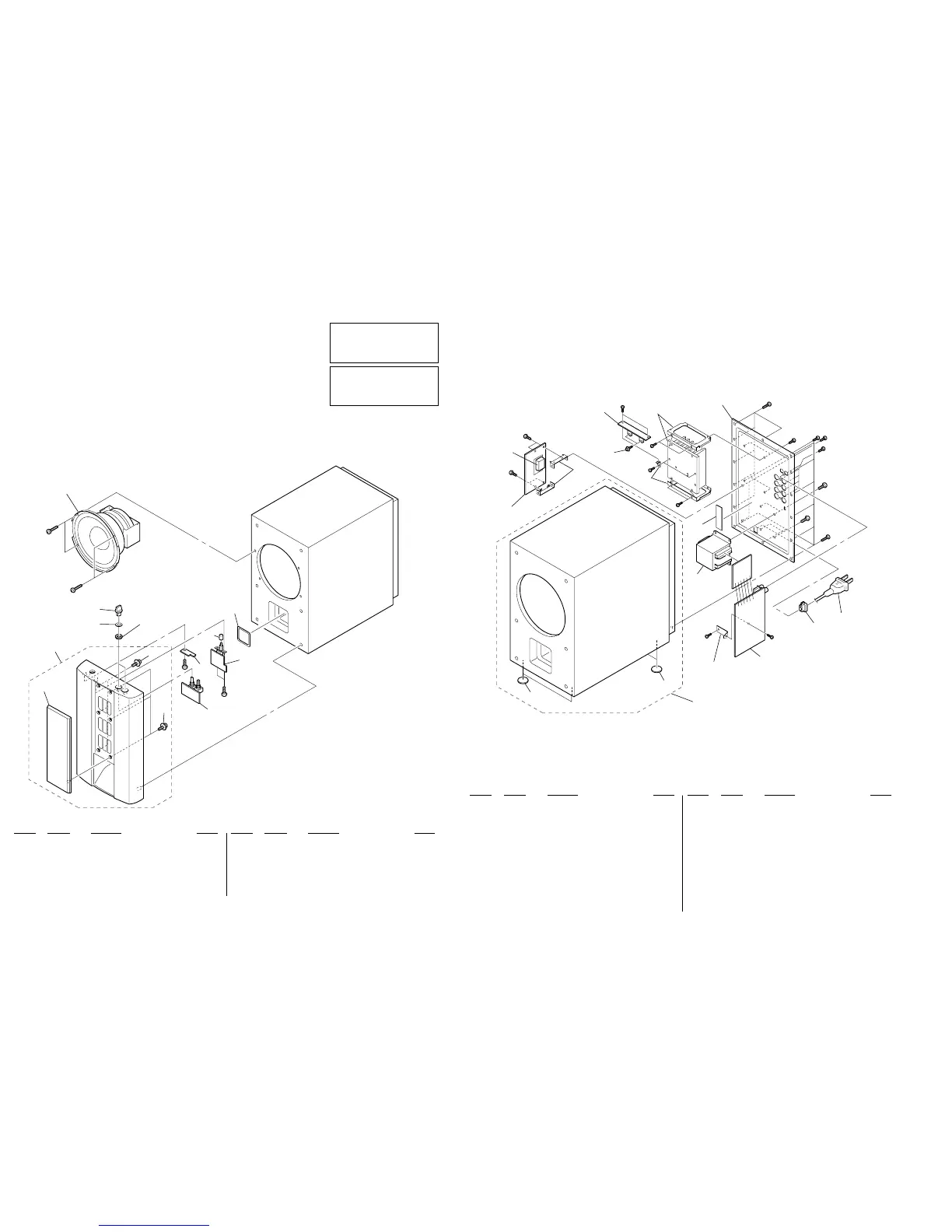

3-1. FRONT PANEL SECTION
SECTION 3
EXPLODED VIEWS
3-2. REAR PANEL SECTION
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
• Abbreviation
CND : Canadian model
SP : Singapore model
MX : Mexican model
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4953-330-1 FRAMEASSY, GRILLE
2 X-4953-555-1 PANELASSY, FRONT
3 3-703-564-21 SCREW,TAPPING
4 4-227-298-01 SHEET
5 4-999-482-31 KNOB(VOL)
6 4-231-866-01 PACKING
7 1-680-787-11 POWER SWITCH BOARD
8 4-973-938-51 KNOB(A), PUSH
9 1-680-788-11 LED BOARD
10 1-680-785-11 CONTROL BOARD
SP901 1-529-296-11 SPEAKER (20CM)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
1
2
3
3
4
5
8
6
7
10
9
SP901
Supplied with
RV201 and S201
#1
#1
#2
#2
51
52
52
53
54
55
56
59
60
57
58
T501
not supplied
not supplied
not
supplied
not
supplied
#3
#3
#4
#4
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
T601
51 A-4412-638-A CABINET ASSY, SPEAKER
52 4-981-864-01 FOOT
53 1-680-789-11 AUTO POWER BOARD
54 1-680-786-11 POWER BOARD
55 3-905-609-01 SCREW(TRANSISTOR)
56 4-232-739-11 PANEL, REAR (US,MX)
56 4-232-739-21 PANEL, REAR (AEP,UK)
56 4-232-739-31 PANEL, REAR (CND)
56 4-232-739-41 PANEL, REAR (SP)
57 1-777-071-21 CORD,POWER (AEP,UK,SP)
57 1-783-820-11 CORD,POWER (US,CND,MX)
* 58 3-703-244-00 BUSHING (2104), CORD
59 A-4476-543-A MAINMOUNTED PC BOARD
* 60 3-703-044-26 LABEL, CAUTION (US,CND,MX)
0 T501 1-435-999-11 TRANSFORMER, POWER (US,CND,MX)
0 T501 1-437-219-11 TRANSFORMER, POWER (SP)
0 T501 1-437-246-11 TRANSFORMER, POWER (AEP,UK)
0 T601 1-435-993-11 TRANSFORMER, POWER (US,CND,MX)
0 T601 1-435-994-11 TRANSFORMER, POWER (AEP,UK)
0 T601 1-435-995-11 TRANSFORMER, POWER (SP)
