SECTION 2
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories and packing materials are given in
the last of the electrical parts list.
• Abbreviation
AR : Argentin model
CND : Canadian model
MX : Mexican model
MY : Malaysia model
SP : Singapore model
7
SA-WMSP2/WMSP4
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

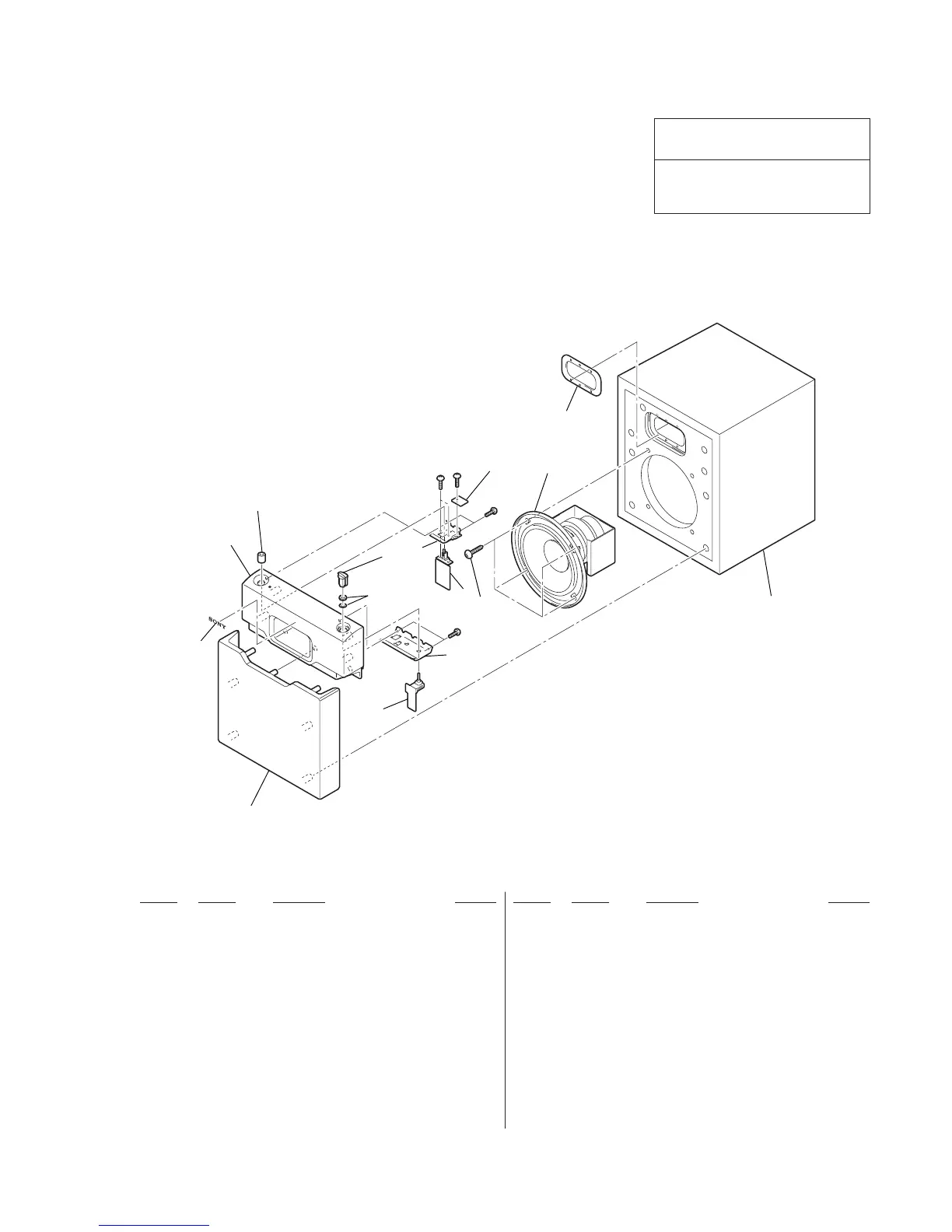

2-1. Front Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
#1
#1
#1
#1
1
9
3
5
4
SP1
11
10
8
7
2
6
not
supplied
Supplied
with RV601
AMP section
1 X-4953-515-1 FRAME (SILVER) ASSY, GRILLE (SILVER)
1 X-4953-516-1 FRAME (BLACK) ASSY, GRILLE (BLACK)
2 4-232-530-01 PANEL, FRONT (SILVER)
(WMSP2:UK,AEP,MY,SP,E)
2 4-232-530-21 PANEL, FRONT (SILVER) (WMSP2:US,CND)
2 4-232-530-31 PANEL, FRONT (BLACK) (WMSP2:US)
2 4-232-530-41 PANEL, FRONT (SILVER)
(WMSP4:AR,UK,AEP,MY,SP,E,MX)
2 4-232-530-51 PANEL, FRONT (BLACK) (WMSP4:US)
2 4-232-530-61 PANEL, FRONT (SILVER) (WMSP4:US,CND)
3 4-973-938-81 KNOB (A), PUSH (SILVER)
3 4-973-938-91 KNOB (A), PUSH (BLACK)
4 1-684-031-11 LED BOARD
5 4-232-527-01 KNOB, VOLUME (SILVER)
5 4-232-527-11 KNOB, VOLUME (BLACK)
6 4-998-417-02 EMBLEM (NO.5), SONY
7 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP
8 1-684-030-11 SWITCH BOARD
9 1-684-029-11 CONTROL BOARD
10 4-232-531-01 PLATE, LIGHT GUIDE
11 4-232-534-01 PACKING (DUCT)
SP1 1-529-995-11 SPEAKER (20cm) (WMSP2)
SP1 1-825-004-11 LOUD SPEAKER (WMSP4)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
To Next Page
