8
SA-WMSP2/WMSP4

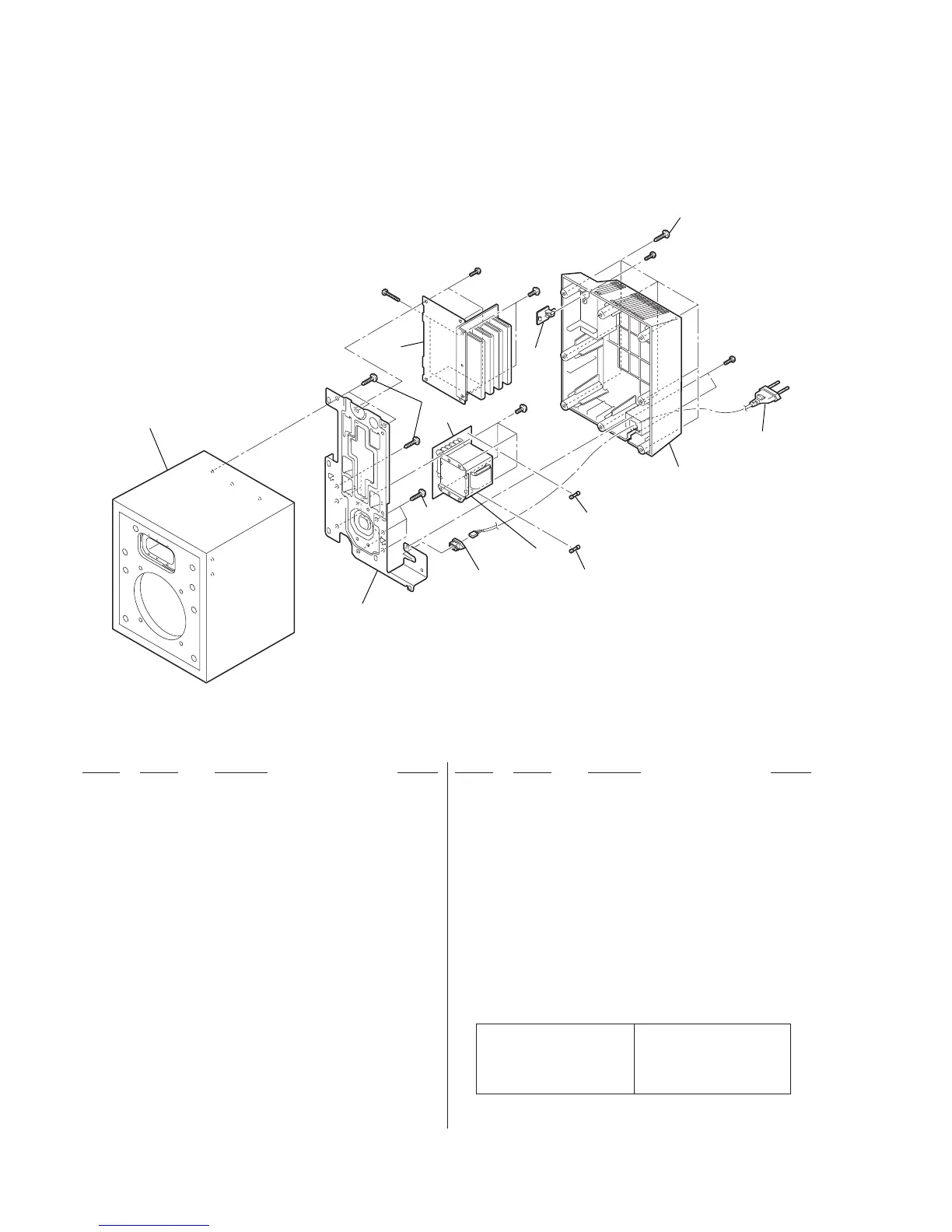

2-2. Amp Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
#1
#1
#2
#1
#3
#3
50
56
54
52
55
57
53
57
57
not
supplied
not
supplied
T1
F901
F902
50 A-4735-752-A SPEAKER CABINET ASSY (SILVER)
(WMSP2:E,US,CND/WMSP4:AR,E,MX,US,CND)
50 A-4735-942-A SPEAKER CABINET ASSY (SILVER)
(WMSP2:UK,AEP,MY,SP/WMSP4:UK,AEP,MY,SP)
50 A-4735-944-A SPEAKER CABINET ASSY (BLACK)
(WMSP2:US/WMSP4:US)
52 1-684-032-11 INPUT JACK BOARD
53 A-4727-932-A MAIN BOARD, COMPLETE (WMSP2)
53 A-4727-938-A MAIN BOARD, COMPLETE (WMSP4)
54 1-684-033-11 POWER TRANS BOARD
0 55 1-769-744-11 CORD, POWER (UK,AEP,MY,SP)
0 55 1-783-528-11 CORD, POWER (TRACKING) (E)
0 55 1-783-820-11 CORD, POWER (US,CND,MX)
0 55 1-783-941-12 CORD, POWER (WMSP4:AR)
* 56 3-703-244-00 BUSHING (2104), CORD
57 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP
0 F901 1-532-463-51 FUSE (T1AL/250V) (WMSP4:AR,UK,AEP,MY,SP)
0 F901 1-532-464-31 FUSE (T2.5AL/250V) (WMSP2:E/WMSP4:E)
0 F901 1-532-500-31 FUSE (T0.63AL/250V) (WMSP2:UK,AEP,MY,SP)
0 F901 1-532-744-11 FUSE, GLASS TUBE (2.5A/125V)
(WMSP2:US,CND/WMSP4:US,CND,MX)
0 F902 1-532-502-51 FUSE (T1.25AL/250V) (WMSP2:E/WMSP4:E)
0 T1 1-437-657-11 POWER TRANSFORMER (WMSP2:E)
0 T1 1-437-658-11 POWER TRANSFORMER
(WMSP2:UK,AEP,MY,SP)
0 T1 1-437-659-11 POWER TRANSFORMER (WMSP2:US,CND)
0 T1 1-437-660-11 POWER TRANSFORMER
(WMSP4:AR,UK,AEP,MY,SP)
0 T1 1-437-661-11 POWER TRANSFORMER (WMSP4:US,CND,MX)
0 T1 1-437-662-11 POWER TRANSFORMER (WMSP4:E)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
