SA-WS350/WSD35
9
Sony CONFIDENTIAL
For Authorized Servicer
Note: Follow the disassembly procedure in the numerical order given.

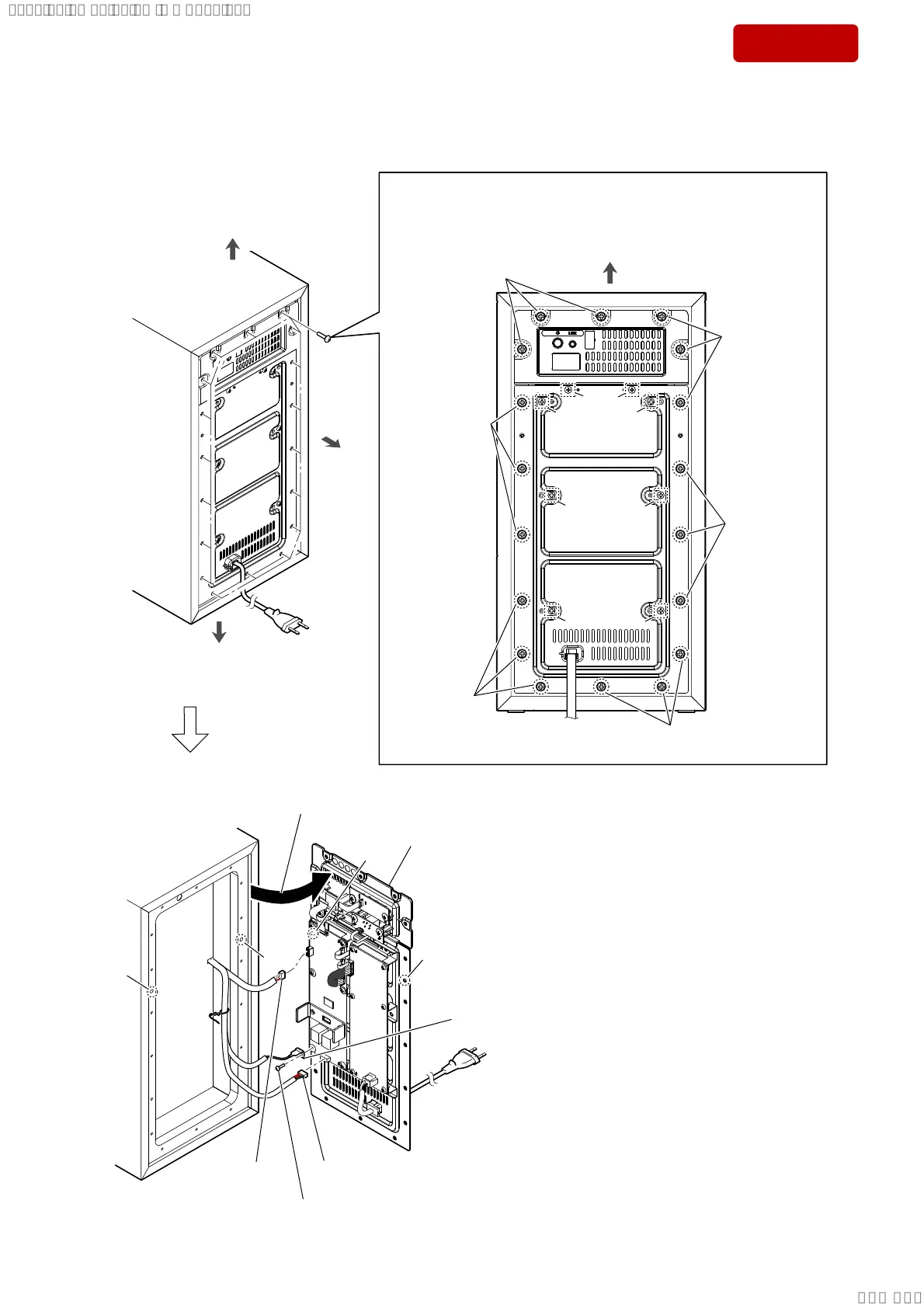

2-2. AMP BLOCK
bottom side
rear side
top side
– Rear view –
Note 1:
When removing the AMP block, remove the eighteen screws as
shown below. If you remove screws other than those specified in
the below, the internal parts may fall out and get damaged.
(Removing the eight screws at the
v
mark screws is not necessary)
top side
2 Open the AMP block
in
the direction of the arrow.
3 LED board cable
connector (CN9)
4 speaker connection cable
connector (CN3)
7 AMP block
Note 2:
When installing the AMP block,
align the two ribs and two holes.
1 three screws
(BVTP4 u 16)
1 three screws
(BVTP4 u 16)
1 three screws
(BVTP4 u 16)
1 three screws
(BVTP4 u 16)
1 three screws
(BVTP4 u 16)
1 three screws
(BVTP4 u 16)
v
v
v
v
v
v
v
hole
hole
rib
rib
v
5 screw
(BVTP3 u 8)
6 GND cable
SYSSET
