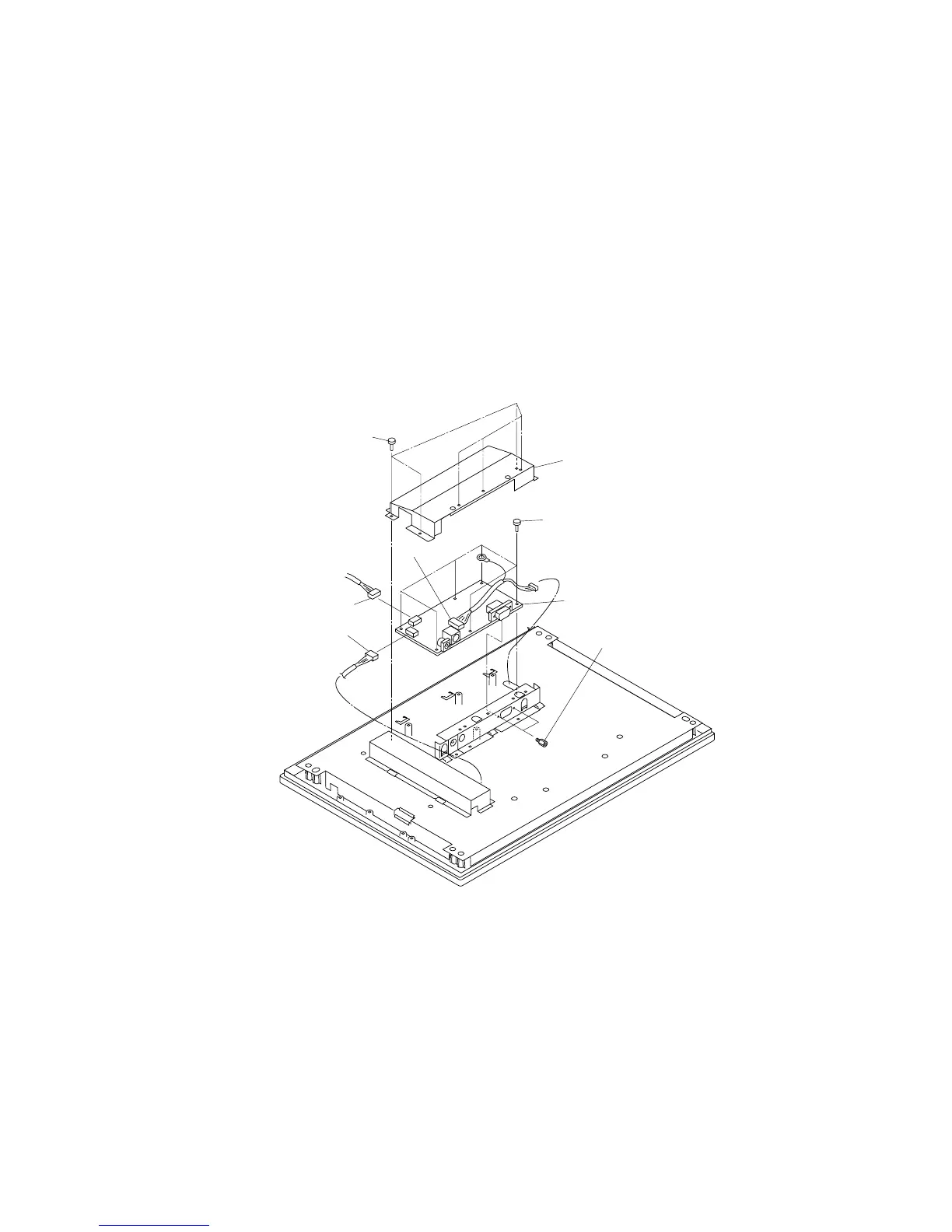

SDM-S71 (E) 1-4
1 Six screws
(+P 3x4)
2 I/F cover
8 I/F board mount
7 Six screws
(+PWH 3x6)
4 CN009
3 CN008
5 CN005
6 Two connector
screws
1-4. I/F BOARD REMOVAL
