SDM-S71(E) 4-2
REF.NO. PART NO. DESCRIPTION REMARK

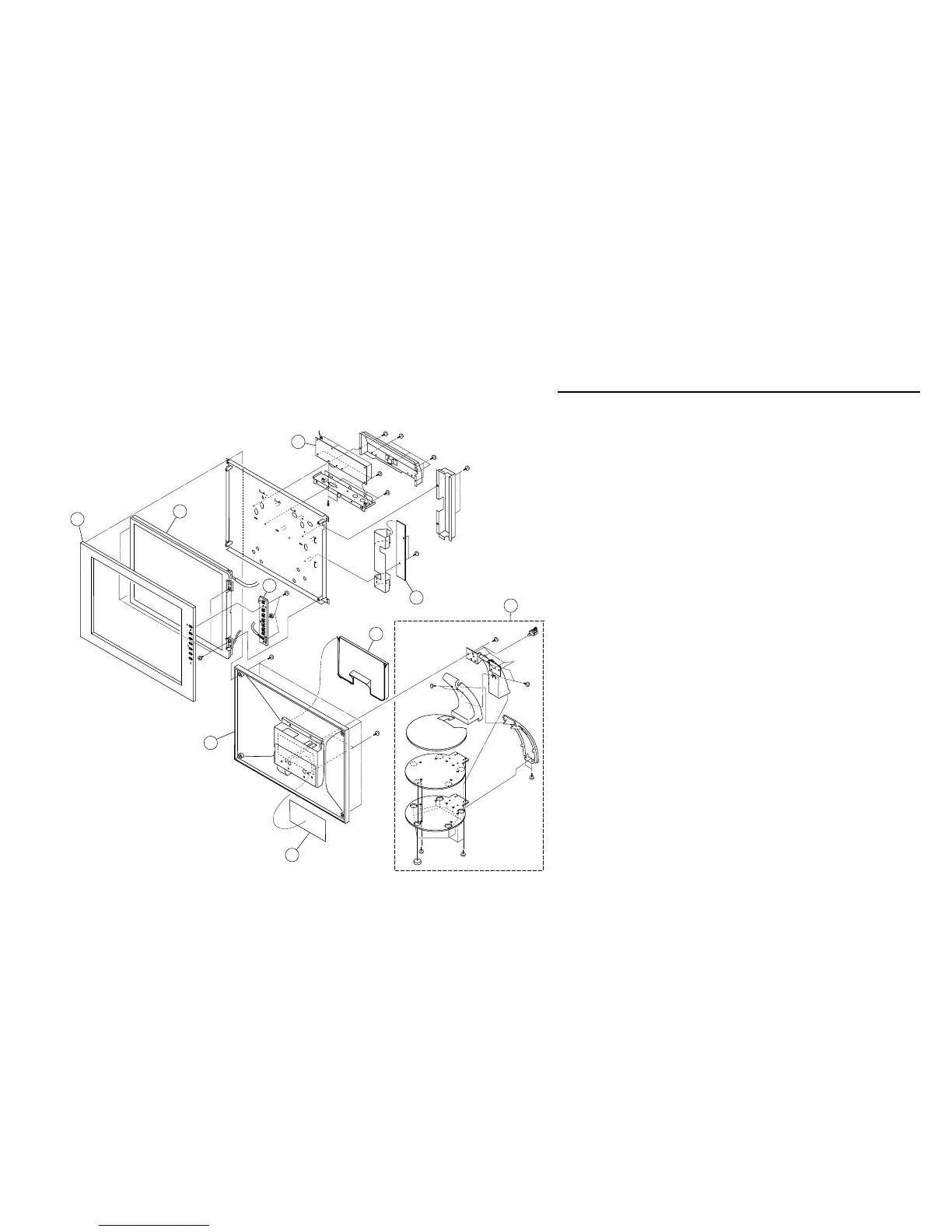

4-1. CHASSIS
1 4-089-030-01 BEZEL ASSY(WHITE)
4-089-079-01 BEZEL ASSY(BLACK)
(EXCEPT S.H MODEL)
2 1-804-808-11 LCD PANEL
3 1-761-596-11 I/F BOARD MOUNT
4 1-761-594-11 KEYBOARD MOUNT
5 1-761-569-11 INVERTER MOUNT
6 4-087-934-01 STAND ASSY(WHITE)
4-087-937-01 STAND ASSY(BLACK)
(EXCEPT S.H MODEL)
7 4-089-031-01 COVER, REAR(WHITE)
4-089-078-01 COVER, REAR(BLACK)
(EXCEPT S.H MODEL)
8 4-089-029-01 CABINET ASSY(WHITE)
4-089-080-01 CABINET ASSY(BLACK)
(EXCEPT S.H MODEL)
9 4-089-032-01 LABEL, INFORMATION(WHITE)
4-089-034-01 LABEL, INFORMATION(BLACK)
(EXCEPT S.H MODEL)
1
8
9
2
3
5
PSW 3X8
PTP 4X16
PWH 3X14
PWH 3X4
PWH 3X6
PWH 3X6
P 3X4
P 3X4
P 3X4
P 3X4
PSW 4X10
PTP 3X10
PTP 3X10
P 3X8
PTP 3X8
PTP 3X8
P 4X10
4
6
7
