SDM-S71(E) 2-1
SECTION 2
ADJUSTMENTS
2-1. FUNCTIONAL ALIGNMENT (1)
• Procedures of how to go to service mode.
1. Enter the service mode of this unit by turning on the power while pressing and holding the “↑” and ”↓” keys simultaneously.
2. Press “MENU” key-----MAINTAIN → Configulation → RGB Reset → ΟΚ → Configulation → Color Temp.
3. Press the “↓” key continuously to select MAINTAIN on the second page.
4. Press “OK” key to enter the service menu.
5. Select the desired function.
6. Press the “MENU” key to exit OSD.
7. Turn off the power and then turn on it again. The monitor then enters the normal mode.
To enter the service again, repeat the procedure described above.
Note
1. N/A indicates “Not Applied”.
2. This service menu only provides both a Configuration function and Sync Slice function.
Other functions are used for design engineering. There is no guarantee of using these N/A functions.
3. W/B readjustment is required after the panel, board, and microcomputer are replaced. However, be sure to perform aging
for more than 30 minutes for RGB reset before W/B adjustment.

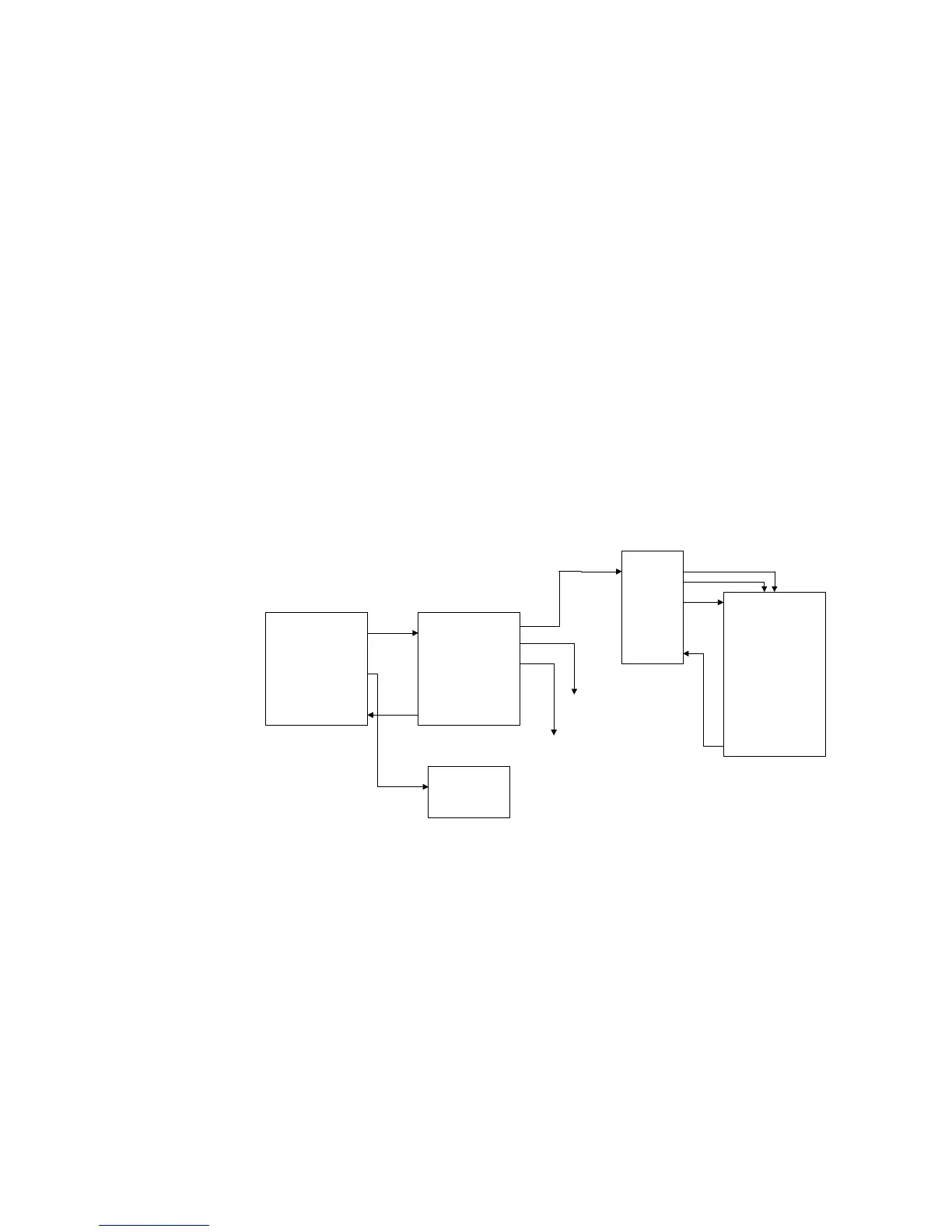

PERFORM
1 RGB RESET
(N/A)
INITIAL EE PRM
OK
ANALOG
CONFIGUR ATION
CHIPS
SYNC SLICE
EXIT
(N/A)
2 COLOR TEMP
INITIAL EE PROM
CLEAR ETI TIME
EEPROM TEST
EXIT
9300K
6500K
5000K
EXIT
SUB-BRIGHTNESS
R
G
B
SUB-CONTRAST
R
G
B
EXIT
On
Off
To Next Page
