Sony STR-DA1200ES Service Manual

STR-DA1200ES
15

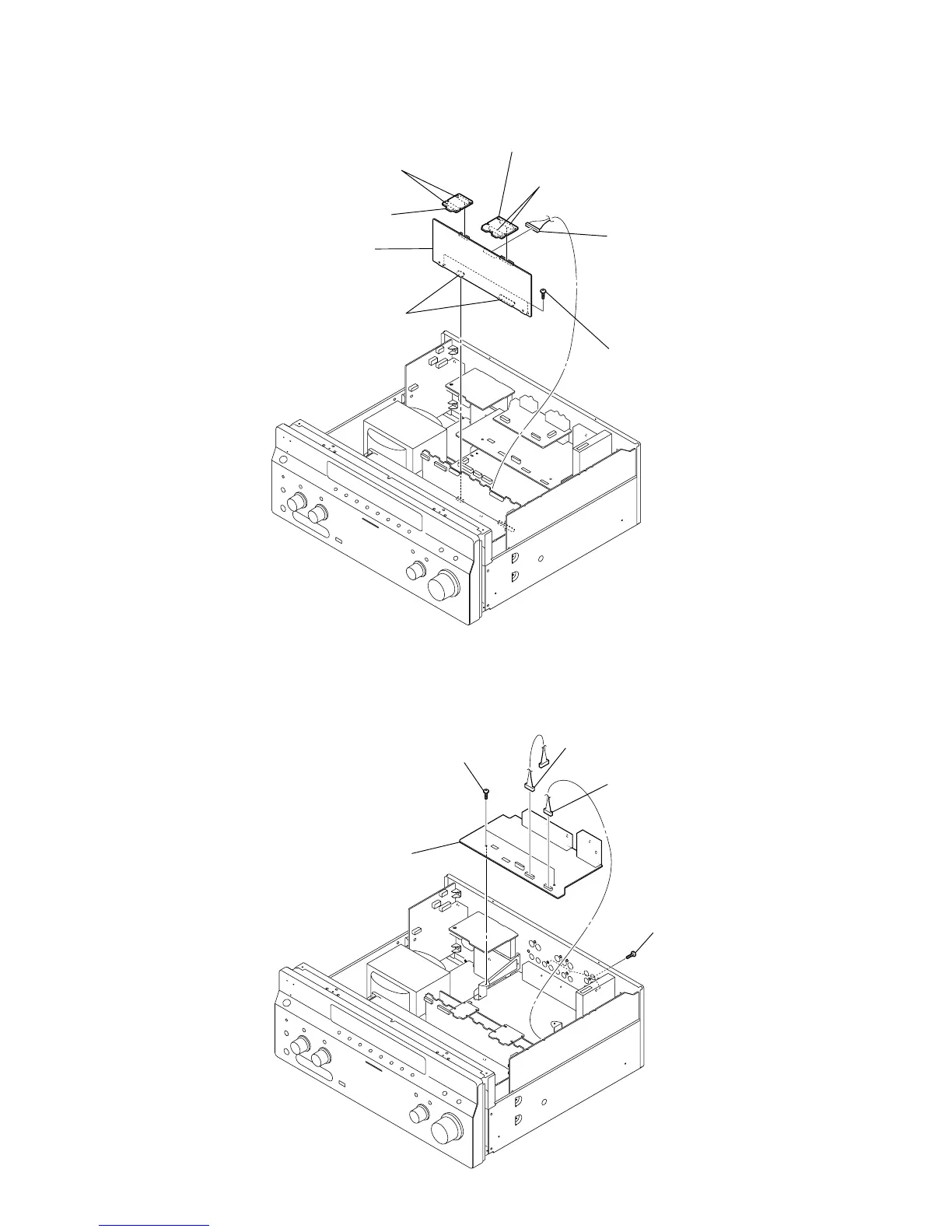

3-7. VIDEO BOARD
3-6. E-VOLUME BOARD
6 two connectors
(CNS1203, 1204)
8 E-VOLUME board
2 CONNECTOR L board
1 two connectors
(A CLASS AMP: CNS1502, E-VOLUME: CNS1202)
4 CONNECTOR R board
3 two connectors
(A CLASS AMP: CNS1501, E-VOLUME: CNS1201
)
5 connector
(CNP1208)
7 two screws
(BVTP3
× 8)
4 four screws
(BVTP3
× 8
)
2 connector
(CN6803)
1 connector
(CN6801)
5 VIDEO board
3 two screws
(BVTP3
× 8)
