Sony STR-DA1200ES Service Manual

STR-DA1200ES
17

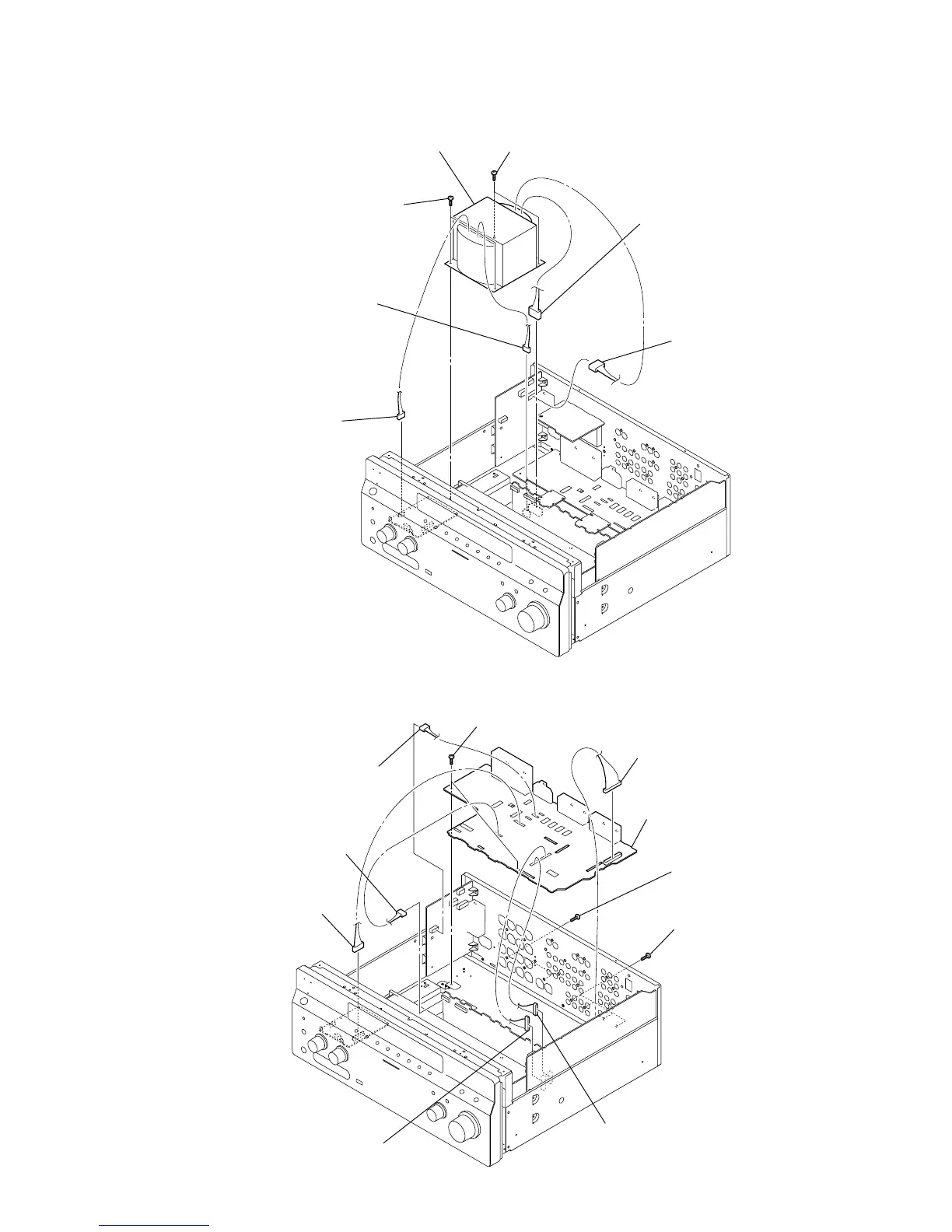

3-11. MAIN BOARD
3-10. POWER TRANSFORMER (T01)
4 connector
(CNP02)
7 power transformer (T01)
5 two screws
(BVTT4
× 8)
3 connector
(CNP1403)
6 two screws
(BVTT4
× 8)
2 connector
(CNP1404)
1 connector
(CNP1451)
6 connector
(CN2021)
5 connector
(CN2012)
1 connector
(CN1410)
2 connector
(CN1902)
3 connector
(CNP54)
4 connector
(CNP1001)
q; MAIN board
9 two screws
(BVTP3
× 8)
7 three screws
(BV/RING)
8 four screws
(BVTP3
× 8)

Sony STR-DA1200ES Specifications

General

Equalizer	Yes
Product color	Silver
Audio output channels	7.1 channels
Supported radio bands	AM, FM
I/O ports	5 x A/V In 2 x A/V Out 4 x S-Video In 1 x S-Video Out 3 x Component Video In 1 x Component Video Out 2 x HDMI In 1 x HDMI Out 4 x Opt.A/V In 1 x Opt.A/V Out
Connectivity technology	Wired
Headphone outputs	1
Dimensions (WxDxH)	430 x 175 x 430 mm
HDMI ports quantity	3

Weight and Dimensions

Weight	15000 g
