Sony STR-DA1200ES Service Manual

STR-DA1200ES
4444
STR-DA1200ES

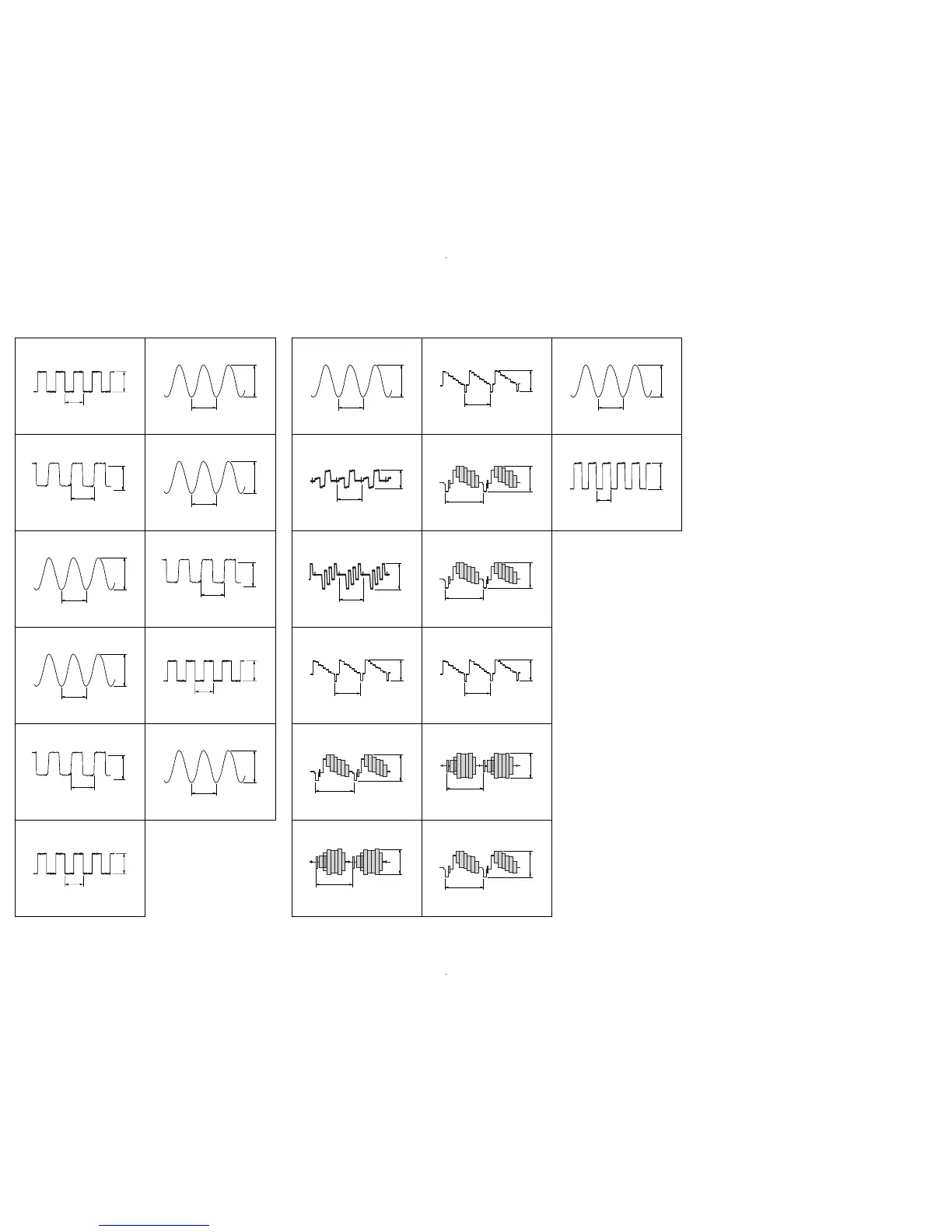

• Waveforms
– DIGITAL Board –
3
IC2024 qg (SCLKI)
1 V/DIV, 20 ns/DIV
40.8 ns
2.4 Vp-p
4
IC2006 qh (RMCK)
1 V/DIV, 20 ns/DIV
40.4 ns
3.3 Vp-p
7
IC2006 wk (XOUT)
1 V/DIV, 20 ns/DIV
40.4 ns
2.7 Vp-p
wa
IC6701 1 (CERA)
(VIDEO 1 mode)
100 mV/DIV, 1 µ s/DIV
2 µ s
130 mVp-p
8
IC2034 ek (SCKI)
1 V/DIV, 20 ns/DIV
40.4 ns
2.4 Vp-p
qa
IC2054 <zvc (X-OUT)
1 V/DIV, 50 ns/DIV
79.5 ns
3.1 Vp-p
ws
IC6701 6 (V2OUT)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.5Vp-p
wd
IC6701 7 (U2OUT)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.5Vp-p
wf
IC6701 qk (YOUT)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.8 Vp-p
wg
IC6431 qd (V1. IN)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.7 Vp-p
wh
IC6671 1 (VIN1)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.7 Vp-p
21 µ s
3.2 Vp-p
1
IC2024 q; (LRCK)
1 V/DIV, 10 µ s/DIV
21 µ s
3.2 Vp-p
q;
IC2034 ra (LRCK)
1 V/DIV, 10 µ s/DIV
21 µ s
3.2 Vp-p
6
IC2006 w; (RLRCK)
1 V/DIV, 10 µ s/DIV
2
IC2024 qa (BCK)
1 V/DIV, 200 ns/DIV
324 ns
3.2 Vp-p
9
IC2034 r; (VLK)
1 V/DIV, 200 ns/DIV
324 ns
3.2 Vp-p
5
IC2006 qj (RBCK)
1 V/DIV, 200 ns/DIV
324 ns
3.2 Vp-p
ed
IC6601 ej (FIN)
(VIDEO 1 mode)
200 mV/DIV, 100 ns/DIV
224 ns
0.7 Vp-p
ea
IC6671 qg (VOUT1)
(VIDEO 1 mode)
1 V/DIV, 20 µ s/DIV
H
1.5 Vp-p
wj
IC6671 4 (VIN2)
(VIDEO 1 mode)
500 mV/DIV, 20 µ s/DIV
H
0.9 Vp-p
e;
IC6671 qd (VOUT2)
(VIDEO 1 mode)
1 V/DIV, 20 µ s/DIV
H
1.9 Vp-p
wk
IC6671 7 (VIN3)
(VIDEO 1 mode)
500 mV/DIV, 20 µ s/DIV
H
1 Vp-p
wl
IC6671 qa (VOUT3)
(VIDEO 1 mode)
1 V/DIV, 20 µ s/DIV
H
2.2 Vp-p
es
IC6601 1 (CLPO)
(VIDEO 1 mode)
1 V/DIV, 20 µ s/DIV
H
1.4 Vp-p
ef
IC6601 r; (MCKO)
(VIDEO 1 mode)
1 V/DIV, 20 ns/DIV
56 ns
2 Vp-p
– VIDEO Board –
