Sony STR-DE197 Service Manual

24
STR-DE197

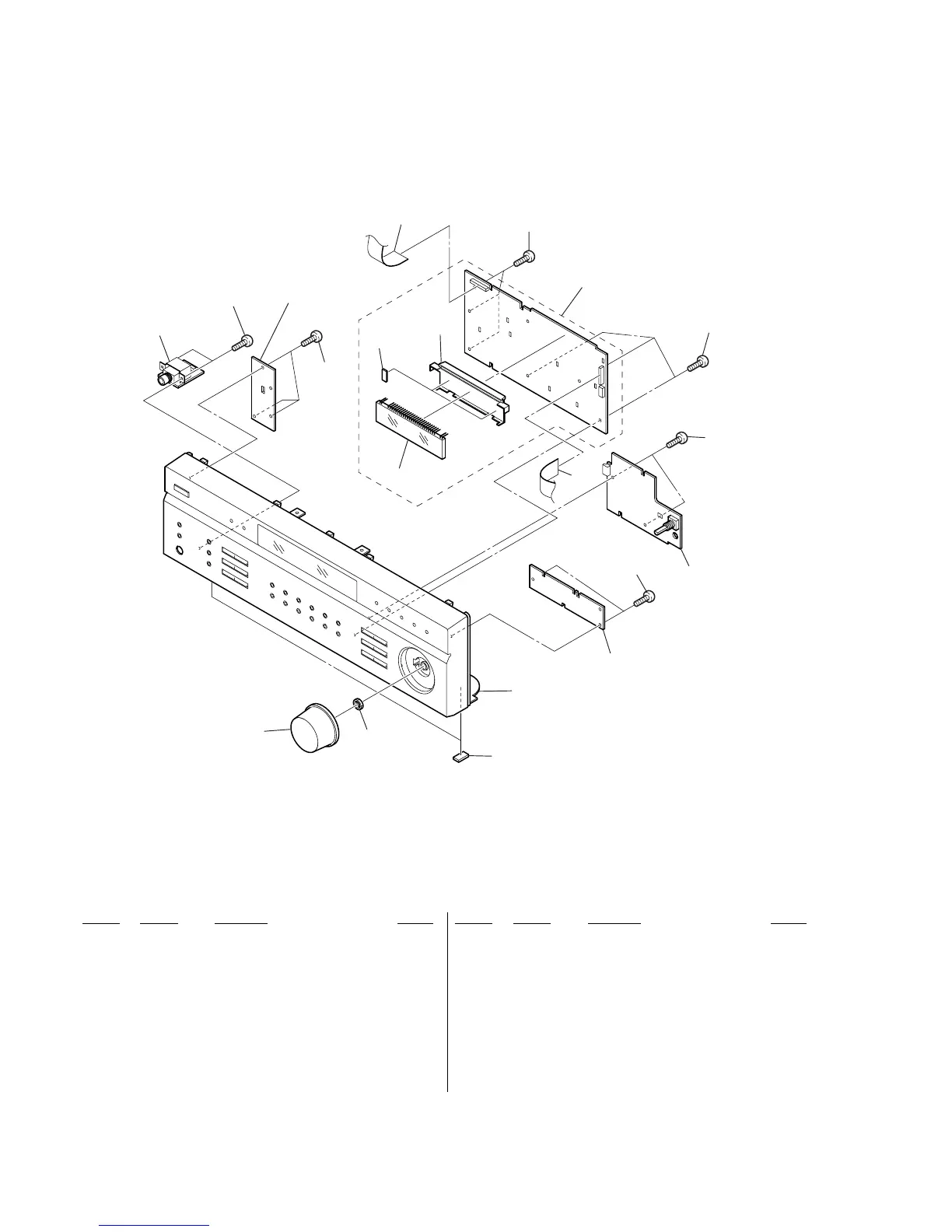

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-2021-462-1 FRONT PANEL ASSY (BLACK) (CND)
51 X-2108-586-1 FRONT PANEL ASSY
(SILVER:for Hair-line Finish) (AEP)
51 X-4956-248-1 FRONT PANEL ASSY (BLACK) (US)
51 X-4956-259-1 FRONT PANEL ASSY (BLACK) (AEP)
51 X-4956-260-1 FRONT PANEL ASSY (SILVER) (AEP)
52 4-977-358-01 CUSHION
53 4-232-113-01 KNOB (VOL) (BLACK)
53 4-232-113-12 KNOB (VOL) (SILVER)
53 4-232-113-31 KNOB (VOL) (SILVER:for Hair-line Finish)
54 4-951-620-01 SCREW (2.6X8), +BVTP
55 1-773-026-11 WIRE (FLAT TYPE) (15 CORE)
56 A-4751-164-A DISPLAY BOARD, COMPLETE (US,CND)
56 A-4751-248-A DISPLAY BOARD, COMPLETE (AEP)
* 57 4-943-107-11 HOLDER (FL TUBE)
* 58 4-921-941-01 CUSHION (FL)
59 1-773-026-11 WIRE (FLAT TYPE) (15 CORE) (US,CND)
59 1-773-060-11 WIRE (FLAT TYPE) (17 CORE) (AEP)
FL201 1-518-970-11 VACUUM FLUORESCENT DISPLAY
52
51
53
54
54
54
54
54
54
55
56
57
58
59
supplied with
RV201
not supplied
(FUNCTION KEY board)
not supplied
(H. PHONE board)
not supplied
(POWER board)
not supplied
(VOLUME board
)
FL201
Ver. 1.2

Sony STR-DE197 Specifications

Audio

Channel Power Rating	100W x 2 (8 ohms, 40 Hz - 20kHz, THD 0.09%)
Sound Fields	Yes

Inputs and Outputs

RCA Audio Inputs	4 (Rear)
RCA Audio Outputs	2 (Rear)
AC Outlet	1 Switched
Antenna Terminal (AM Loop)	1 (Rear)
Antenna Terminal (FM 75 Ohm)	1 (Rear)
Headphone Output	1 (Front)

Power

Power Requirements	AC120V, 60 Hz
Power Consumption (in Operation)	190W
Power Consumption (in Standby)	0.5W

Weight and Dimensions

Weight	15 lbs 7 oz (7kg)
Measurements	16 13/14" x 5 3/14" x 11 8/9" (430 x 132.5 x 302mm)
