Connection and Preparation
4: Connecting Audio-Visual Devices
For notes when connecting audio-visual devices to the HDMI jacks on the receiver, see
“About HDMI features” (page 18).
• This connection is an example. You can connect each HDMI device to any HDMI IN jacks.
• The image quality depends on the type of connecting jack. We recommend you connect your devices
via an HDMI connection if they have HDMI jacks.

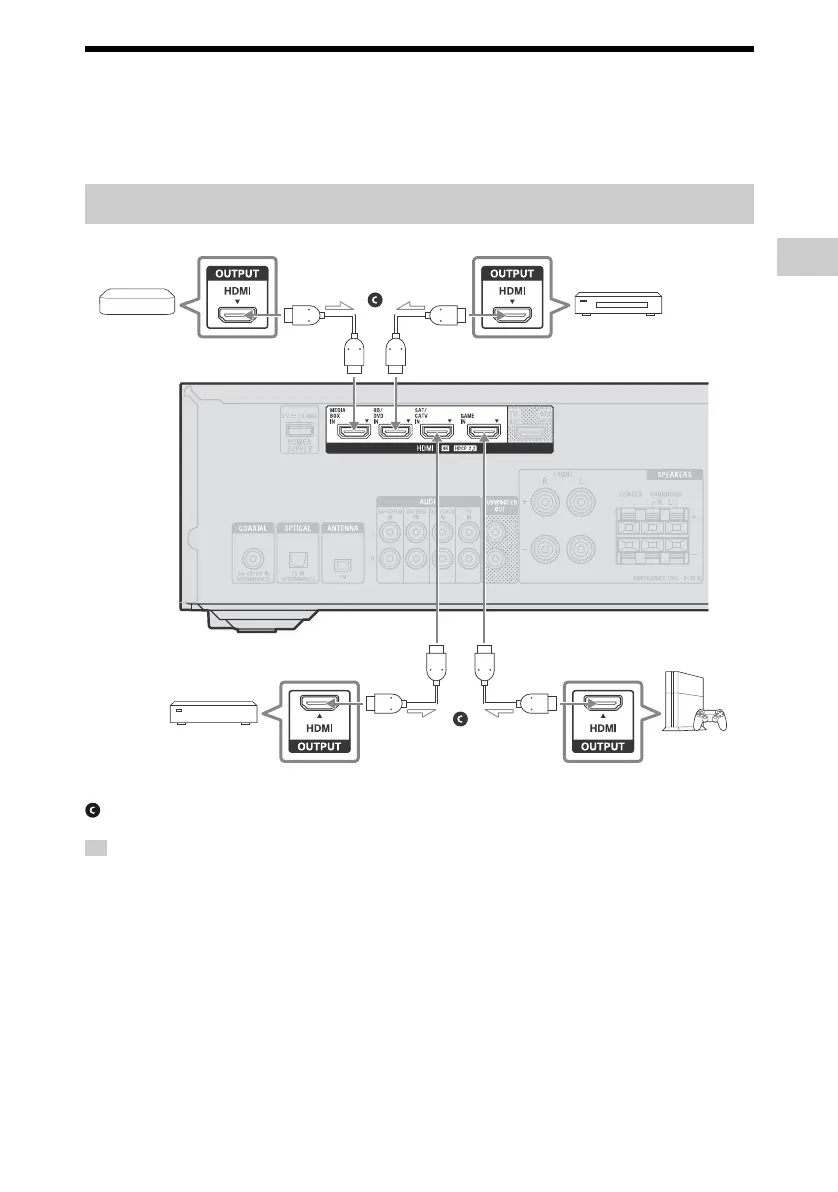

Connecting devices with HDMI jacks
Tip
Game console
such as
PlayStation 4
Ultra HD Blu-ray™
player, Blu-ray Disc™
player, DVD player
Cable box or
satellite box
Audio/Video
signals
HDMI cable (not supplied)
Media box
Audio/Video
signals
Audio/Video
signals
Audio/Video
signals

Sony STR-DH590 Specifications

General

Receiver type	Surround
Output impedance	6 - 16 Ω
Audio output channels	5.2 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	4
Digital audio optical in	1
Headphone connectivity	6.3 mm
Speakers connectivity type	-
Bluetooth	Yes
Ethernet LAN	No
Supported radio bands	FM
Preset stations quantity	30
HDCP version	2.2
Product color	Black
Audio decoders	DSD, DTS 96/24, DTS-HD HR, DTS-HD Master Audio, Dolby Digital, Dolby Dual Mono
Consumer Electronics Control (CEC)	BRAVIA Sync
AC input voltage	120 V
AC input frequency	60 Hz

Weight and Dimensions

Depth	297 mm
Width	430 mm
Height	133 mm
Weight	7100 g

Summary

Connection and Preparation

Deciding on the Speaker System

Guide on choosing speaker system based on number of speakers and subwoofers.

Setting and Connecting Speakers

Instructions for setting up and connecting speakers and subwoofers to the receiver.

Connecting a TV

Procedures for connecting a TV to the receiver via HDMI for audio and video.

Connecting Audio-Visual Devices

How to connect various AV devices like Blu-ray players and game consoles using HDMI.

Connecting the FM Antenna

Guide on connecting the supplied FM wire antenna for radio reception.

Turning on and Performing Easy Setup

Steps to turn on the receiver and perform initial setup using the TV screen.

Setting for HDMI

Instructions for setting HDMI signal format and activating Audio Return Channel (ARC).

Playback

Playing Back Sound and Images on Connected Devices

How to play content from connected AV devices and navigate the home menu.

Playing Back Sound on a BLUETOOTH Device

Steps for pairing and playing audio from a BLUETOOTH device.

Selecting Sound Effects

Guide on choosing different sound fields for an enhanced audio experience.

Menu and Other Functions

Operating Menu on the TV Screen

How to access and navigate the receiver's menu system via the TV screen.

Selecting the Speaker Pattern

How to select the appropriate speaker configuration pattern for your setup.

Reverting to Factory Default Settings

Procedure to restore the receiver to its original factory default settings.

Troubleshooting and Specifications

Troubleshooting

Guide to resolving common operational problems and issues with the receiver.

Precautions

Important safety, operation, cleaning, and replacement precautions for the receiver.

Specifications

Technical details and specifications for the receiver's audio, video, and connectivity features.
