Sony STR-DH720 User Manual

STR-DH720/DH720HP
67
105
105
106
108
105
107
105
102
101
103
104
not supplied
(HP SUPPORT board)
not supplied
(HEADPHONE board)
not supplied
not supplied
(POWER KEY board)
ND151
EN151
EN181
EN180
supplied with
EN180
supplied with
EN181
supplied with
EN151
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

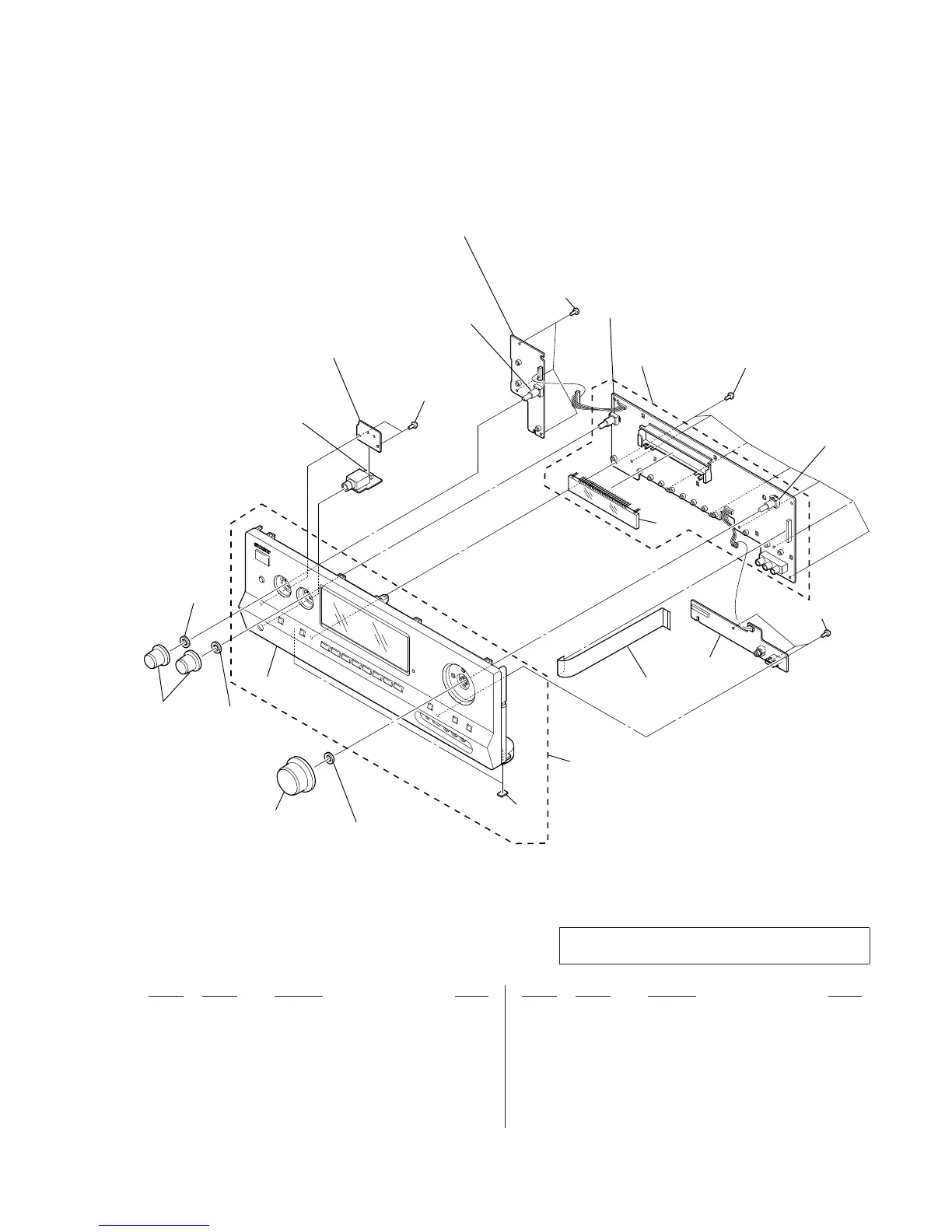

6-3. FRONT PANEL SECTION
101 X-2560-468-1 FRONT PANEL ASSY (US, CND)
101 X-2560-566-1 FRONT PANEL ASSY (ECE)
101 X-2581-533-1 FRONT PANEL ASSY (STR-DH720HP)
102 4-977-358-01 CUSHION
103 4-124-321-01 KNOB, VOLUME (G53)
104 4-125-404-01 KNOB, MENU (G73)
105 3-087-053-01 +BVTP2.6 (3CR)
106 A-1796-464-A DISPLAY BOARD, COMPLETE
107 A-1796-471-A USB BOARD, COMPLETE
108 1-828-391-51 WIRE (FLAT TYPE) (25 CORE)
EN151 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
EN180 1-418-817-21 ENCODER, ROTARY (TONE)
EN181 1-418-817-21 ENCODER, ROTARY (INPUT SELECTOR)
ND151 1-483-110-11 VACUUM FLOURESCENT DISPLAY
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.

Sony STR-DH720 Specifications

General

Display	VFL
Equalizer	Yes
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1)
Apple docking compatibility	Not supported
Graphical user interface (GUI)	No
Audio output channels	7.1 channels
Power output per channel (1KHz@8 Ohm)	200 W
Power output per channel (20-20KHz@8 Ohm)	170 W
HDMI in	3
Audio (L/R) in	5
Digital audio coaxial in	1
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	0
Multichannel audio input type	RCA, Terminals
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Wi-Fi	-
Supported radio bands	AM, FM
Preset stations quantity	60
Optical drive type	Blu-Ray player

Weight and Dimensions

Depth	322 mm
Width	430 mm
Height	157.5 mm
Weight	8000 g
