Sony STR-DH720 User Manual

STR-DH720/DH720HP
7

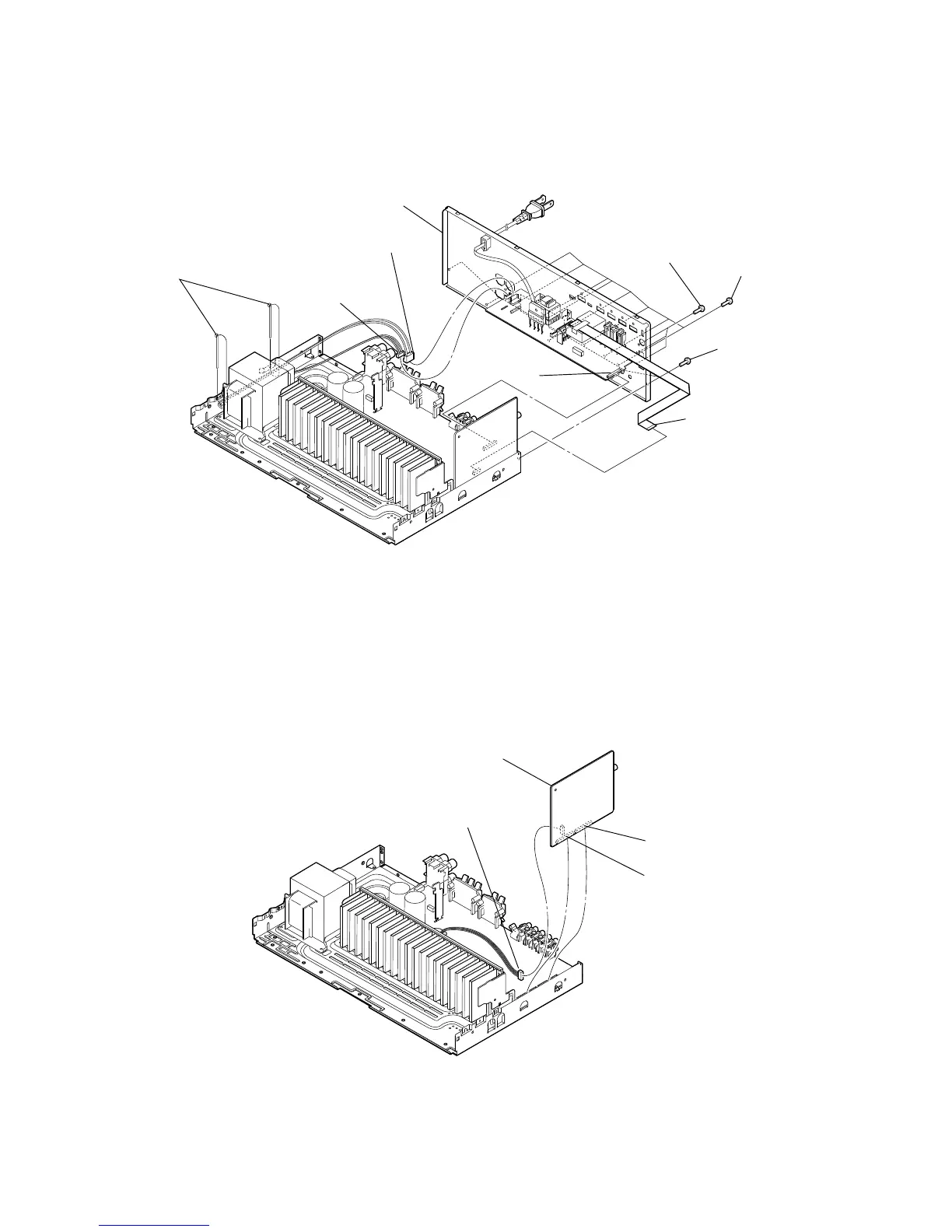

2-4. BACK PANEL SECTION
2-5. DIGITAL BOARD
1 cut the cable tie
2 CNP902 (2P)
3 CN906 (4P)
5 five screws
(+BVTP 3 u 8)
4 wire (flat type)
(9 core) (CN2003)
(US, CND)
7 eight screws
(+BVTP 3 u 8)
8 CN271 (14P)
6 three screws
(+BVTP 3 u 8)
9 back panel section
1 CN2501 (4P)
2 CN2114 (19P)
2 CN2105 (19P)
3 DIGITAL board

Sony STR-DH720 Specifications

General

Display	VFL
Equalizer	Yes
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1)
Apple docking compatibility	Not supported
Graphical user interface (GUI)	No
Audio output channels	7.1 channels
Power output per channel (1KHz@8 Ohm)	200 W
Power output per channel (20-20KHz@8 Ohm)	170 W
HDMI in	3
Audio (L/R) in	5
Digital audio coaxial in	1
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	0
Multichannel audio input type	RCA, Terminals
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Wi-Fi	-
Supported radio bands	AM, FM
Preset stations quantity	60
Optical drive type	Blu-Ray player

Weight and Dimensions

Depth	322 mm
Width	430 mm
Height	157.5 mm
Weight	8000 g
