26
GB
D:\NORM'S JOB\SONY HA\SO0086\STR-DN610_PMRF 2\GB\GB04CON_STR-DN610-U2.fm masterpage: Left
STR-DN610
4-167-824-13(1)

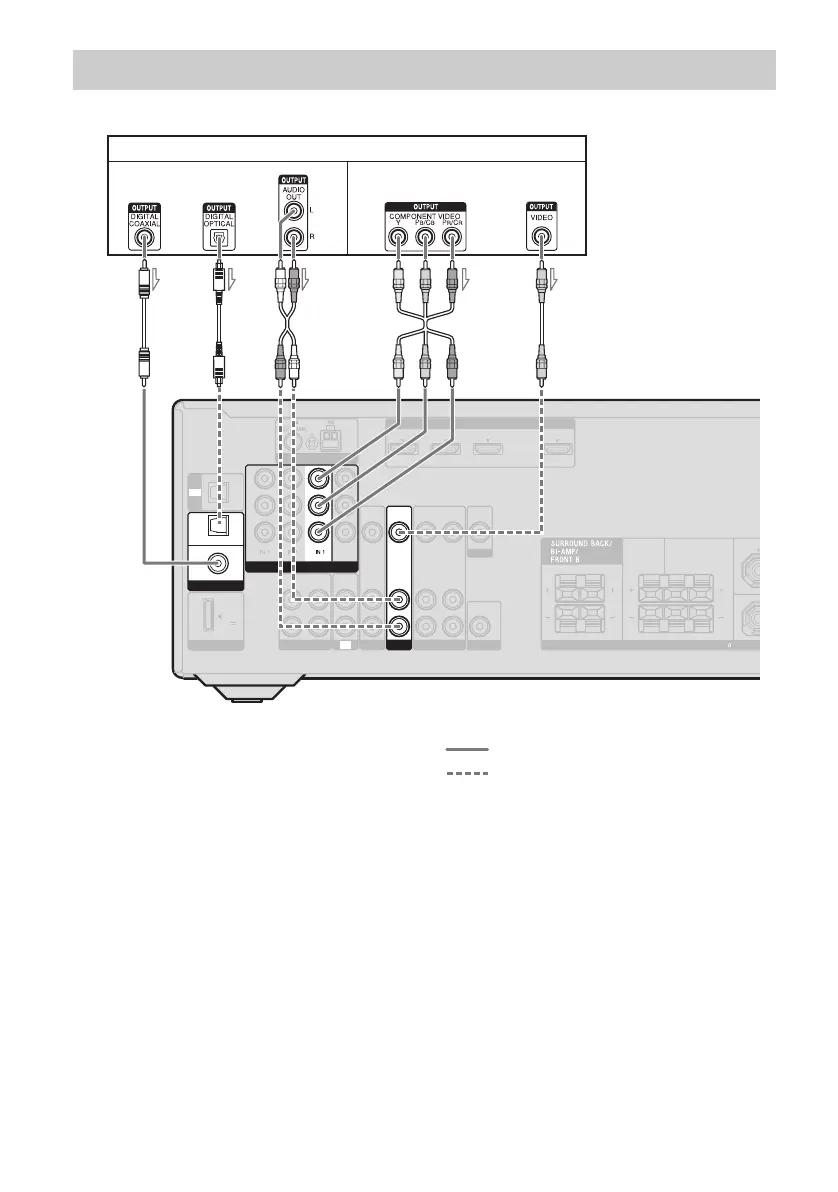

The following illustration shows how to connect a Blu-ray disc player.
A Coaxial digital cord (not supplied)
B Optical digital cord (not supplied)
C Audio cord (not supplied)
D Component video cord (not supplied)
E Video cord (not supplied)
Recommended connection
Alternative connection
* When you connect a component equipped with a
OPTICAL/COAXIAL jack, set “A. ASSIGN” in
the AUDIO menu (page 67).
Notes
• The initial setting of the COMPONENT VIDEO
IN 1 jacks are Blu-ray disc player. If you want to
connect your Blu-ray disc player to the
COMPONENT VIDEO IN 2 or IN 3 jacks, set
“V. ASSIGN” in the VIDEO menu (page 67).
• To input multi channel digital audio from the
Blu-ray disc player, set the digital audio output
setting on the Blu-ray disc player. Refer to the
operating instructions supplied with the Blu-ray
disc player.
Connecting a Blu-ray disc player
LR
LR
R
L
CENTER SURROUND
ANTENNA
TV OUT1 NI2 NI3 NI
HDMI
ASSIGNABLE (INPUT ONLY)
ARC
TV
IN
OPTICAL
DMPORT
DC5V
0.7A MAX
VIDEO
IN
VIDEO
OUT
VIDEO
IN
MONITOR
VIDEO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
SAT/CATV
AUDIO
IN
AUDIO
IN
SA-CD/CD/CD-R
VIDEO 1
AUDIO
OUT
AUDIO
OUT
TV
SUBWOOFER
SPEAKERS
IMPEDANCE USE 8-16
P
B
/
C
B
P
R
/
C
R
Y
MONITOR
OUT
ASSIGNABLE (INPUT ONLY)
VIDEO
IN
BD
AUDIO
IN
DIGITAL
(ASSIGNABLE)
SAT/
CATV
IN
OPTICAL
DVD
COAXIAL
IN
COMPONENT VIDEO
R
L
Blu-ray disc player
DE
Video signalsAudio signals
A* CB*
To Next Page
