Connections

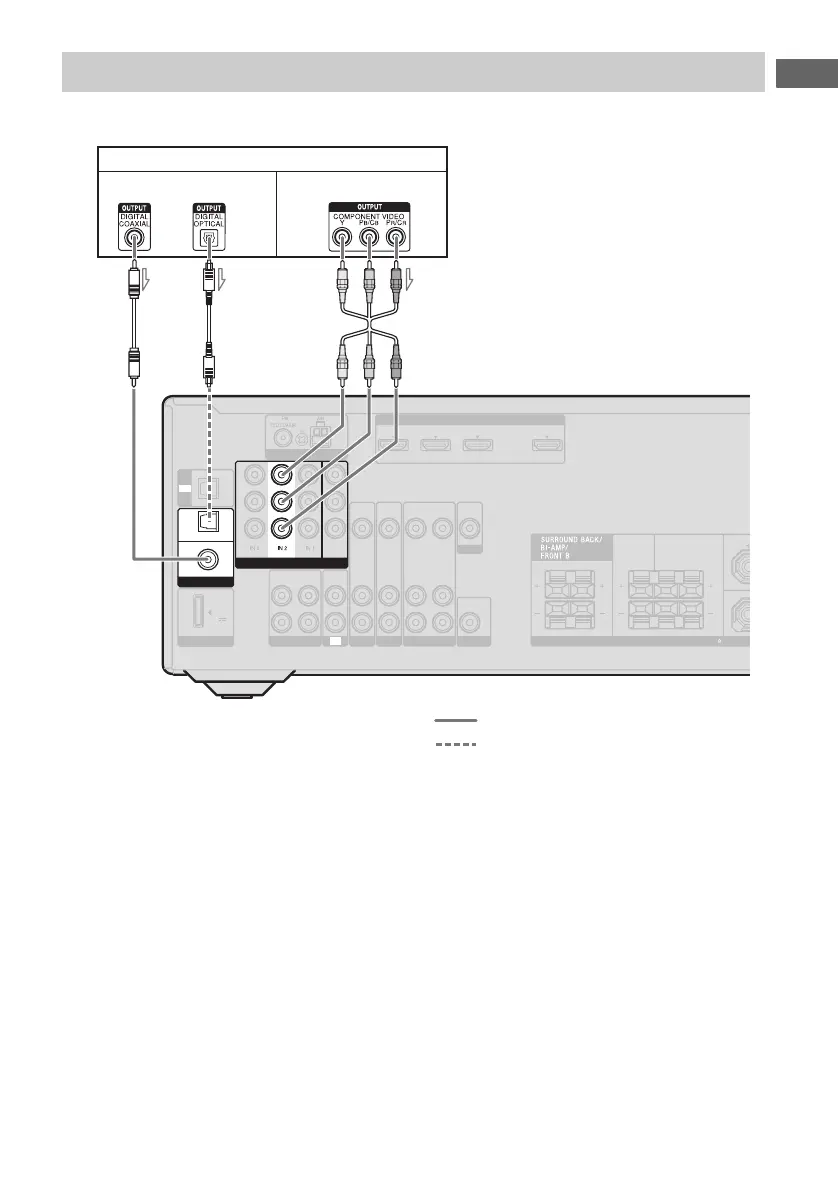

The following illustration shows how to connect a DVD player or DVD recorder.
A Coaxial digital cord (not supplied)
B Optical digital cord (not supplied)
C Component video cord (not supplied)
Recommended connection
Alternative connection
* When you connect a component equipped with an
OPTICAL jack, set “A. ASSIGN” in the AUDIO
menu (page 67).
Notes
• The initial setting for the DVD input button is as
follows:
– RM-AAU073: DVD player
– RM-AAU075: DVD recorder
Be sure to change the initial setting of the DVD
input button on the remote so that you can use the
button to control your DVD player or DVD
recorder. For details, see “Changing the input
button assignments” (page 69).
• You can also rename the DVD input so that it can
be displayed on the receiver’s display. For details,
see “Naming inputs” (page 38).
• The initial setting of the COMPONENT VIDEO
IN 2 jacks are DVD player or DVD recorder. If you
want to connect your DVD player or DVD recorder
to the COMPONENT VIDEO IN 1 or IN 3 jacks,
set “V. ASSIGN” in the VIDEO menu (page 67).
• To input multi channel digital audio from the DVD
player or DVD recorder, set the digital audio
output setting on the DVD player or DVD recorder.
Refer to the operating instructions supplied with
the DVD player or DVD recorder.
Connecting a DVD player, DVD recorder
LR
LR
R
L
CENTER SURROUND
ANTENNA
TV OUT1 NI2 NI3 NI
HDMI
ASSIGNABLE (INPUT ONLY)
ARC
TV
IN
OPTICAL
DMPORT
DC5V
0.7A MAX
MONITOR
OUT
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
MONITOR
VIDEO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
BD
SAT/CATV
AUDIO
IN
AUDIO
IN
SA-CD/CD/CD-R
R
VIDEO 1
L
AUDIO
IN
AUDIO
OUT
AUDIO
OUT
TV
SUBWOOFER
SPEAKERS
IMPEDANCE USE 8-16
SAT/
CATV
IN
OPTICAL
DIGITAL
COAXIAL
(ASSIGNABLE)
P
B
/
C
B
P
R
/
C
R
Y
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
DVD
IN
DVD player, DVD recorder
Video signalsAudio signals
CAB*
