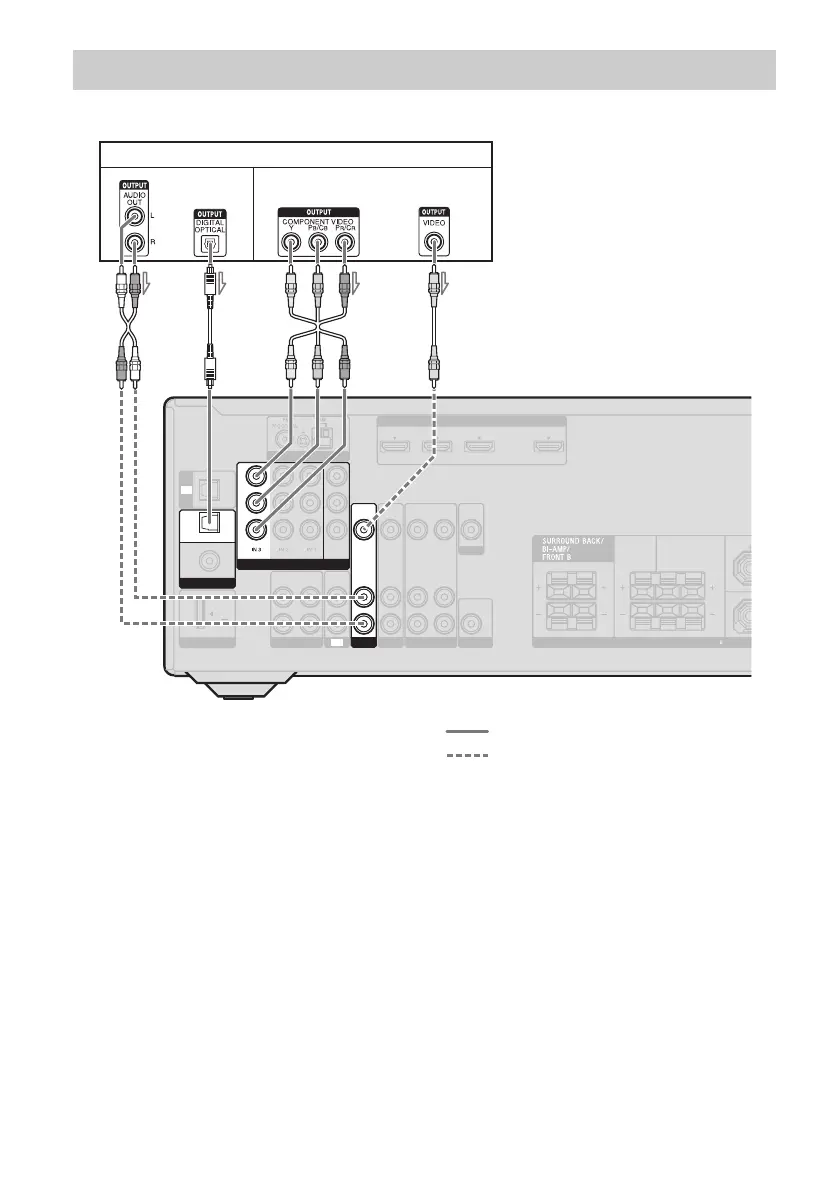

The following illustration shows how to connect a satellite tuner or cable TV tuner.
A Audio cord (not supplied)
B Optical digital cord (not supplied)
C Component video cord (not supplied)
D Video cord (not supplied)
Recommended connection
Alternative connection
Note
The initial setting of the COMPONENT VIDEO IN
3 jacks are satellite tuner or cable TV tuner. If you
want to connect your satellite tuner or cable TV
tuner to the COMPONENT VIDEO IN 1 or IN 2
jacks, set “V. ASSIGN” in the VIDEO menu
(page 67).
Connecting a satellite tuner, cable TV tuner
LR
LR
R
L
CENTER SURROUND
ANTENNA
TV OUT1 NI2 NI3 NI
HDMI
ASSIGNABLE (INPUT ONLY)
ARC
TV
IN
OPTICAL
DMPORT
DC5V
0.7A MAX
MONITOR
OUT
VIDEO
IN
VIDEO
OUT
VIDEO
IN
MONITOR
VIDEO
OUT
AUDIO
IN
AUDIO
OUT
BD
AUDIO
IN
AUDIO
IN
SA-CD/CD/CD-R
VIDEO 1
AUDIO
IN
AUDIO
OUT
AUDIO
OUT
TV
SUBWOOFER
SPEAKERS
IMPEDANCE USE 8-16
SAT/
CATV
IN
OPTICAL
DVD
IN
DIGITAL
COAXIAL
(ASSIGNABLE)
VIDEO
IN
AUDIO
IN
SAT/CATV
P B /
C B
P R /
C R
Y
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
R
L
DC
Audio signals Video signals
B
Satellite tuner, cable TV tuner
A

Sony STR-DN610 Specifications

General

AirPlay	No
Display	VFL
Equalizer	Yes
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, DTS, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1)
Apple docking compatibility	Not supported
Impedance	8 Ω
Receiver type	Surround
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (20-20KHz@8 Ohm)	100 W
Supported radio bands	AM, FM
Digital audio optical in	1
Component video (YPbPr/YCbCr) in	3
Connectivity technology	Wired
Speakers connectivity type	-
Headphone connectivity	3.5 mm

Weight and Dimensions

Depth	324.5 mm
Width	430 mm
Height	157.5 mm
