Fela
tom
o(-tapdiatersiecela

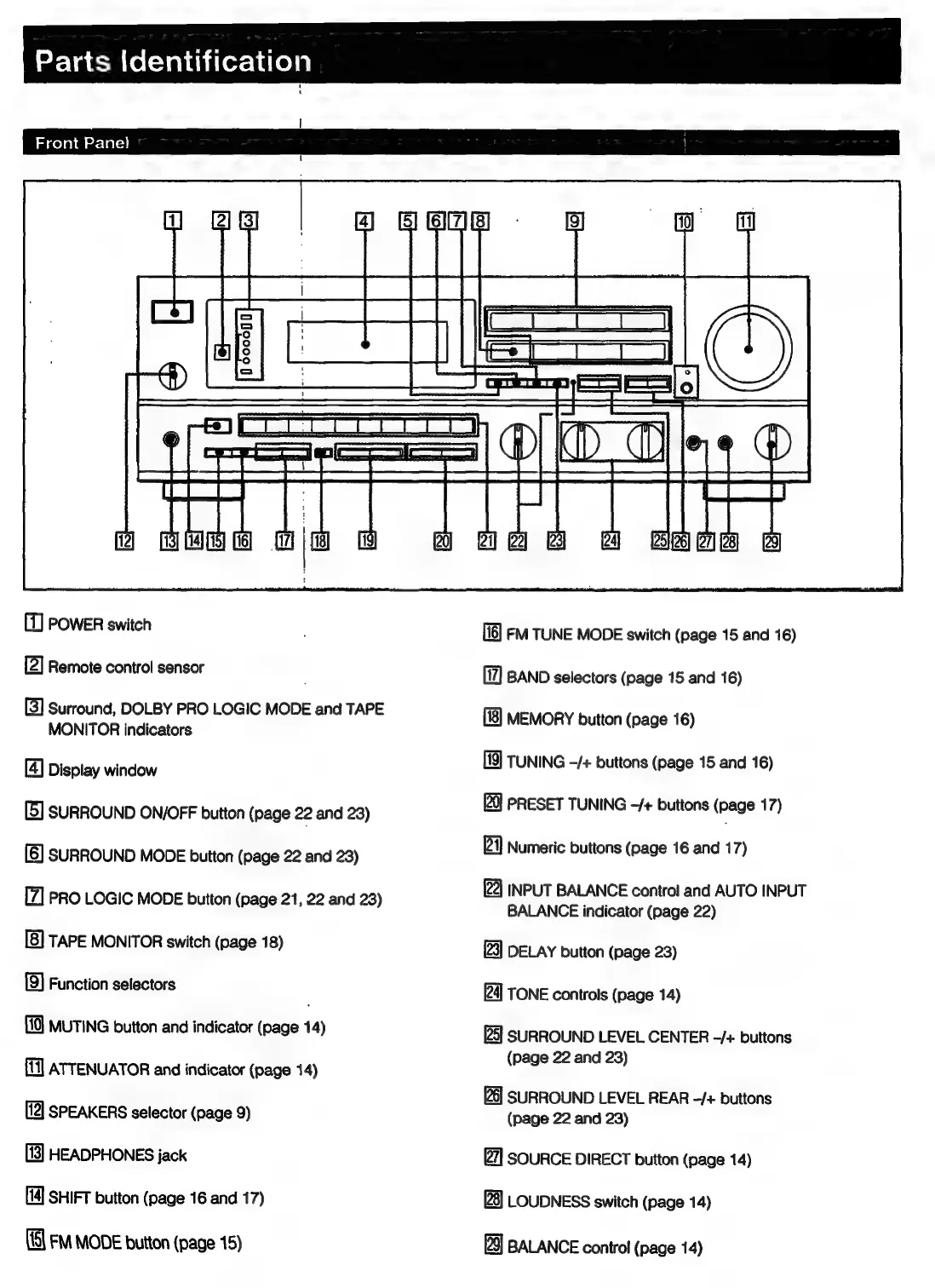

Front
Panel
2]
(MGS
fel
Gite]
|
(1
POWER
switch
2]
Remote
control
sensor
(3)
Surround,
DOLBY
PRO
LOGIC
MODE
and
TAPE
MONITOR
indicators
Display
window
[5]
SURROUND
ON/OFF
button
(page
22
and
23)
[6]
SURROUND
MODE
button
(page
22
and
23)
PRO
LOGIC
MODE
button
(page
21,
22
and
23)
TAPE
MONITOR
switch
(page
18)
[9]
Function
selectors
MUTING
button
and
indicator
(page
14)
ATTENUATOR
and
indicator
(page
14)
|
SPEAKERS
selector
(page
9)
(3)
HEADPHONES
jack
SHIFT
button
(page
16
and
17)
FM
MODE
button
(page
15)
20)
i2t} (22)
23}
«=
24}
«fe
ff26)
(27)
(28)
a
[6]
FM
TUNE
MODE
switch
(page
15
and
16)
BAND
selectors
(page
15
and
16)
MEMORY
button
(page
16)
TUNING
-/+
buttons
(page
15
and
16)
PRESET
TUNING
-/+
buttons
(page
17)
a
Numeric
buttons
(page
16
and
17)
[22]
INPUT
BALANCE
control
and
AUTO
INPUT
BALANCE
indicator
(page
22)
[23]
DELAY
button
(page
23)
TONE
controls
(page
14)
[25]
SURROUND
LEVEL
CENTER
-/+
buttons
(page
22
and
23)
SURROUND
LEVEL
REAR
-/+
buttons
(page
22
and
23)
SOURCE
DIRECT
button
(page
14)
LOUDNESS
switch
(page
14)
BALANCE
control
(page
14)
