Sony STR-GX69ES User Manual

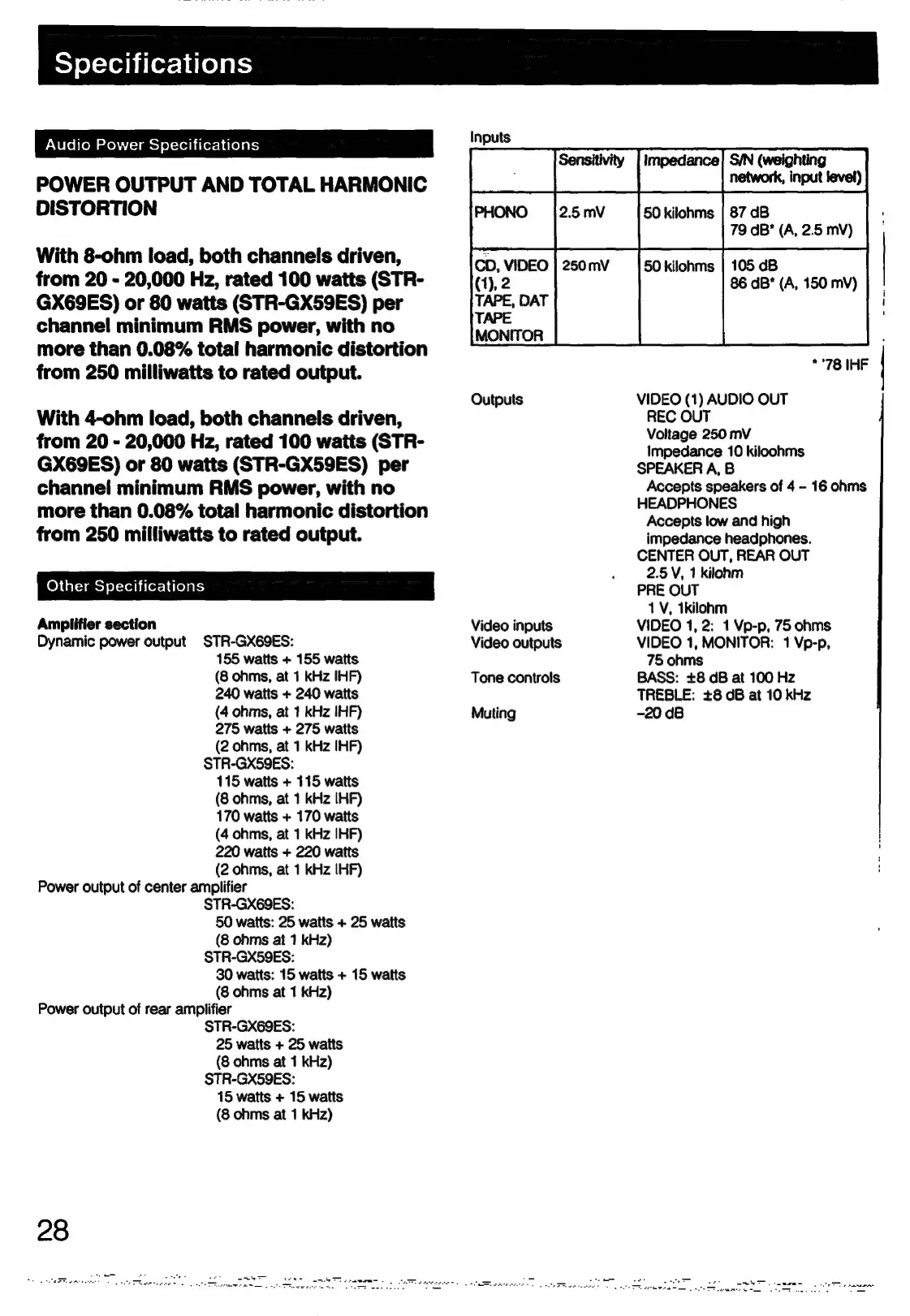

Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION
With 8-ohm load, both channels driven,
from 20 - 20,000 Hz, rated 100 watts (STR-
GX69ES) or 80 watts (STR-GX59ES) per
channel minimum RMS power, with no
more than 0.08% total harmonic distortion
from 250 milliwatts to rated output.
With 4-ohm load, both channels driven,
from 20 - 20,000 Hz, rated 100 watts (STR-
GX69ES) or 80 watts (STR-GX59ES) per
channel minimum RMS power, with no
more than 0.08% total harmonic distortion
from 250 milliwatts to rated output.
Other Specifications
Amplifier section
Dynamic power output STR-GX69ES:
155 watts + 155 watts
(8 ohms, at 1 kHz IHF)
240 watts + 240 watts
(4 ohms, at 1 kHz IHF)
275 watts + 275 watts
(2 ohms, at 1 kHz IHF)
STR-GXSQ9ES:
115 watts + 115 watts
(8 ohms, at 1 kHz IHF)
170 watts + 170 watts
(4 ohms, at 1 kHz IHF)
220 watts + 220 watts
(2 ohms, at 1 kHz IHF)
Power output of center amplifier
STR-GX69ES:
50 watts: 25 watts + 25 watts
(8 ohms at 1 kHz)
STR-GX59ES:
30 watts: 15 watts + 15 watts
(8 ohms at 1 kHz)
Power output of rear amplifier
STR-GX69ES:
25 watts + 25 watts
(8 ohms at 1 kHz)
STR-GX59ES:
15 watts + 15 watts
(8 ohms at 1 kHz)
Inputs
Sensitivity | Impedance} S/N (weighting
network, input level)
2.5 mV 87 dB
79 dB? (A, 2.5 mV)
105 dB
86 dB* (A, 150 mV)
*'78 IHF
Outputs VIDEO (1) AUDIO OUT
REC OUT
Voltage 250 mV
Impedance 10 kiloohms
SPEAKER A, B
Accepts speakers of 4 - 16 ohms
HEADPHONES
Accepts low and high
impedance headphones.
CENTER OUT, REAR OUT
2.5 V, 1 kilohm
PRE OUT
1V, ikilohm
VIDEO 1, 2: 1 Vp-p, 75 ohms
VIDEO 1, MONITOR: 1 Vp-p,
75 ohms
BASS: +8 dB at 100 Hz
TREBLE: +8 dB at 10 kHz
-20 dB
Video inputs
Video outputs
Tone controls
Muting
