39
STR-K785
6 3-363-099-11 SCREW (CASE 3 TP2) (EXCEPT AEP)
6 3-070-883-41 SCREW, TAPPING (AEP)
7 4-245-939-61 CASE
8 1-829-004-11 WIRE (FLAT TYPE) (19 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
RV102 1-418-725-41 ENCODER, ROTARY (12 TYPE)
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
Ref. No. Part No. Description Remark
14-232-113-31 KNOB (VOL)
24-977-358-01 CUSHION
3 X-2176-019-1 FRONT PANEL ASSY (AUS, SP, SP6)
3 X-2178-989-1 FRONT PANEL ASSY (AEP)
43-087-053-01 +BVTP2.6 (3CR)
5 A-1157-676-A DISPLAY BOARD, COMPLETE

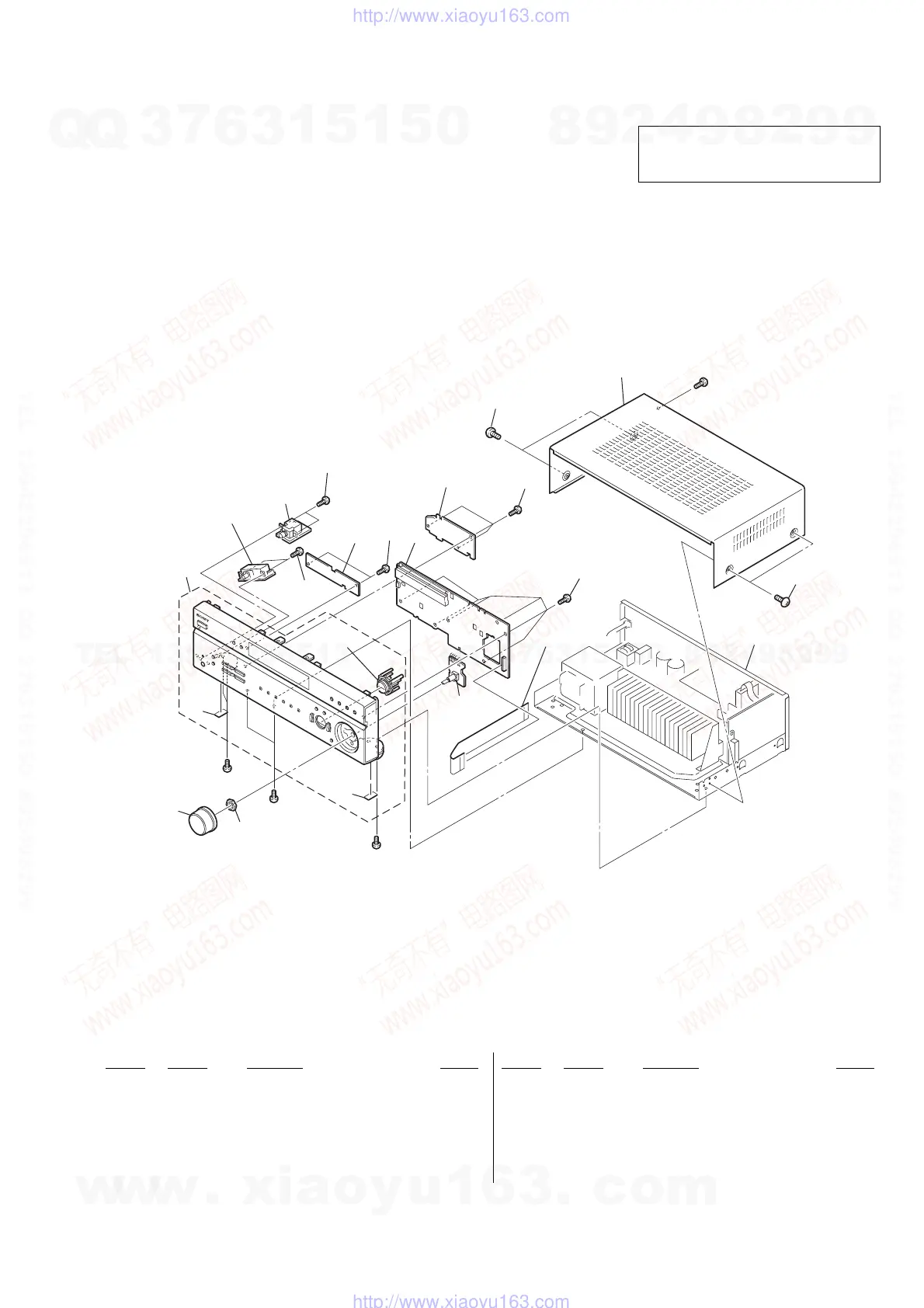

5-1. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
• Abbreviation
AUS : Australian model
SP : Singapore model
SP6 : Singapore and Malaysia models
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
1
2
2
3
6
6
7
#1
#1
4
4
4
4
5
4
8
#1
#1
supplied
with RV102
not
supplied
RV102
chassis section
not
supplied
not
supplied
not
supplied
not
supplied
Ver. 1.2
