STR-K785
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4953-448-1 FOOT ASSY
52 3-701-748-00 CLAMP
53 3-077-331-21 +BV3 (3-CR)
54 A-1157-640-A STANDBY BOARD, COMPLETE
55 4-249-675-01 +BV SUMITITE S 4X6 ROUND
56 A-1157-673-A DIGITAL BOARD, COMPLETE (AEP)
56 A-1157-682-A DIGITAL BOARD, COMPLETE (SP, SP6)
56 A-1157-687-A DIGITAL BOARD, COMPLETE (AUS)
57 3-905-609-01 SCREW (TRANSISTOR)
58 3-703-244-21 CORD BUSH (2104)
059 1-696-848-81 CORD, POWER (AUS)
059 1-777-071-83 CORD, POWER (SP, SP6, AEP)
60 A-1274-494-A MAIN BOARD, COMPLETE (AUS, SP, SP6)
60 A-1317-964-A MAIN BOARD, COMPLETE (AEP)
61 1-828-963-11 WIRE (FLAT TYPE) (11 CORE) (AUS, SP, SP6)
61 1-828-980-11 WIRE (FLAT TYPE) (15 CORE) (AEP)
62 1-828-936-11 WIRE (FLAT TYPE) (5 CORE)

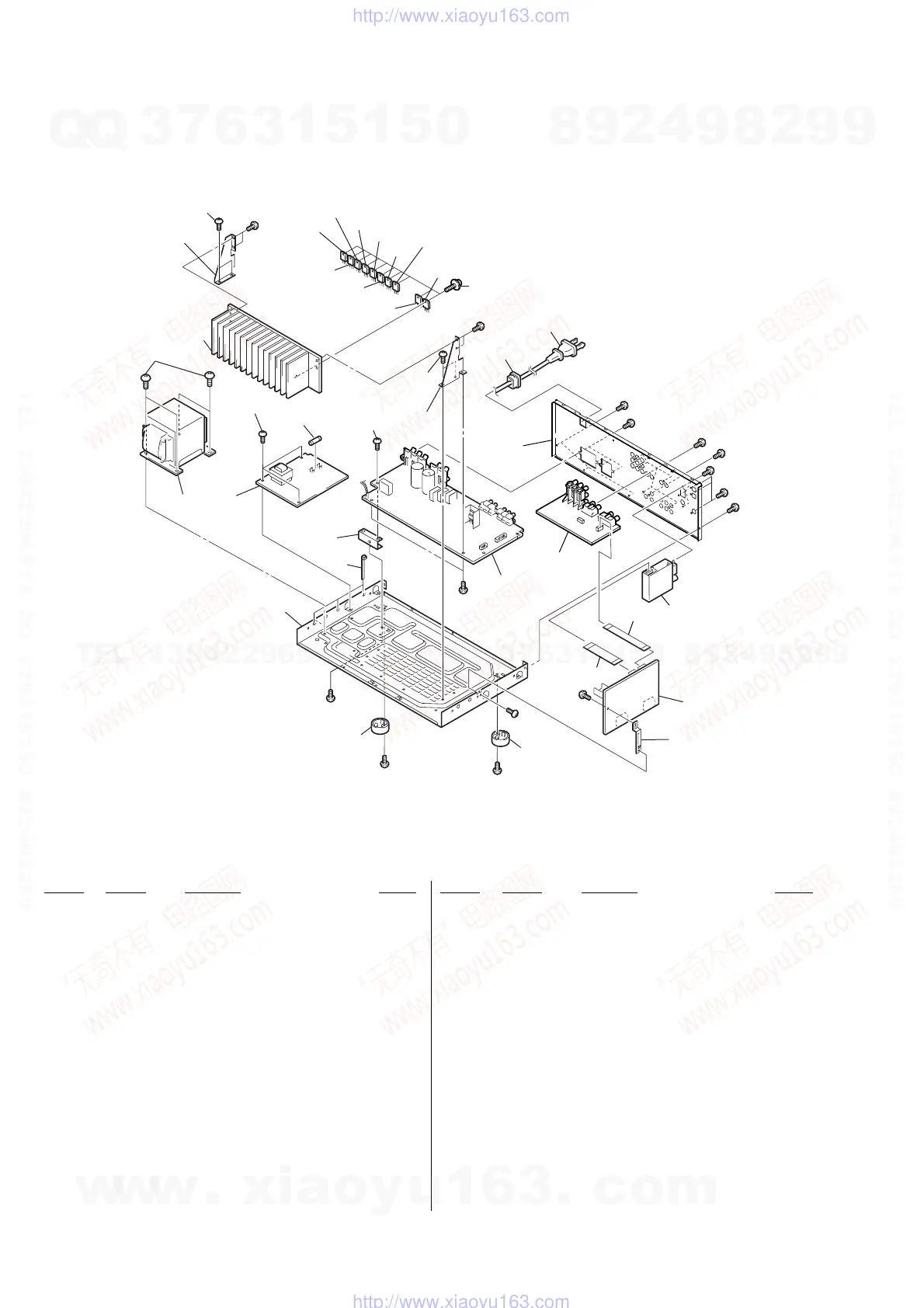

5-2. CHASSIS SECTION
0 F901 1-532-464-33 FUSE (T2.5AL/250V)
Q503 6-702-390-01 IC MN2488-OPY-MK
Q504 6-702-391-01 IC MP1620-OPY-MK
Q553 6-702-390-01 IC MN2488-OPY-MK
Q554 6-702-391-01 IC MP1620-OPY-MK
Q603 6-702-390-01 IC MN2488-OPY-MK
Q604 6-702-391-01 IC MP1620-OPY-MK
Q653 6-702-390-01 IC MN2488-OPY-MK
Q654 6-702-391-01 IC MP1620-OPY-MK
Q703 6-702-390-01 IC MN2488-OPY-MK
Q704 6-702-391-01 IC MP1620-OPY-MK
0 T901 1-443-916-11 POWER TRANSFORMER (AUS, AEP)
0 T901 1-443-918-11 POWER TRANSFORMER (SP, SP6)
TN1 1-693-676-11 TUNER (AEP)
TN1 1-693-678-11 TUNER (AUS, SP, SP6)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
