1616
STR-NX1/NX3

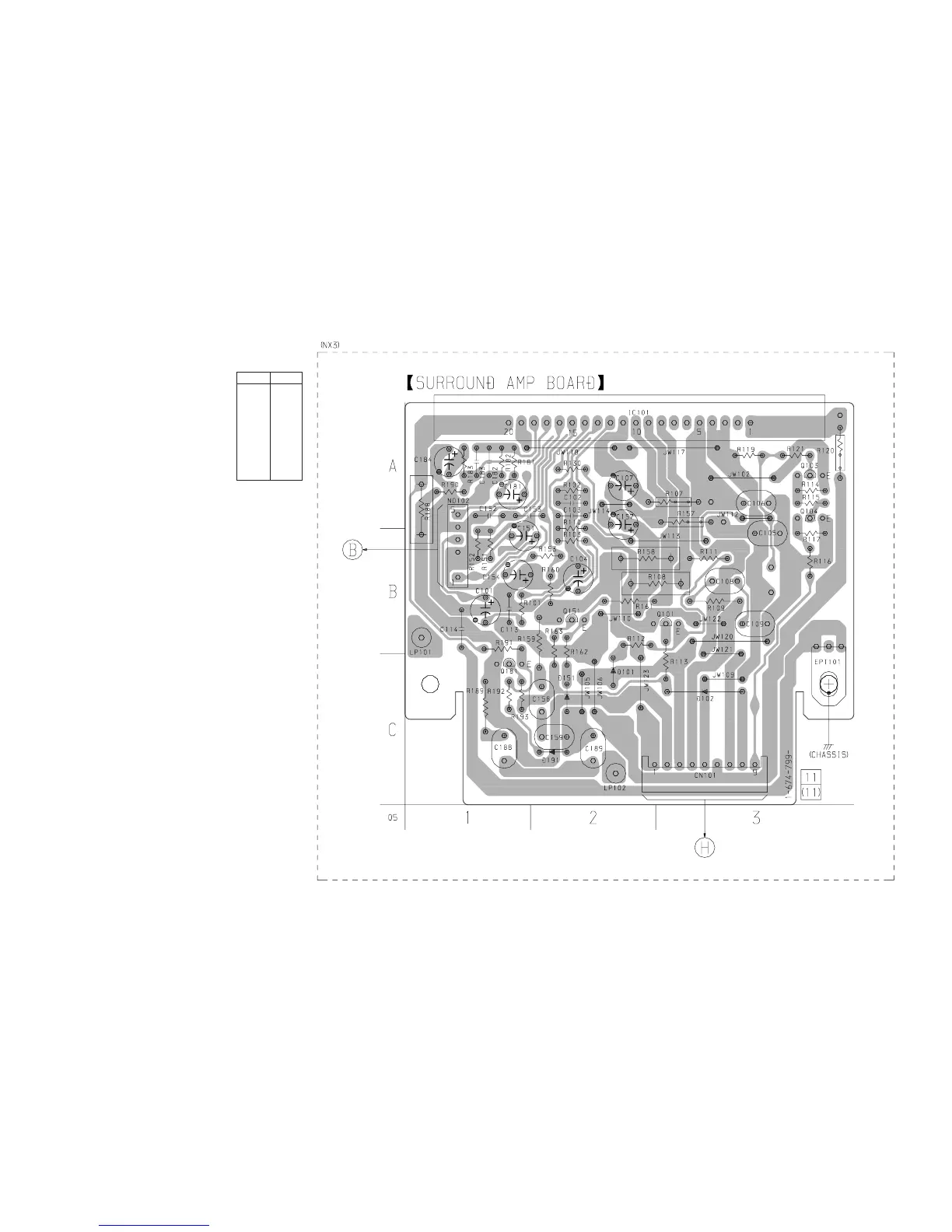

5-6. PRINTED WIRING BOARD – SURROUND AMP Board – • See page 11 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D101 C-2
D102 C-3
D151 C-2
D191 C-2
IC101 A-2
Q101 B-3
Q103 A-3
Q104 A-3
Q151 B-2
Q181 C-1
(Page 15)
(Page 18)
