(1) GENERAL SECTION
SECTION 6

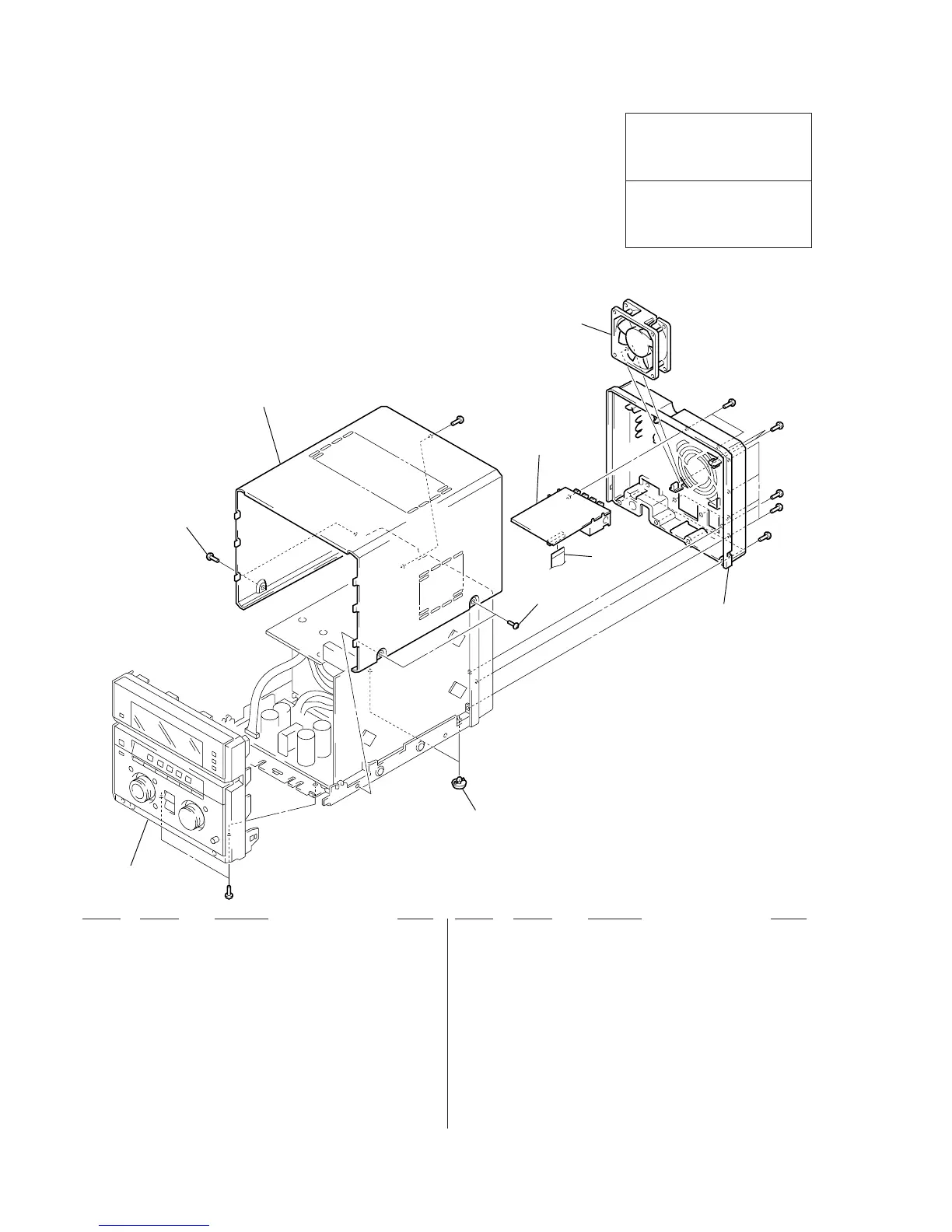

EXPLODED VIEWS
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-363-099-11 SCREW (CASE 3 TP2)
2 4-221-365-11 CASE
3 X-4952-291-1 PANEL ASSY, BACK (NX1: AEP, UK, KR)
3 X-4952-292-1 PANEL ASSY, BACK (NX1: US, CND)
3 X-4952-293-1 PANEL ASSY, BACK (NX1: MY, SP, JE)
3 X-4952-294-1 PANEL ASSY, BACK (NX3: AEP, UK)
3 X-4952-295-1 PANEL ASSY, BACK (NX3: US, CND)
3 X-4952-296-1 PANEL ASSY, BACK (NX3: MY, SP)
3 X-4952-355-1 PANEL ASSY, BACK (NX1: TH, KR)
3 X-4952-356-1 PANEL ASSY, BACK (NX3: AUS, KR)
4 1-751-688-11 WIRE (FLAT TYPE) (13 CORE)
(NX1: US, CND, TH, KR/NX3: US, CND, KR, AUS)
4 1-773-011-11 WIRE (FLAT TYPE) (15 CORE)
(AEP, UK, MY, SP, JE)
5 4-965-822-01 FOOT
6 1-233-545-11 TUNER PACK (FM/AM) (NX1: TH, KR/NX3: KR,
AUS)
6 1-233-546-11 TUNER PACK (FM/MW/SW) (MY, SP)
6 1-693-443-11 TUNER PACK (FM/AM) (AEP, UK)
6 1-693-445-11 TUNER PACK (FM/AM) (US, CND)
6 1-693-465-11 TUNER PACK (FM/MW/SW) (NX1: JE)
M401 1-763-117-11 FAN, DC
• Abbreviation
AUS : Australian model
CND : Canadian model
JE : Tourist model
KR : Korean model
MY : Malaysia model
SP : Singapore model
TH : Thai model
M401
#1
#4
#1
#1
#1
#1
#1
Front panel ass’y
2
1
6
4
1
5
3
To Next Page
