SECTION 4
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
AUS : Australian model.
SP : Singapore model.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
— 23 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

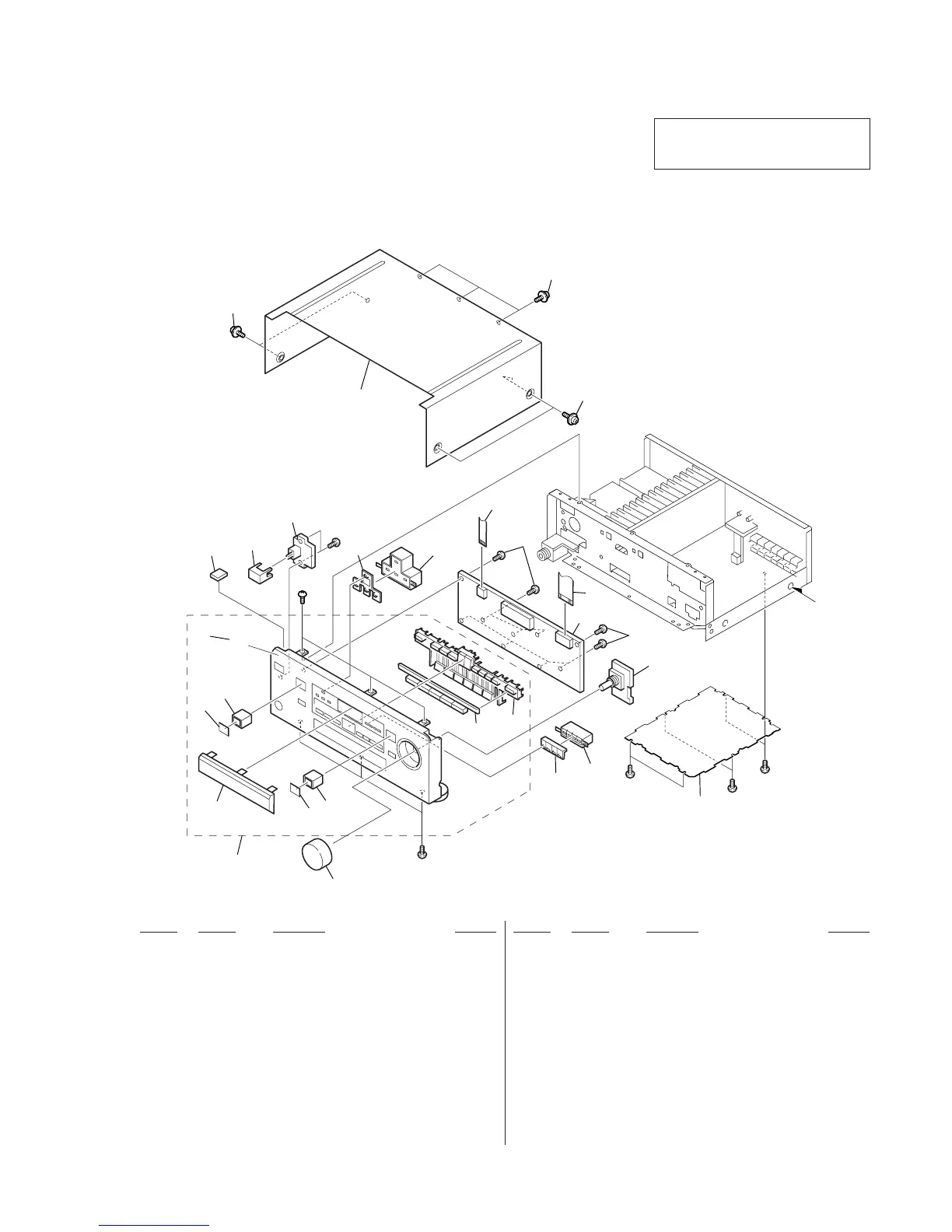

4-1. FRONT PANEL SECTION
1 4-999-844-01 KNOB (VOL)
2 X-4949-434-3 PANEL ASSY, FRONT
3 4-979-942-13 WINDOW
* 4 4-982-462-01 HOUSE, LED
5 4-963-404-02 EMBLEM (5-A), SONY
6 4-979-941-01 BUTTON (SUR)
7 4-979-935-01 BUTTON (F-6)
8 4-980-109-51 BUTTON (P-M)
* 9 1-670-206-11 SW BOARD
* 10 4-982-814-01 LENS (SUR)
* 11 4-982-816-01 BOX (SUR), LED
* 12 4-979-945-01 CASE (414532)
13 3-710-901-11 SCREW, TAPPING
14 1-769-867-11 WIRE (FLAT TYPE) (5 CORE)
15 4-951-620-01 SCREW (2.6 × 8), +BVTP
16 1-773-217-11 WIRE (FLAT TYPE) (25 CORE)
* 17 A-4407-853-A DISPLAY BOARD, COMPLETE
* 18 1-669-721-11 VOL BOARD
* 19 4-979-946-01 PLATE (432), BOTTOM
* 20 4-982-817-01 BOX (CON), LED
* 21 4-982-815-01 LENS (CON)
22 4-628-006-01 CUSHION
23 4-979-937-11 FILTER (SUPER WOOFER)
24 4-979-937-01 FILTER (DOLBY PRO LOGIC)
SONY
13
13
12
13
11
10
9
8
5
4
3
2
1
6
7
21
20
19
18
15
15
14
16
17
a
a
22
24
4
23
#1
#1
#1
#1
#1
#1
To Next Page
