Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 51 4-935-964-21 WASHER
* 52 A-4392-944-A MAIN BOARD, COMPLETE
53 X-4948-228-1 SCREW ASSY
* 54 4-923-873-01 BRACKET, CORD STOPPER
* 55 3-703-244-00 BUSHING (2104), CORD
56 3-704-515-41 SCREW (BV/RING)
57 4-947-010-01 SCREW, FEEDER FIXED
58 1-506-113-00 SHORT PLUG
* 59 4-990-696-01 PANEL, BACK (F3000)
* 59 4-990-696-11 PANEL, BACK (F3000ES)
60 4-970-145-01 ESCUTCHEON (P)
61 4-970-146-01 BUTTON
* 62 A-4392-950-A PHONO BOARD, COMPLETE
* 63 4-986-722-01 PLATE, BOTTOM
64 X-4947-892-1 FOOT ASSY
* 65 4-988-215-01 INSULATOR
66 3-831-441-XX CUSHION, SPEAKER
67 3-531-576-11 RIVET
68 4-992-453-01 INSULATOR
* 69 1-666-040-11 AC OUTLET BOARD
! CNP1 1-558-568-21 CORD, POWER
! T801 1-431-369-11 TRANSFORMER, POWER
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number speci-
fied.

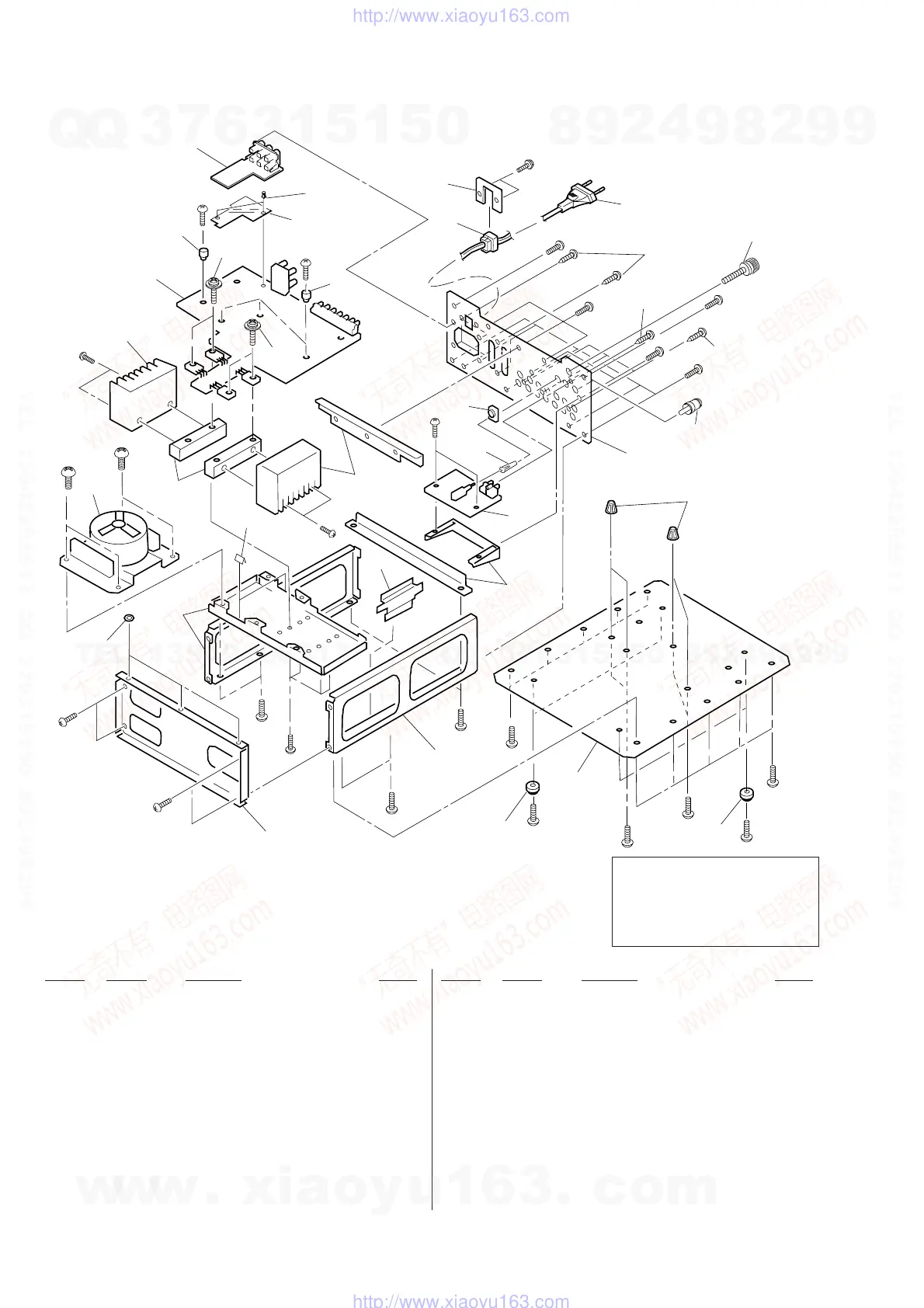

4-2. CHASSIS SECTION
68
#6
69
67
not supplied
53
52
53
not
supplied
#6
not
supplied
#3
#5
#2
60
61
55
54
#4
#4
#4
#4
56
#4
#4
58
56
56
57
not supplied
51
66
#3
62
#4
#8
#7
#7
64
63
#8
64
#4
not supplied
#4
#4
not supplied
65
#9
#4
#4
#4
not supplied
#5
T801
not supplied
not supplied
not supplied
59
