SECTION 4
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number
specified.

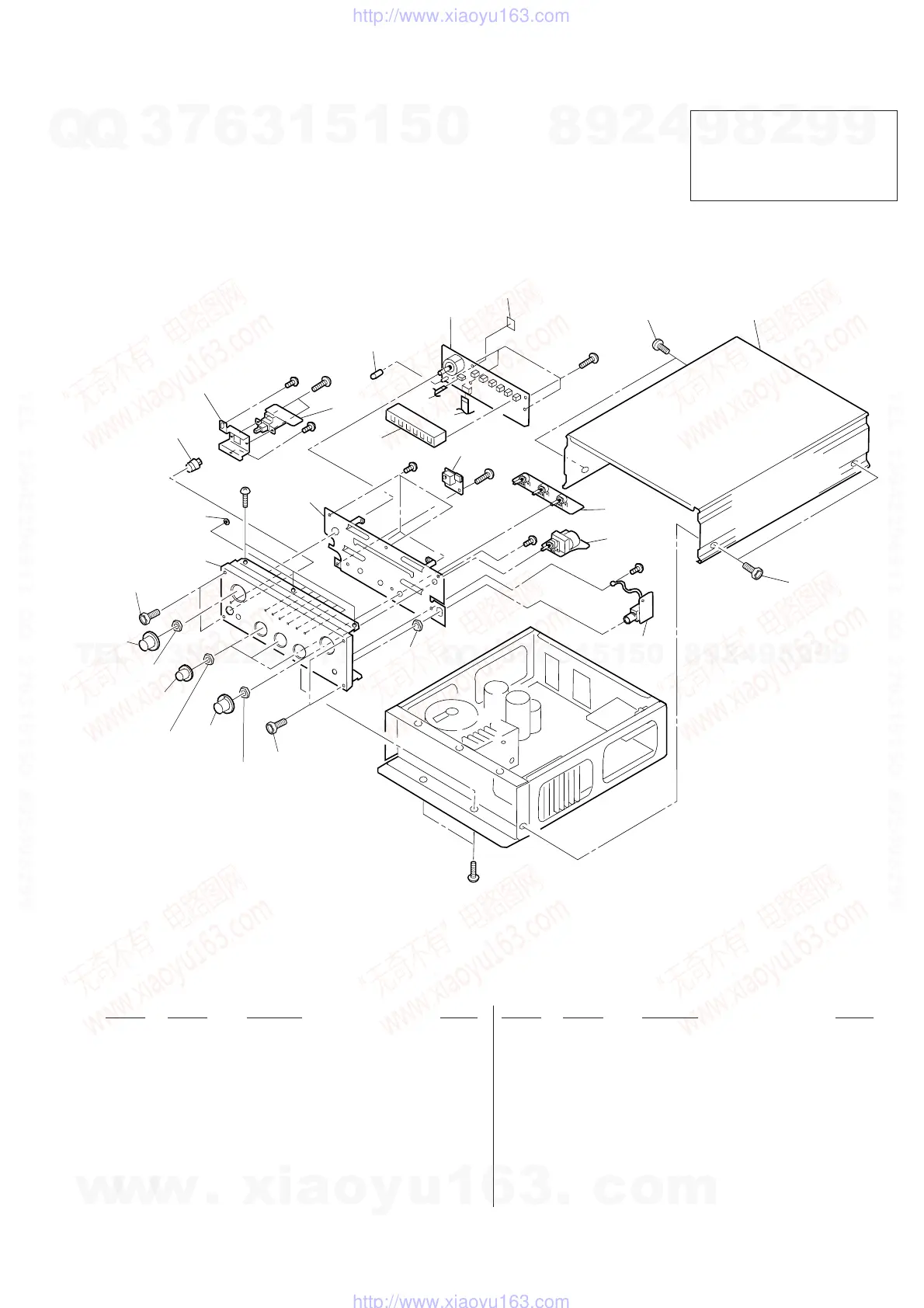

4-1. FRONT PANEL SECTION
Supplied
with RV304
Supplied
with J301
16
1
#2
11
10
#2
#1
19
12
13
9
not supplied
8
#1
#4
6
1
not supplied
#1
not supplied
14
#2
15
17
#1
#1
1
18
#4
1
2
Supplied
with RV301,
RV302, RV303
Supplied
with S901
3
4
5
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-988-742-11 SCREW (M3X8), HEXAGON SOCKET
2 4-986-728-01 KNOB (VOL)
3 4-986-729-01 KNOB (TONE)
4 4-986-728-11 KNOB (VOL)
5 X-4947-788-1 PANEL SUB ASSY, FRONT (F3000)
5 X-4948-711-1 PANEL SUB ASSY, FRONT (F3000ES)
* 6 4-986-734-01 LENS, LED
8 X-4947-759-1 BUTTON ASSY, POWER
* 9 1-663-769-11 AC SW BOARD
* 10 4-989-314-01 TUBE (LED)
* 11 A-4392-951-A PANEL BOARD, COMPLETE
12 1-777-740-11 WIRE (FLAT TYPE) (4 CORE)
13 1-777-739-11 WIRE (FLAT TYPE) (9 CORE)
* 14 1-663-770-11 RM BOARD
* 15 1-663-766-11 TONE BOARD
* 16 4-986-716-01 CASE
* 17 1-663-767-11 VOL BOARD
* 18 1-663-768-11 HP BOARD
19 3-846-312-01 SPACER
