2020
TA-S9D

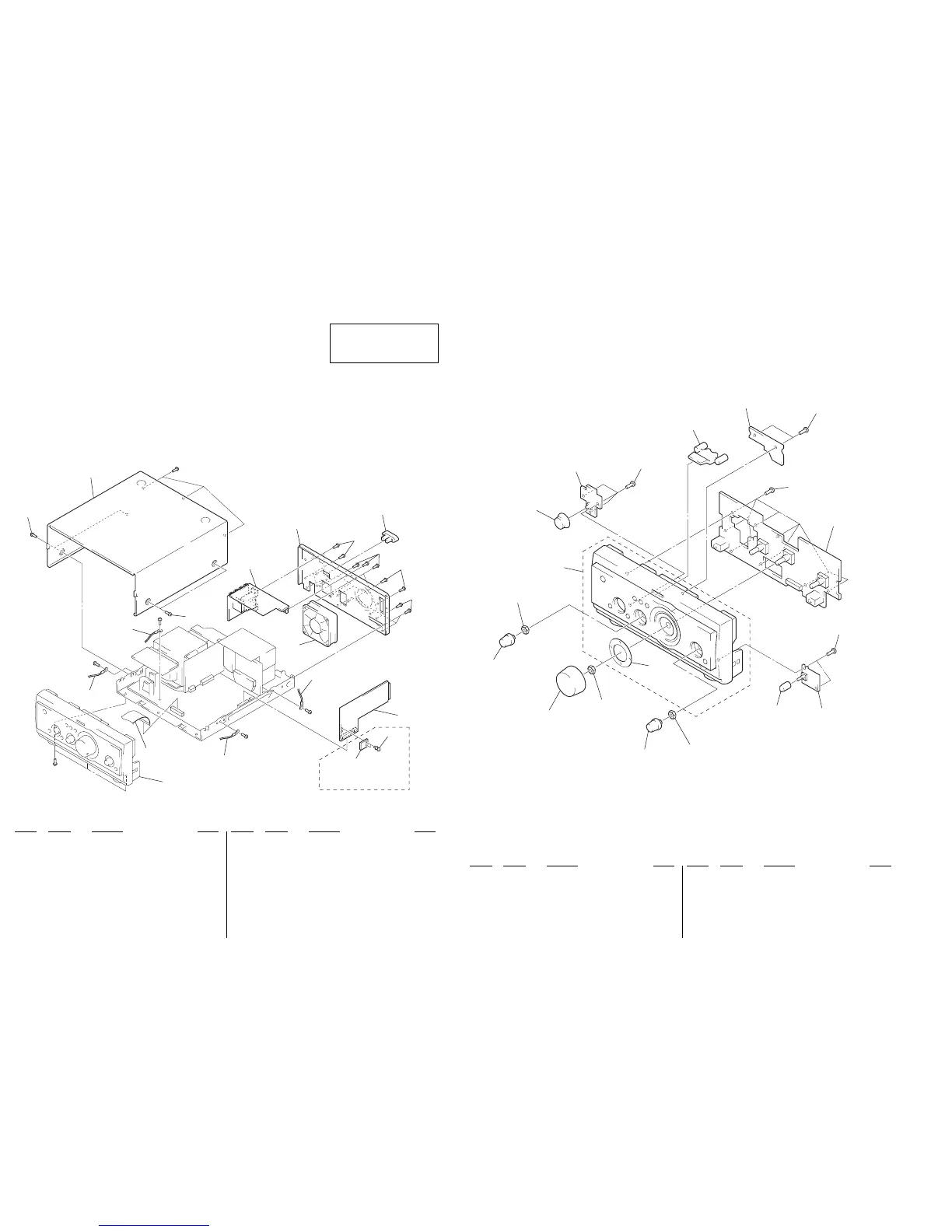

6-1. CASE SECTION
SECTION 6
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
6-2. FRONT PANEL SECTION
#4
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
Front panel section
2
2
1
5
7
8
4
6
3
not supplied
(EXCEPT AEP, UK)
(included in
FRONT AMP board)
M1
not supplied
not supplied
51
51
53
52
54
59
56
supplied with S702
supplied with S703
supplied with S701
zC
zA
zB
55
56
57
56
56
58
(including zA,
zB, zC)
• Abbreviation
AUS : Australian model
EA : Saudi Arabia model
KR : Korean model
MX : Mexican model
SP : Singapore model
TH : Thailand model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 1-773-178-11 WIRE (FLAT TYPE) (23 CORE) (AEP, UK)
1 1-773-210-11 WIRE (FLAT TYPE) (25 CORE)
(EXCEPT AEP, UK)
2 3-363-099-21 SCREW (CASE 3 TP2)
3 4-232-336-11 CASE (AEP, UK)
3 4-232-336-71 CASE (EXCEPT AEP, UK)
4 4-232-348-01 PANEL (DVD), BACK (AEP, UK)
4 4-232-348-41 PANEL (DVD), BACK (SP)
4 4-232-348-51 PANEL (DVD), BACK (EA)
4 4-232-348-61 PANEL (DVD), BACK (AUS)
4 4-232-348-71 PANEL (DVD), BACK (TH)
4 4-232-348-81 PANEL (DVD), BACK (E)
4 4-232-348-91 PANEL (DVD), BACK (MX)
4 4-233-563-01 PANEL (DVD), BACK (KR)
5 1-680-751-11 SUB TRANS BOARD
0 6 1-526-794-11 OUTLET, AC (AEP, UK, EA, SP, AUS)
0 6 1-526-882-00 OUTLET, AC (E, TH, MX)
0 6 1-815-114-11 OUTLET, AC (KR)
7 1-680-755-11 RELAY BOARD
8 3-531-576-11 RIVET (EXCEPT AEP, UK)
M1 1-763-072-11 FAN, D. C.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-232-342-01 KNOB (FUNC)
52 4-232-338-01 KNOB (VOL)
53 X-4953-682-1 PANEL ASSY, FRONT (AEP, UK)
53 X-4953-683-1 PANEL ASSY, FRONT (EXCEPT AEP, UK)
54 4-232-341-01 SHEET (VOL)
55 4-232-343-01 BUTTON (ENTER)
56 4-951-620-01 SCREW (2.6X8), +BVTP
57 4-232-344-01 INDICATOR (BLUE)
58 A-4727-056-A PANEL BOARD, COMPLETE (TH)
58 A-4727-061-A PANEL BOARD, COMPLETE (AEP, UK)
58 A-4727-073-A PANEL BOARD, COMPLETE
(E, EA, SP, KR, MX, AUS)
59 4-232-340-01 KNOB (MIC) (EXCEPT AEP, UK)
To Next Page
