21
TA-SA300WR
SECTION 5
EXPLODED VIEWS
1 4-161-024-11 PANEL, FRONT
2 4-161-029-01 BUTTON (PWR) (\/1)
3 3-087-053-01 +BVTP2.6 (3CR)
4 4-161-025-11 PANEL, BOTTOM (L)
5 4-208-361-01 PANEL, SIDE (L)
6 4-208-363-01 CASE (WLK4)
7 4-208-366-01 PANEL, SIDE (R)
8 4-161-026-02 PANEL, BOTTOM (R)
9 3-077-331-11 +BV3 (3-CR)
#1 7-685-146-11 SCREW +P 3X8 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model
IT : Italian model

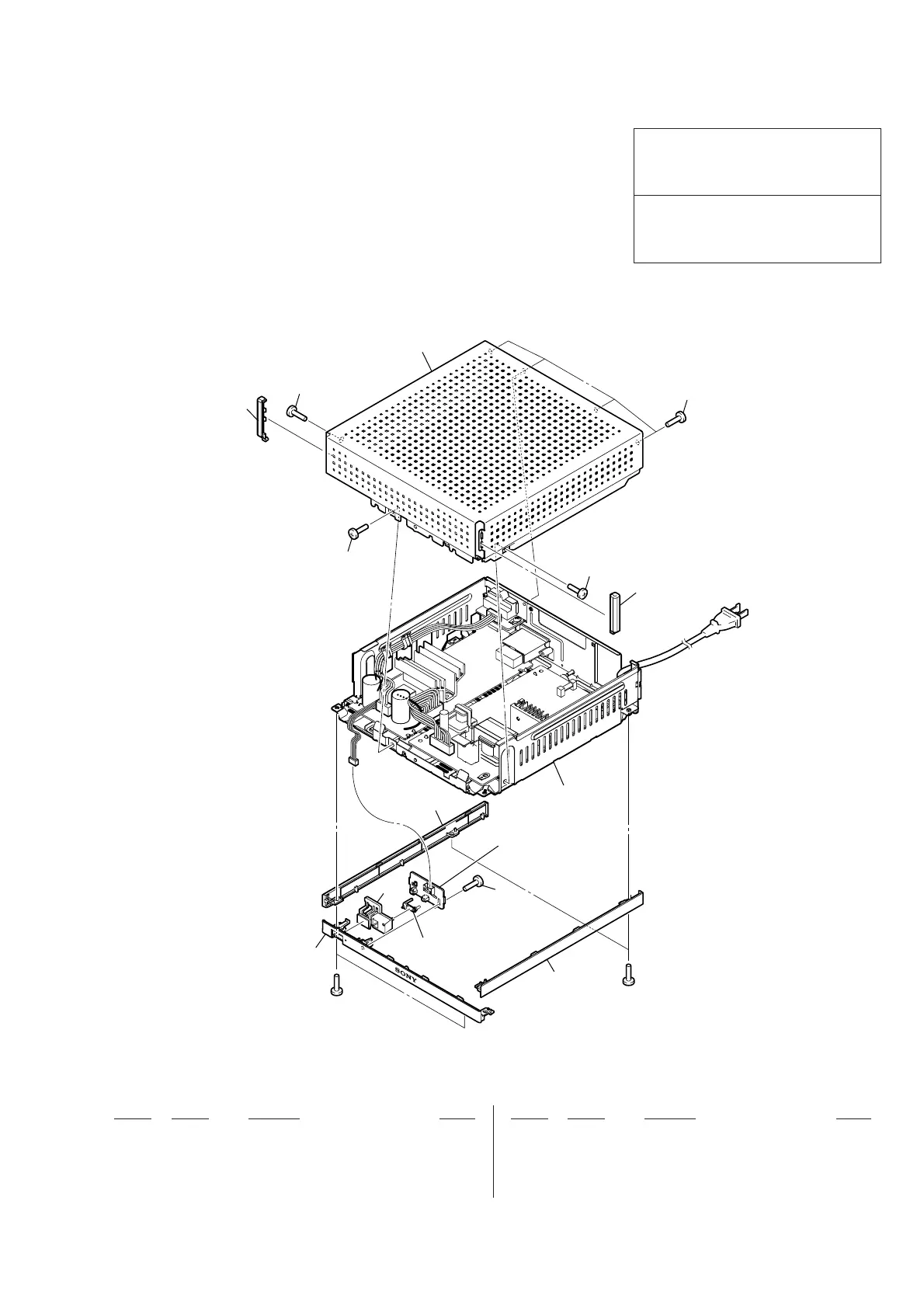

5-1. PANEL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
2
3
4
5
6
7
8
main section
not supplied
not supplied
(WLK4-PANEL board)
1
#1
#1
9
9
9
9
Ver. 1.1
To Next Page
