TA-SA300WR
6
1 screw
(P3 u 8)
5 bottom panel (L)
3 connector
(CN304)
5 bottom panel (R)
2
4 front panel block
1 screw
(P3 u 8)
1 two screws
(P3 u 8)
– Bottom view –
SECTION 2
DISASSEMBLY

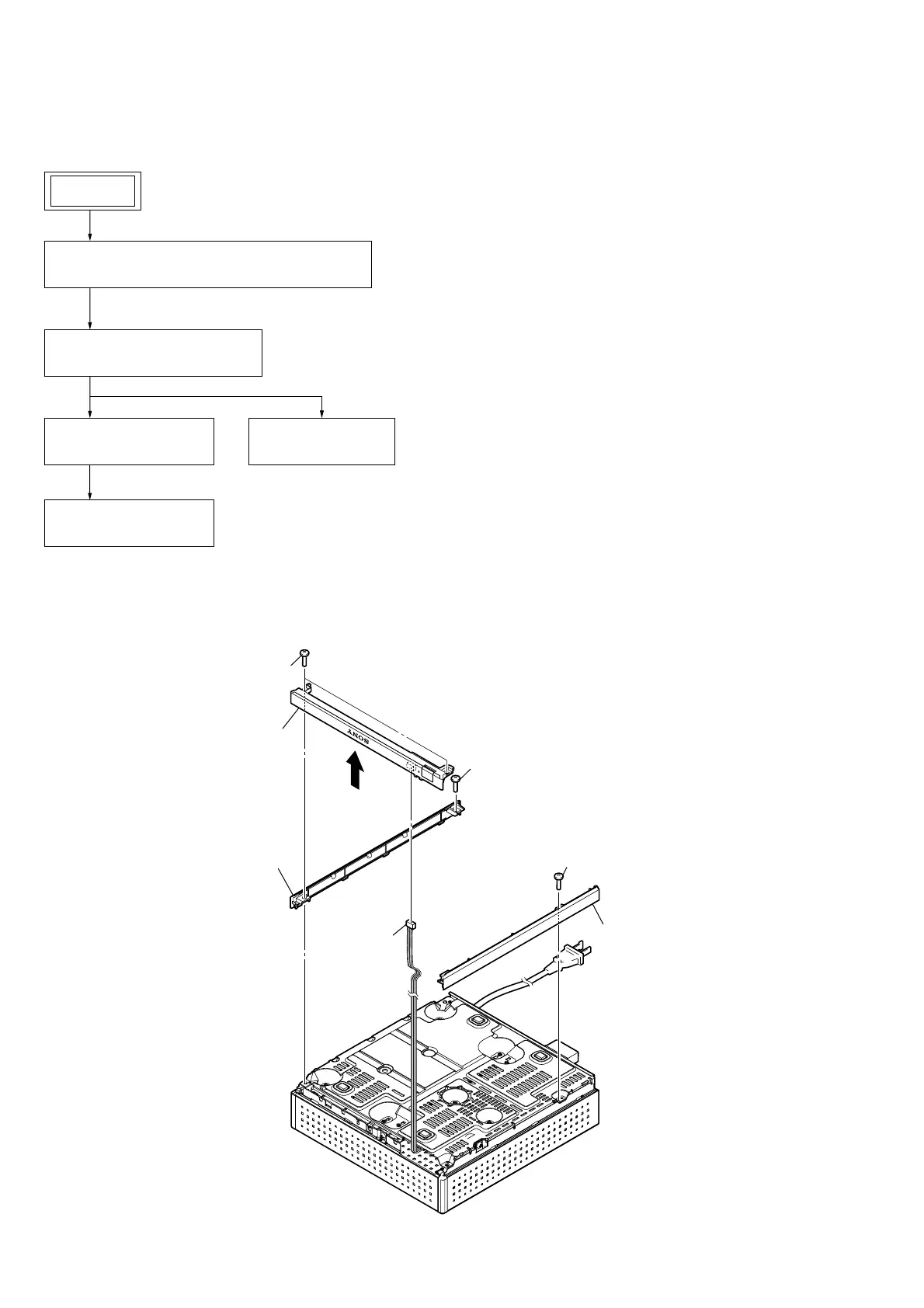

• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. FRONT PANEL BLOCK, BOTTOM PANEL (L)/(R)
2-5. WLK4 MAIN BOARD
(Page 8)
2-6. POWER BOARD
(Page 8)
2-4. WLK4-TERM BOARD
(Page 7)
SET
2-3. CASE (WLK4), FUSE (F900)
(Page 7)
2-2. FRONT PANEL BLOCK, BOTTOM PANEL (L)/(R)
(Page 6)
