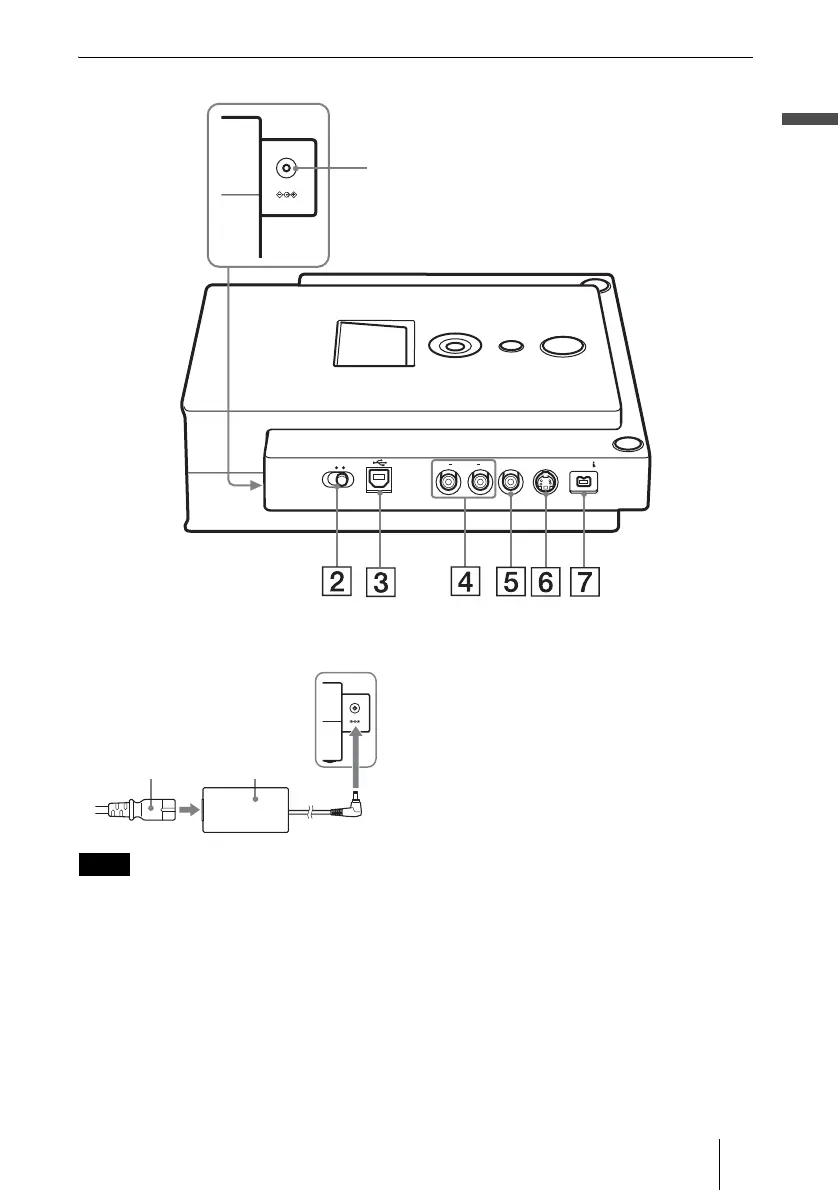

Left side panel
A DC IN jack
Connect the supplied AC power adaptor.
Note
• Be sure to use the supplied power cord.
• Do not use damaged cables, such as cables with
deformed connectors.
B Mode switch
Switch to [PC/PRINT] when connecting
a printer or computer.
C USB connector
Connect the supplied USB cable when
connecting DVDirect to a computer or
printer.
D AUDIO IN L/R connectors
Connect the audio plugs of an AV cable
(not supplied) when connecting
DVDirect to a video device, such as a
video camera or VCR.
E VIDEO IN connector
Connect the video plug of an AV cable
(not supplied) when connecting
DVDirect to a video device, such as a
video camera or VCR.
F S VIDEO IN connector
Connect an S VIDEO cable (not
supplied) when connecting DVDirect to
a video device with an S VIDEO jack,
such as a video camera or VCR.
G DV IN connector (4-pin)
Connect a DV (i.LINK) cable (not
supplied) when connecting DVDirect to
a digital video camera*.
* For DV/Digital8 camcorder input only.
DC 12V IN
STANDALONE PC/PRINT
R AUDIO IN VIDEO IN S VIDEO IN
DV IN
L
1
DC 12V IN
Power
cord
AC adaptor
