SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

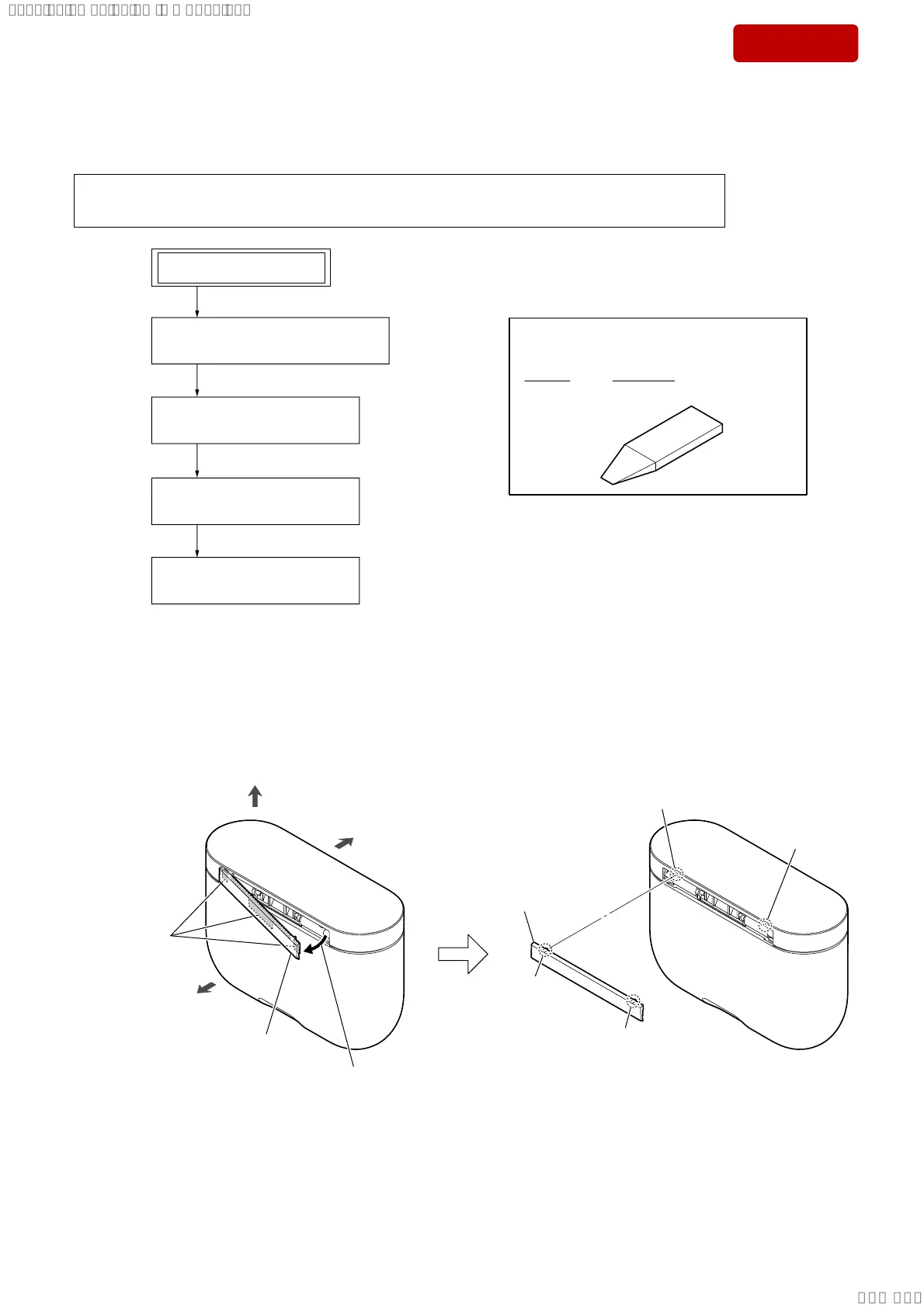

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. ORNAMENT HINGE ASSY
SET (CHARGING CASE)
2-4. INDICATOR LED
(Page 21)
2-3. CASE INNER BLOCK
(Page 20)
2-2. ORNAMENT HINGE ASSY
(Page 19)
2-5. CASE NFC BOARD
(Page 21)

JIG
When disassembling the unit, use the following jig.
Part No. Description
9-913-402-33 TOOL FOR DISASSEMBLING
Note:
It is necessary to disassemble the charging case only when repairing and replacing the left side headset (WF-1000XM3L).
This section only describes how to remove the CASE NFC board.
For details, refer to “REPAIRING AND REPLACING OF THE LEFT SIDE HEADSET (WF-1000XM3L)” on page 7.
1 Remove the ornament hinge
assy while slowly peeling off
the adhesive sheet ornament.
2 ornament hinge assy
Note:
When installing the ornament
hinge assy, align the two bosses
and two holes.
boss
hole
ornament
hinge assy
rear side
top side
boss
hole
front side
adhesive sheet
ornament
SYSSET
2020/04/0306:12:21(GMT+09:00)

Sony WF-1000XM3 Series Specifications

General

Type	True Wireless
Bluetooth Version	5.0
Driver Unit	6mm
Charging Time (Earbuds)	Approx. 1.5 hours
Charging Time (Charging Case)	Approx. 3.5 hours
Quick Charging	10 min charge for 90 min playback
Weight (Charging Case)	Approx. 77g
Touch Controls	Yes
Frequency Response	20 Hz - 20, 000 Hz (44.1 kHz Sampling)
Bluetooth Profiles	A2DP, AVRCP, HFP, HSP
Audio Codec	SBC, AAC
Water Resistance	No
NFC	Yes
Microphone	Yes
Compatibility	Android, iOS
Noise Cancellation	Active Noise Cancellation
Battery Life (Earbuds)	Up to 6 hours
Battery Life (Charging Case)	Up to 24 hours (with ANC on), up to 32 hours (with ANC off)
Weight (Earbuds)	Approx. 8.5g each
Voice Assistant Support	Google Assistant, Amazon Alexa
Wireless Range	30 ft (10 m)
