WH-XB900N
11
Sony CONFIDENTIAL
For Authorized Servicer

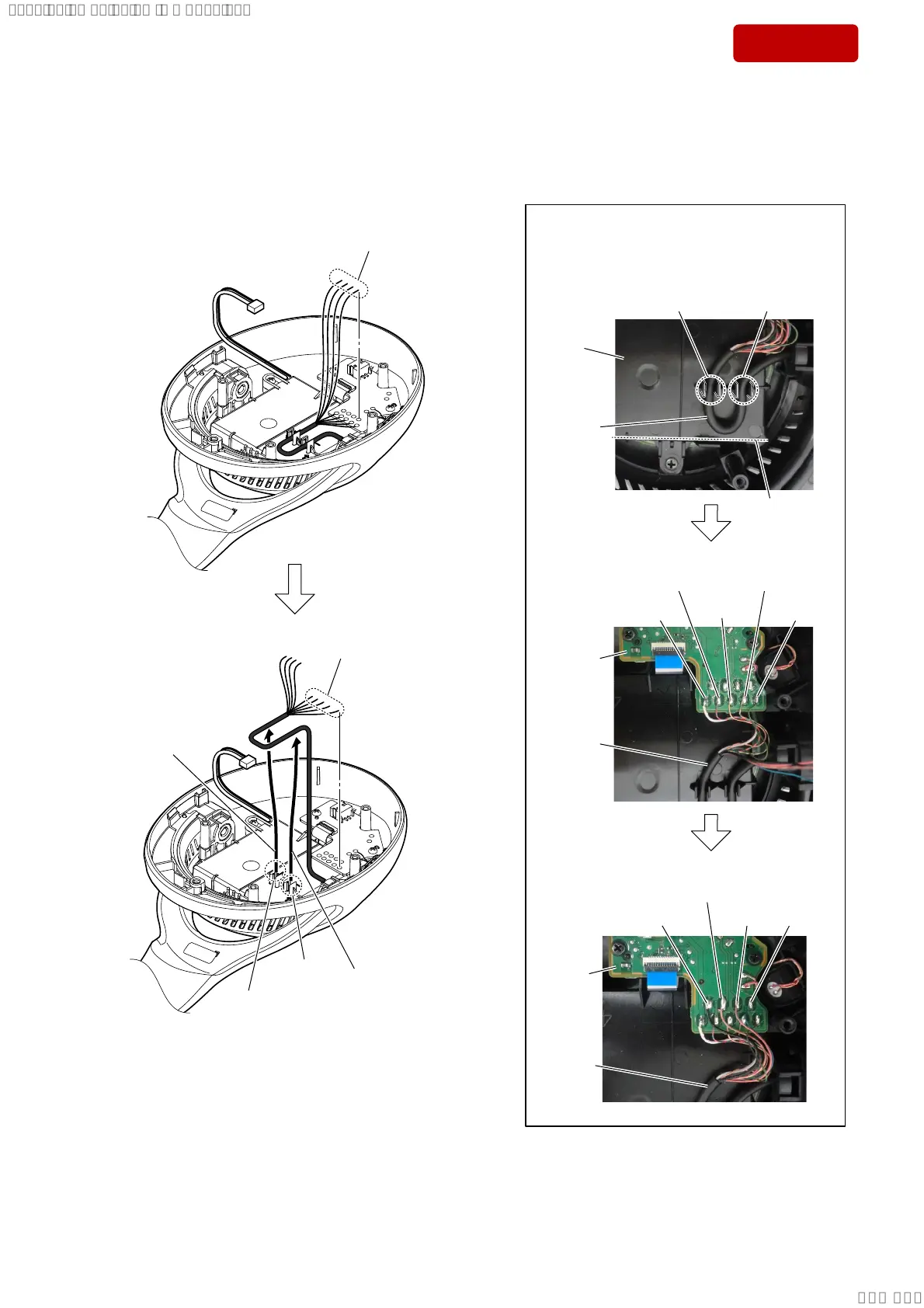

2-5. R SUB BOARD-1 (R-ch)
• Continued on 2-6 (page 12).
XXXXXXX
XXXXXXX
2 Remove five solders
of the relay cable.
(See Fig. C)
battery
holder
5HOD\FDEOHVHWWLQJ
)LJ'!
)LJ&!
)LJ%!
–5FK–
relay cable
R SUB
board
groove
groove
relay cable
R SUB
board
relay cable
[green]
[natural]
[red/blue]
[natural/green]
[white]
[blue]
[red]
[black]
1 Remove four solders
of the relay cable.
(See Fig. B)
groove
groove
3 Draw the relay cable
out of the groove.
(See Fig. D)
3 Draw the relay cable
out of the groove.
(See Fig. D)
[natural/red]
guide line
2 Soldering the five wires.
Attach in order from 1 to 3.
3 Soldering the four wires.
1 Press the relay cable in the two grooves.
Note:
Arrange so that the relay cable does not
exceed the guide line.
SYSSET
2019/05/1702:12:00(GMT+09:00)
To Next Page
