Sony WH-XB900N Service Manual

18
WH-XB900N
Sony CONFIDENTIAL
For Authorized Servicer
SECTION 3
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when or-
dering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Exam-
ple:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color

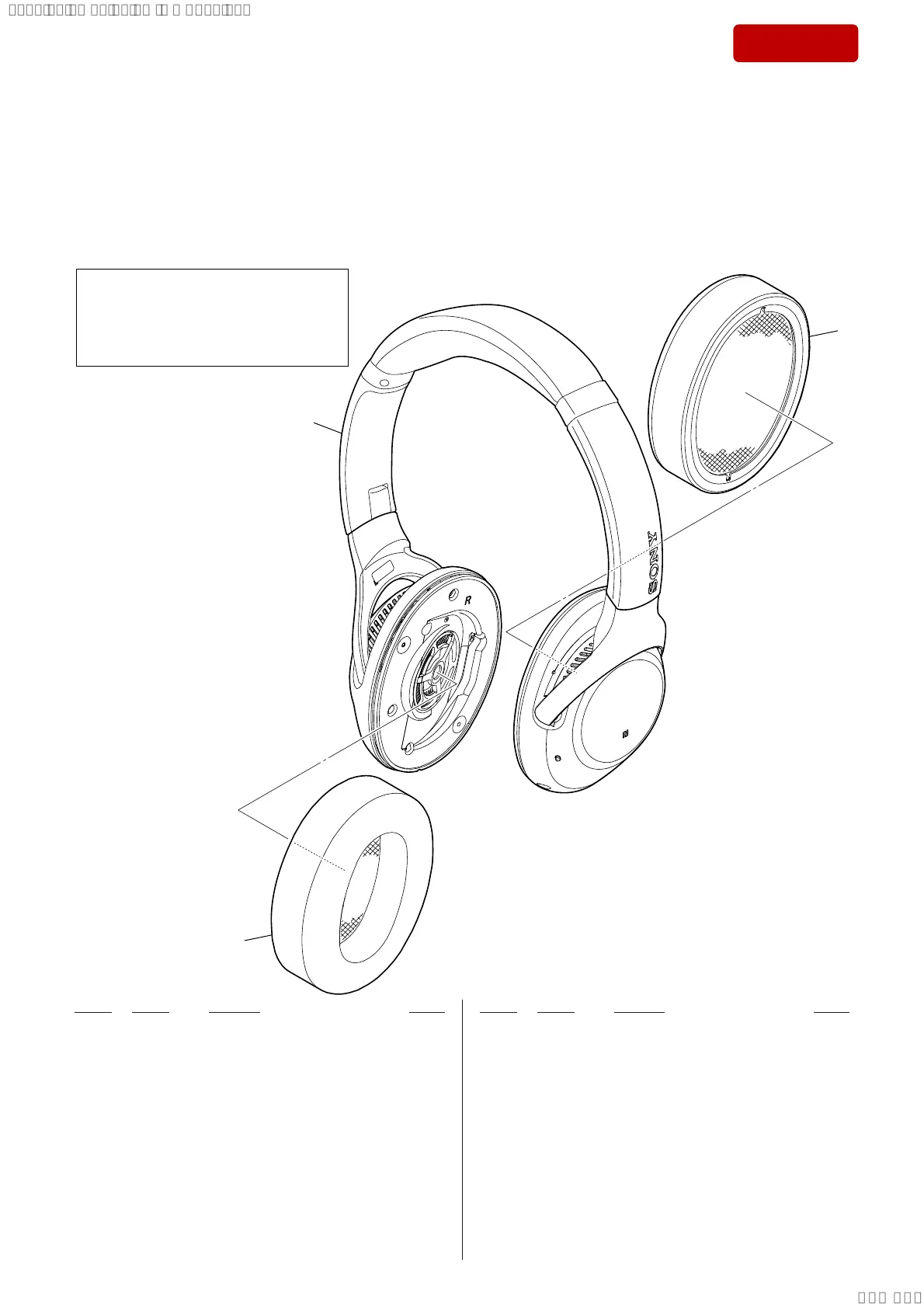

3-1. EAR PAD, HEADPHONE SECTION
XXXXXXX
HPN1
(Refer to pages 19 and 20)
(See Note)
1
– L-ch –
– R-ch –
1
Note:
The headphone assy (Ref. No. HPN1) can be
disassembled. For the right housing block,
refer to page 19, for the left housing block
and headband block, refer to page 20.
Also, the serial number will change when the
headphone assy is replaced.
1 500044901 PAD, EAR (for Black)
1 500044911 PAD, EAR (for Blue)
1 500044921 PAD, EAR (for Gray) (US, CND, PX, LA)
HPN1 A5006783A HEADPHONE ASSY, SVX BC
(Including Headband block, Right and Left housing
block) (for Black) (US, CND, PX, LA) (See Note)
HPN1 A5006784A HEADPHONE ASSY, SVX LC
(Including Headband block, Right and Left housing
block) (for Blue) (US, CND, PX, LA) (See Note)
HPN1 A5006785A HEADPHONE ASSY, SVX HC
(Including Headband block, Right and Left housing
block) (for Gray) (US, CND, PX, LA) (See Note)
HPN1 A5006788A HEADPHONE ASSY, SVX BC
(Including Headband block, Right and Left housing
block) (for Black) (AEP, UK) (See Note)
HPN1 A5006789A HEADPHONE ASSY, SVX LC
(Including Headband block, Right and Left housing
block) (for Blue) (AEP, UK) (See Note)
HPN1 A5006790A HEADPHONE ASSY, SVX BC
(Including Headband block, Right and Left housing
block) (for Black) (E, AUS, RU, IND) (See Note)
HPN1 A5006791A HEADPHONE ASSY, SVX LC
(Including Headband block, Right and Left housing
block) (for Blue) (E, AUS, RU, IND) (See Note)
HPN1 A5006792A HEADPHONE ASSY, SVX BC
(Including Headband block, Right and Left housing
block) (for Black) (CH) (See Note)
HPN1 A5006793A HEADPHONE ASSY, SVX LC
(Including Headband block, Right and Left housing
block) (for Blue) (CH) (See Note)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Refer to “COLOR VARIATIONS” on page 4
about color variation of the unit.
SYSSET
2019/05/1702:12:00(GMT+09:00)

Sony WH-XB900N Specifications

General

Impedance	50 Ω
Driver type	Dynamic
Driver unit	40 mm
Magnet type	Neodymium
Ear coupling	Circumaural
Diaphragm material	Polyethylene terephthalate (PET)
Headphone frequency	2 - 20000 Hz
Headphone sensitivity	101 dB
Cable length	1.2 m
Headset type	Binaural
Product type	Headset
Product color	Black
Wearing style	Head-band
Volume control	Touch
Detachable cable	Yes
Country of origin	China
Recommended usage	Calls/Music
Works with Amazon Alexa	-
Frequency band	2.4 - 2.4835 GHz
Wireless range	10 m
Bluetooth version	4.2
Bluetooth profiles	A2DP, AVRCP, HFP, HSP
Connectivity technology	Wired & Wireless
Battery recharge time	7 h
Continuous audio playback time	35, 300 h
Number of products included	1 pc(s)
Microphone type	Built-in
Package type	Box
Package depth	88 mm
Package width	240 mm
Package height	200 mm
Package weight	723 g
Harmonized System (HS) code	85183000

Weight and Dimensions

Depth	80 mm
Width	220 mm
Height	180 mm
Weight	260 g
