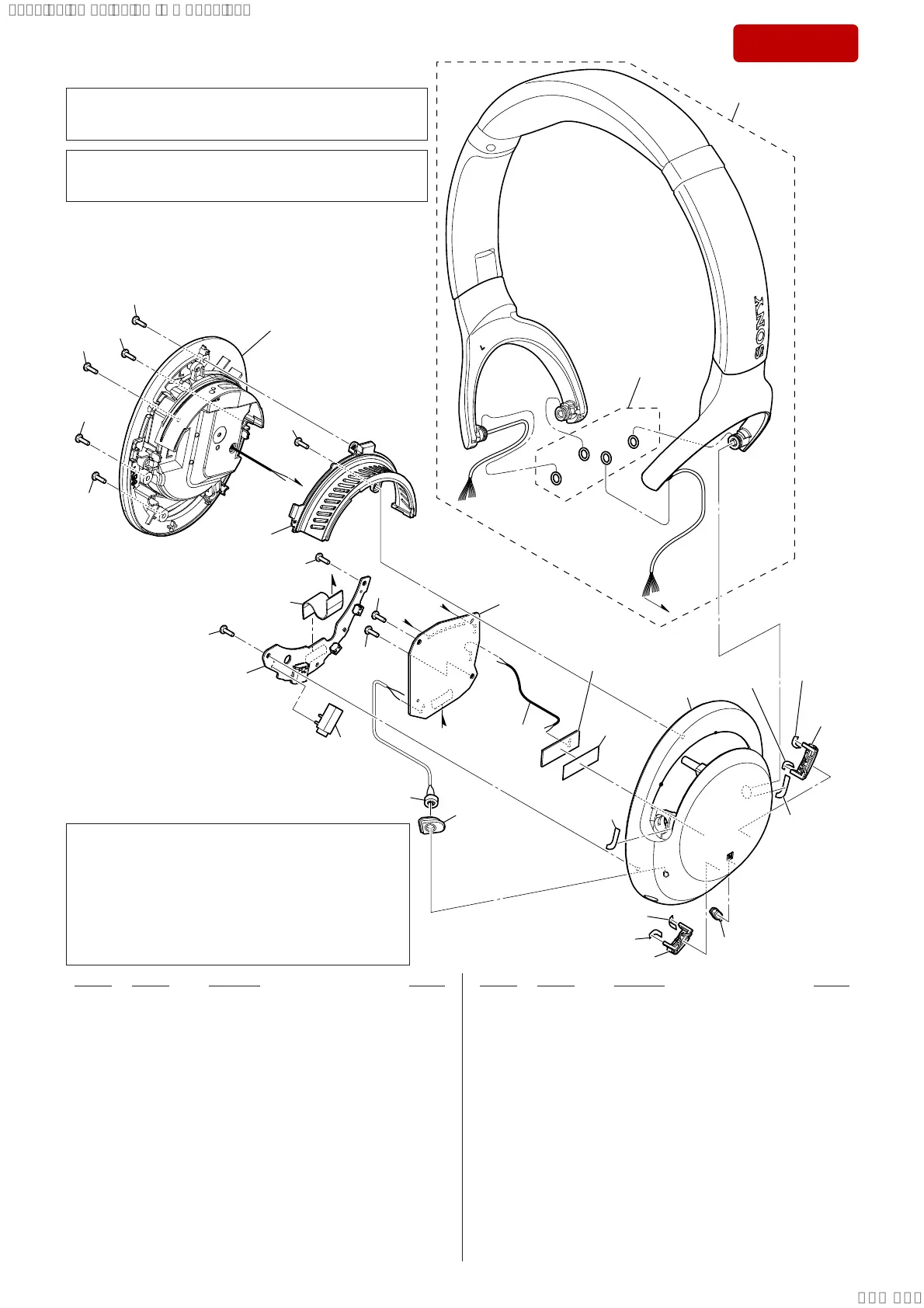

3-3. LEFT HOUSING, HEADBAND SECTION
– L-ch –
E
E
D
– R-ch –
D
F
F
101
not supplied
(front plate (L) block)
(See Note 3)
not supplied
(electret cap
microphone)
(See Note 3)
not
supplied
102
102
102
102
102
102
102
102
102
102
not supplied
not supplied
HB1
(See Note 2)
103
(See Note 1)
not supplied
(L MAIN board)
(See Note 3)
not supplied
(L NFC board)
(See Note 3)
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
not supplied
FFC2
J01
Note 1: Lubricant is applied to the SVX BC Oring (Ref. No. 103).
Be careful when handling the parts.
Also, it becomes parts for repair with 1 set of 4 pieces.
Note 2: When the SVX headband assy (Ref. No. HB1) is replaced,
peel off the serial number label from the faulty headband
assy and attach it to the new headband assy.
Note 3: The front plate (L) block is disassembly prohibition.
Also, the L MAIN board (this page), L NFC board (this
page), electret cap microphone (this page or page 19),
front plate (L) block (this page) and front plate (R) block
(page 19) have proper combinations and cannot be re-
paired and replaced individually.
If the L MAIN board, L NFC board, electret cap micro-
phone or front plate (L) block malfunctions, replace the
SVX headphone assy (Ref. No. HPN1: page 18).
101 A2223621A L JACK BOARD, COMPLETE
102 325405821 SCREW (2.0X5.0 mm)
103 A5006809A ORING, SVX BC (Included in Ref. No. HB1)
(Applied Lubricant, 4 pieces 1 set) (See Note 1)
FFC2 100160711 FLEXIBLE FLAT CABLE (20 CORE)
HB1 A5006794A HEADBAND ASSY, SVX BC
(Including Relay cable, Slider lower) (for Black)
(US, CND, PX, LA) (See Note 2)
HB1 A5006795A HEADBAND ASSY, SVX LC
(Including Relay cable, Slider lower) (for Blue)
(US, CND, PX, LA) (See Note 2)
HB1 A5006796A HEADBAND ASSY, SVX HC
(Including Relay cable, Slider lower) (for Gray)
(US, CND, PX, LA) (See Note 2)
HB1 A5006799A HEADBAND ASSY, SVX BC
(Including Relay cable, Slider lower) (for Black)
(AEP, UK) (See Note 2)
HB1 A5006800A HEADBAND ASSY, SVX LC
(Including Relay cable, Slider lower) (for Blue)
(AEP, UK) (See Note 2)
HB1 A5006801A HEADBAND ASSY, SVX BC
(Including Relay cable, Slider lower) (for Black)
(E, AUS, RU, IND) (See Note 2)
HB1 A5006802A HEADBAND ASSY, SVX LC
(Including Relay cable, Slider lower) (for Blue)
(E, AUS, RU, IND) (See Note 2)
HB1 A5006803A HEADBAND ASSY, SVX BC
(Including Relay cable, Slider lower) (for Black) (CH)
(See Note 2)
HB1 A5006804A HEADBAND ASSY, SVX LC
(Including Relay cable, Slider lower) (for Blue) (CH)
(See Note 2)
J01 184467211 JACK (Headphone jack)
