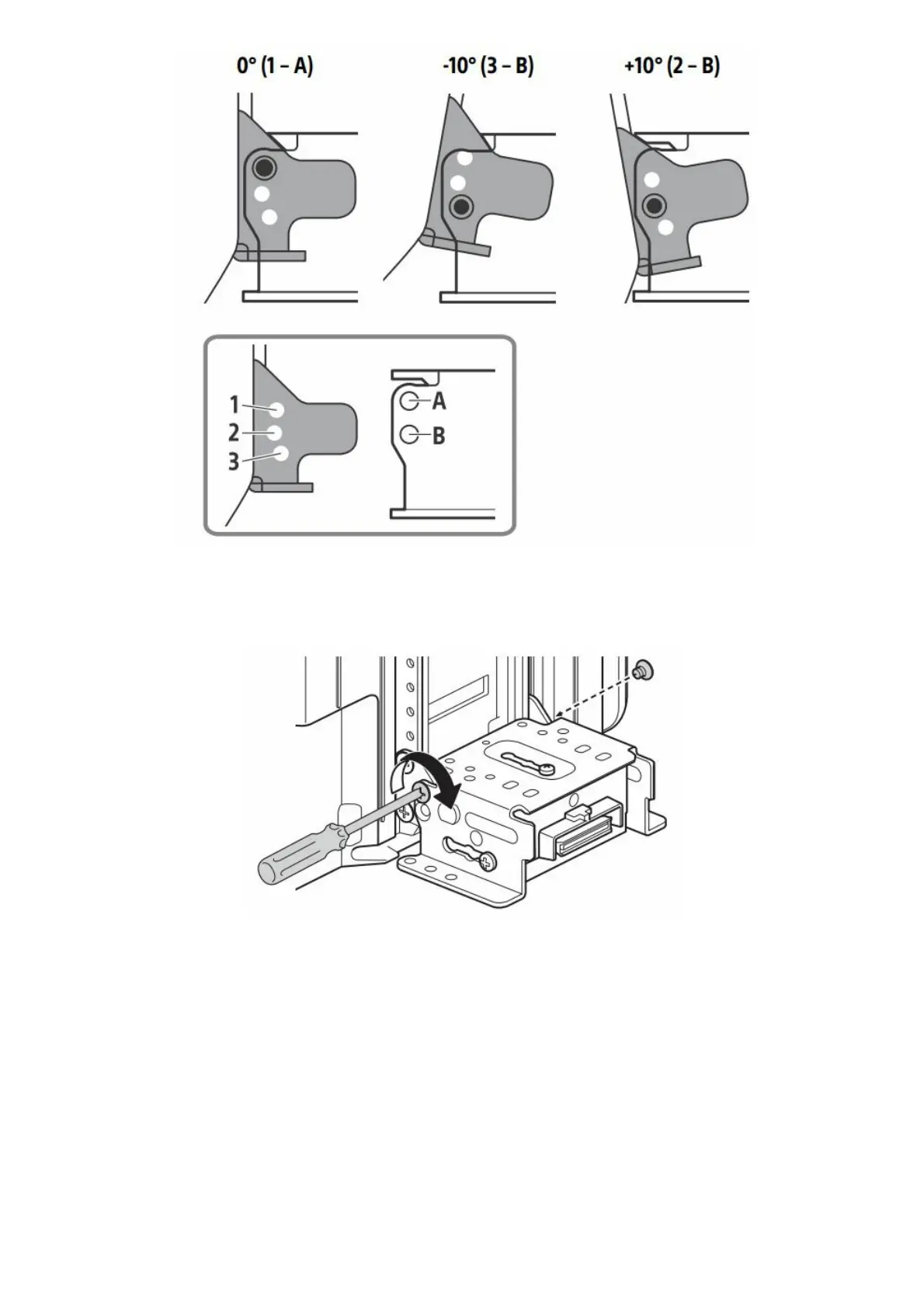

3 At the desired angle, tighten the 2 screws through the screw holes (upper or lower) that match the
display angle.
Tighten the screws firmly. When you tighten a screw, be careful not to apply too much torque as doing so may
damage the screw (the torque value should be less than 1.5 N·m).
Making sure the mounting positions of the display
Be careful not to pinch your fingers or scratch the center cluster panel of your car when attaching the display to the
unit.
1 Attach the display to the unit temporarily.
To Next Page
