 (*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated when
ordering these components.
 Picture provided in this section might have slight difference from the actual sets.
 The reference number beside the part indicates the disassembly sequence.
 Remove screws before disassembly. Unplug connectors before disassembly
• Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
• and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are repaired and/or replaced

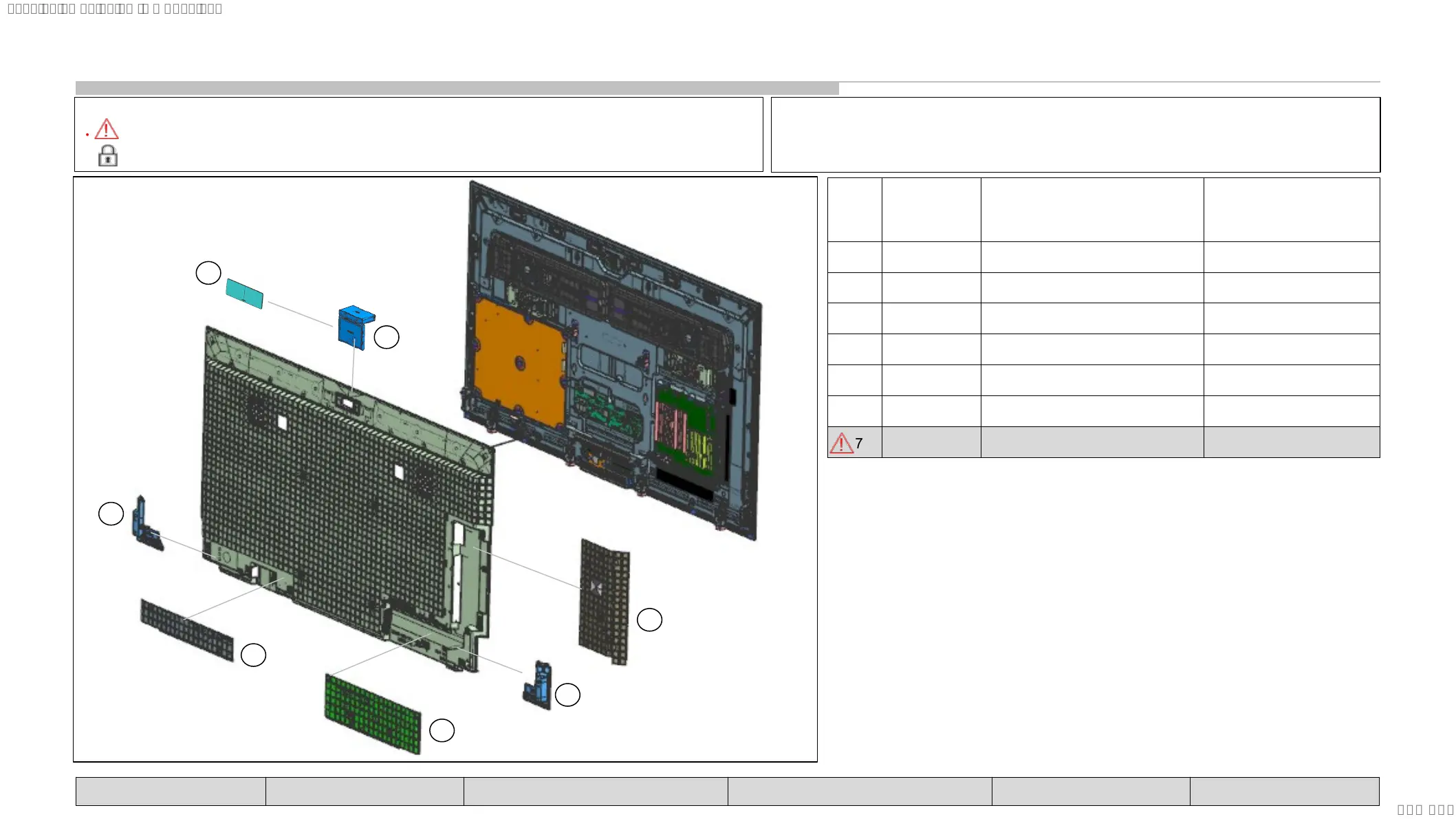

1-4. EXPLODED VIEW AND PART LIST
1
7
SECTION 1: XR-55A95K
REF.
NO
PART NO. DESCRIPTION REMARKS
1
5-034-190-01
COVER, STAND L (L DER)
-
2
5-034-191-01
COVER, STAND R (L DER)
-
3
5-034-200-01
COVER, UNDER (L DER)
Under Terminal Cover
4
5-034-202-02
COVER, SIDE (L DER)
Side Terminal Cover
5
5-034-204-01
COVER, AC (L DER)
AC Cord Cover
6
5-034-738-01
COVER, CM CNCT (DER)
-
7
1-013-457-11
CAMERA MODULE (MAGNET)
-
2
3
4
5
6
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SMART CORE APPENDIX
SYSSET
2023/12/2105:26:50(GMT+09:00)

Sony XR-55A95K Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	55 \
Display brightness	- cd/m²
Display technology	QD-OLED
Native aspect ratio	-
Native refresh rate	120 Hz
Display diagonal (metric)	139 cm
Product color	Black
Rollable display	No
Panel mounting interface	300 x 300 mm
Package depth	194 mm
Package width	1360 mm
Package height	828 mm
Package weight	40000 g
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Browser supported	Vewd
Bluetooth profiles	A2DP, AVRCP, HID, HOGP, SPP
HDMI ports quantity	4
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	BRAVIA Sync
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Sound modes	Cinema, Dialog, Dolby Audio, Music, Sports, Standard
Audio decoders	DTS, Dolby Atmos
RMS rated power	60 W
Game features	Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR)
Picture processing technology	Sony Dynamic Contrast Enhancer, Sony Live Colour, Sony TRILUMINOS Display, Sony XR Smoothing, Sony XR Super Resolution
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
App distribution platform	Google Play
Operating system installed	Android
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Tuner type	Analog & digital
Number of tuners	2 tuner(s)
Analog signal format system	PAL I, SECAM B/G, SECAM D/K
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Repairability index	6.6

Weight and Dimensions

Depth (with stand)	280 mm
Height (with stand)	728 mm
Depth (without stand)	43 mm
Width (without stand)	1225 mm
Height (without stand)	714 mm
Weight (without stand)	21200 g
