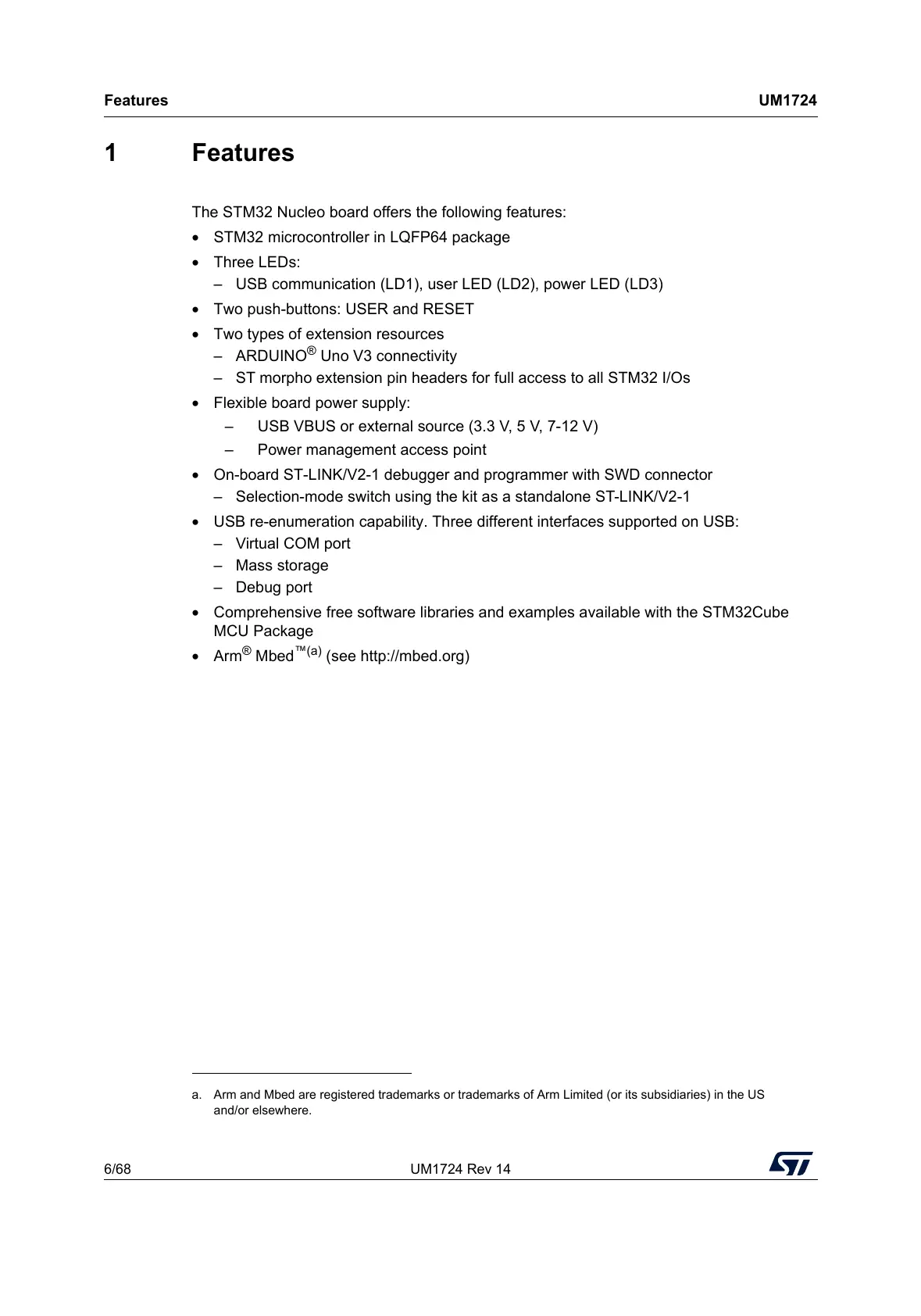

1 Features
The STM32 Nucleo board offers the following features:
• STM32 microcontroller in LQFP64 package
• Three LEDs:
– USB communication (LD1), user LED (LD2), power LED (LD3)
• Two push-buttons: USER and RESET
• Two types of extension resources
– ARDUINO
®
Uno V3 connectivity
– ST morpho extension pin headers for full access to all STM32 I/Os
• Flexible board power supply:
– USB VBUS or external source (3.3 V, 5 V, 7-12 V)
– Power management access point
• On-board ST-LINK/V2-1 debugger and programmer with SWD connector
– Selection-mode switch using the kit as a standalone ST-LINK/V2-1
• USB re-enumeration capability. Three different interfaces supported on USB:
– Virtual COM port
– Mass storage
– Debug port
• Comprehensive free software libraries and examples available with the STM32Cube
MCU Package
• Arm
®
Mbed
™(a)
(see http://mbed.org)
a. Arm and Mbed are registered trademarks or trademarks of Arm Limited (or its subsidiaries) in the US
and/or elsewhere.
